New NanoVNA-F V3 Vector Network Analyzer 1MHz-6GHz 4.3 Inch HF VHF UHF VNA Antenna Analyzer Measuring S-Parameter Voltage SWR

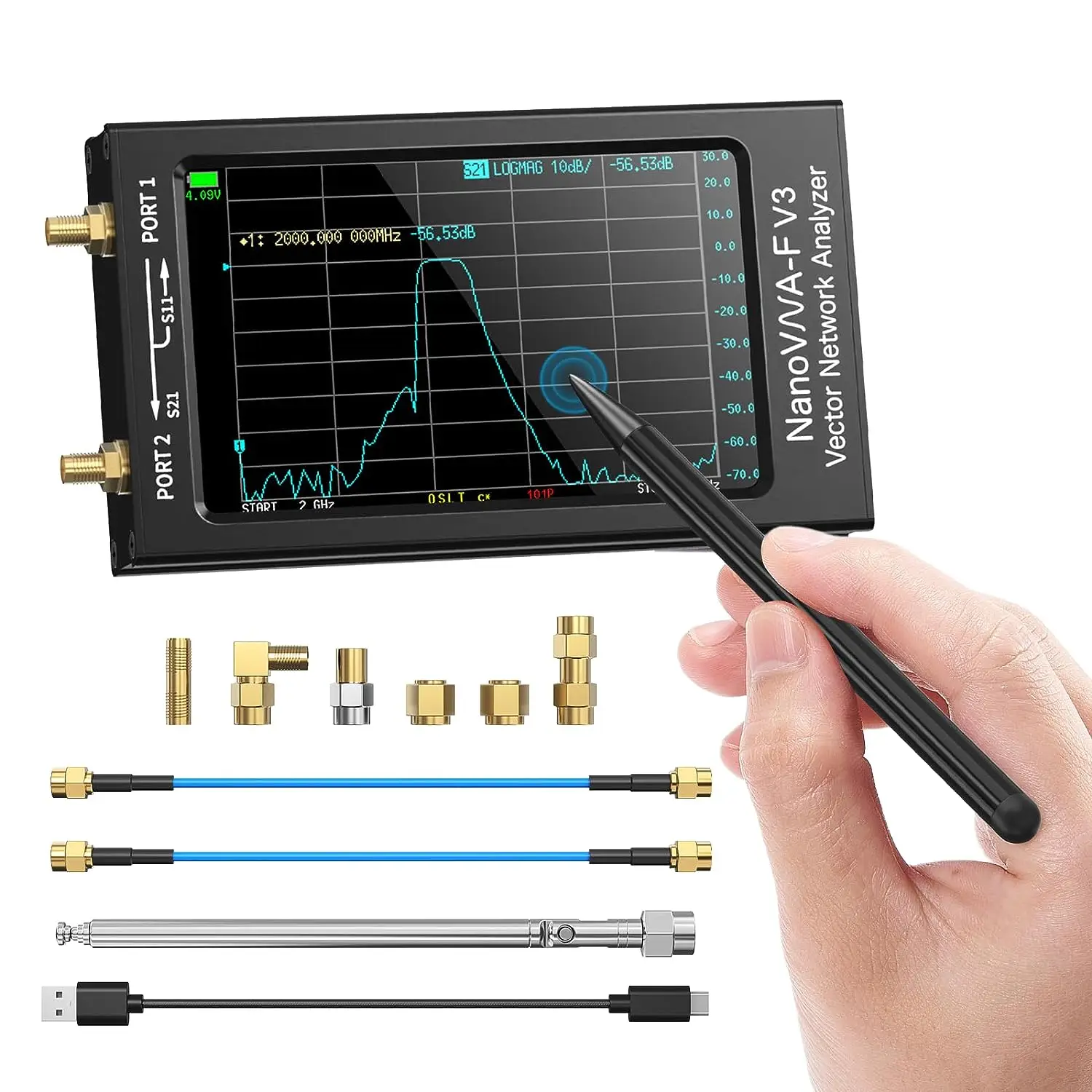

• 【Improved Performance】:This NanoVNA-F V3 vna analyzer is a new production machine from 2023, with 4.3 inch 800 x 480 large touchscreen display, 1MHz to 6GHz widely measuring range, the scan speed of NanoVNA-F V3 is up to 200 points/s and the maximum scanning points is up to 801.In addition, the nanovna analyzer supports TDR function which is useful for cable lengths measurement.

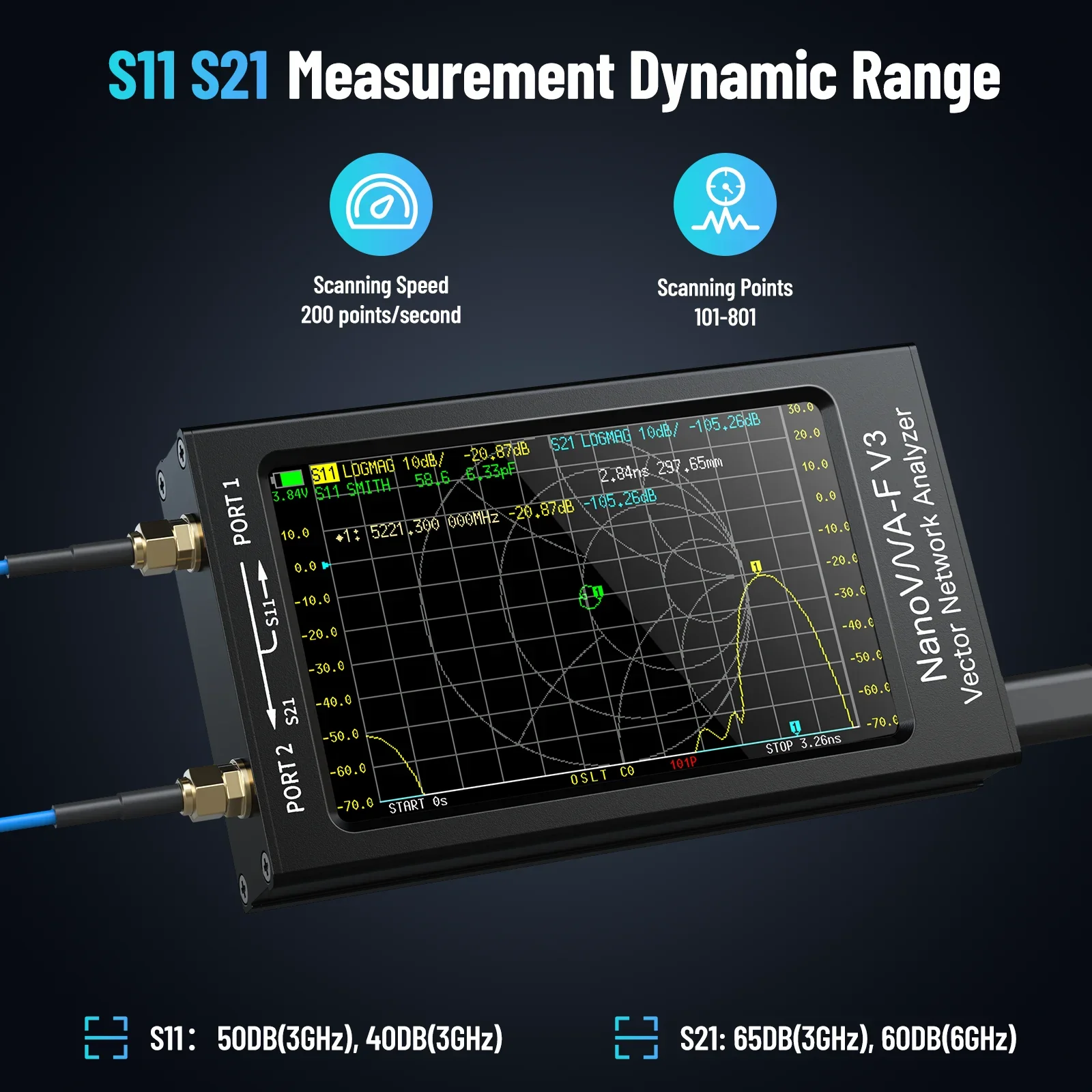

• 【Widely Frequency Range】:Compared to the Nanovna-F V2 (50kHz-3GHz), the upgraded Nanovna-F V3 has 1MHz-6GHz ultra-wide measuring frequency range, The S21 dynamic range of NanoVNA-F V3 is 65 dB, while the S11 dynamic range is 50 dB. The scan points is up to 101-801 and the calibration result storage is 12, covering up to the full low or high frequency range. Faster and more accurate measurement performance, you can easily cope with measurement testes in various fields.

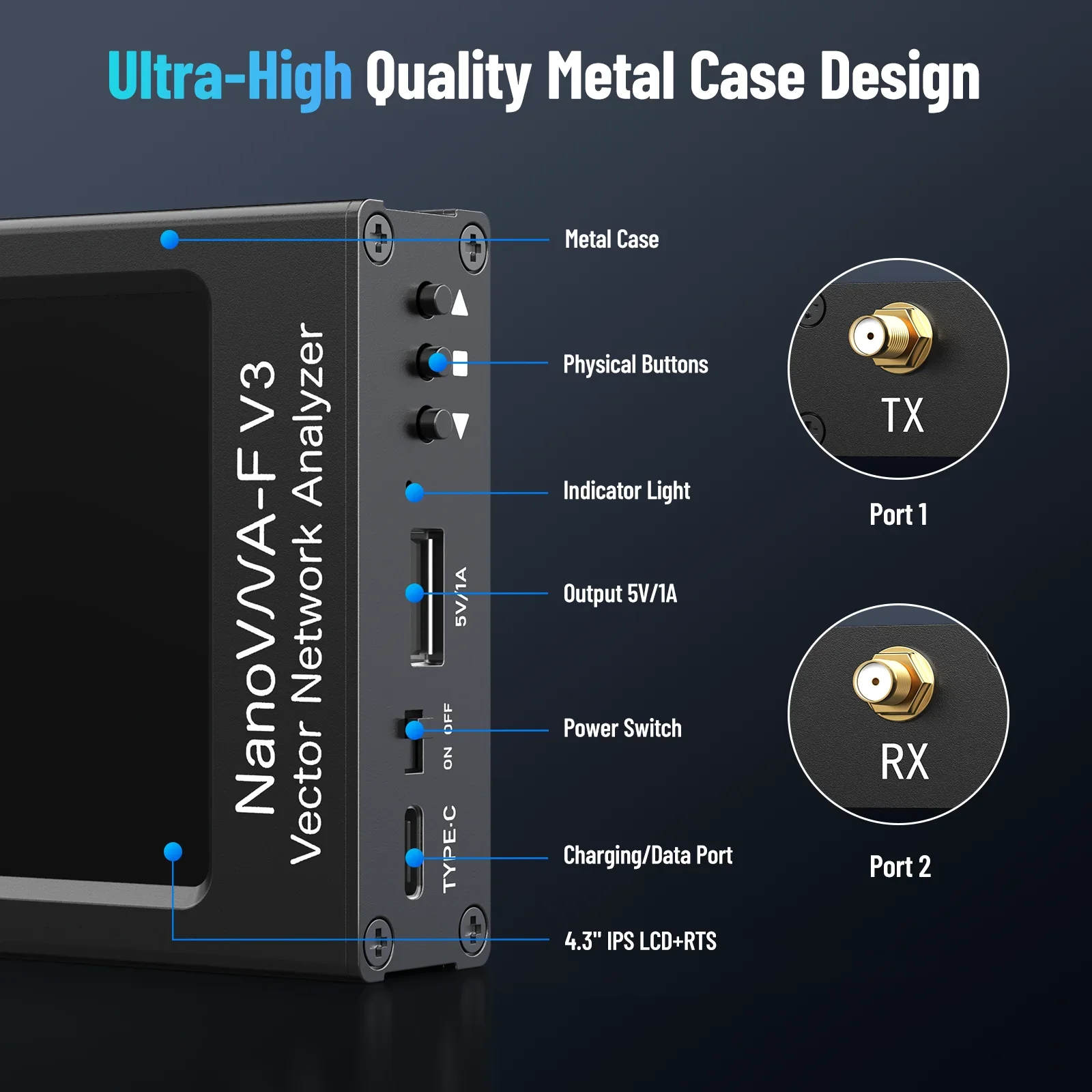

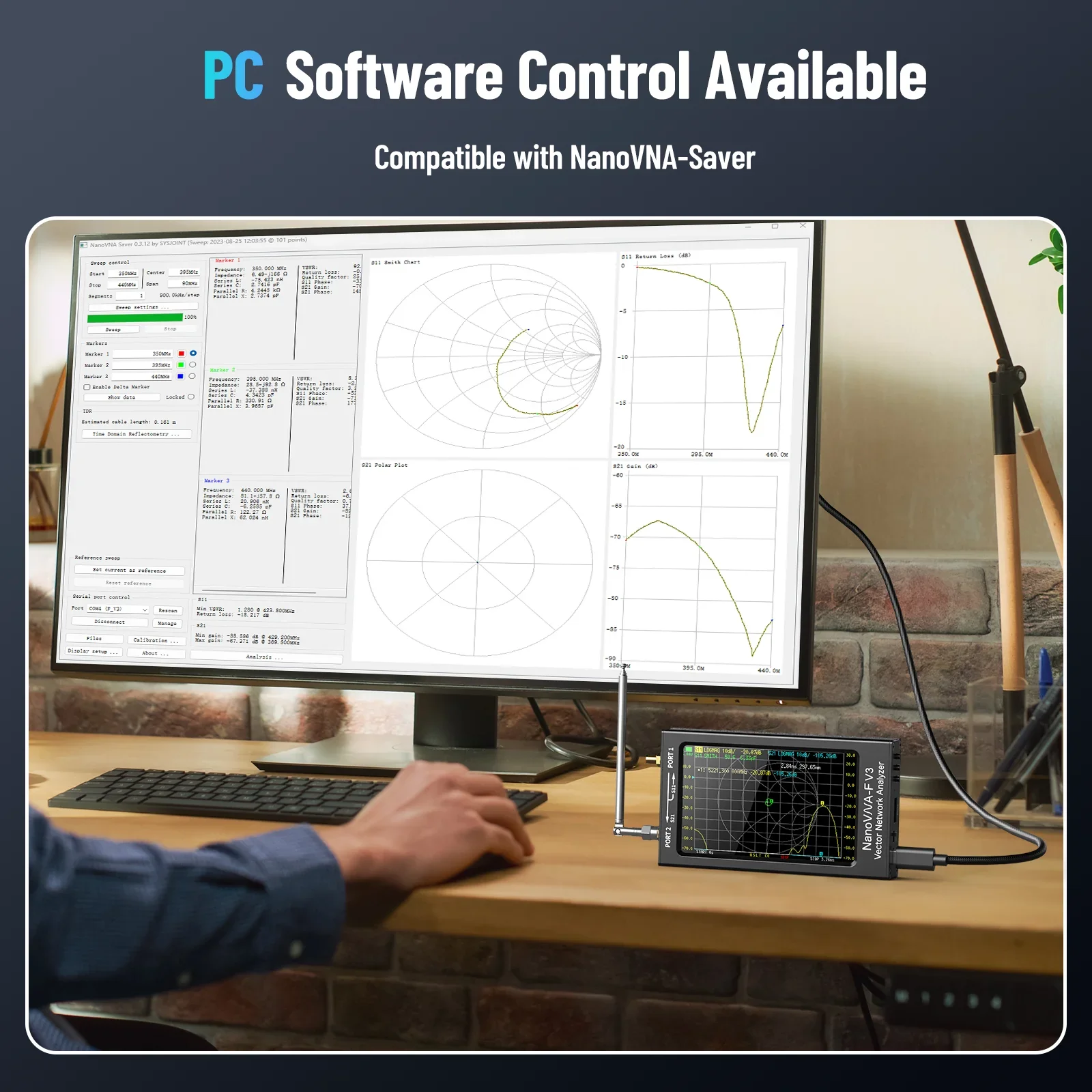

• 【Trustworthy Quality】:This nano vna analyzer measuring tool is made of metal material, which is durable and can effectively shield electromagnetic interference. With SMA connector design which can be used to connect DUTs directly.In addition,it is support PC Software control and compatible with NanoVNA-Saver for convenient measurement data transfer.Built-in 4500m-ah rechargeable battery,with type-C charging cable and LED charging indicator,it can be fully charged within 3 hours,no need to char

• ️【Multiple Measurement Functions】: SeeSii NanoVNA-F V3 antenna analyzer is suitable for antenna testing of MF/HF/VHF/UHF/SHF bands. Supports a variety of display formats: Log Mag, Linear Mag, Phase, Smith R+jX, Smith R+L/C, VSWR, Polar, Group delay, Resistance, Reactance, etc. It can also be used to measure filters, amplifiers, attenuators, cables, power dividers, couplers, duplexers and other RF components. For the amateur radio operator or radio enthusiast, this latest vna antenna analyzer

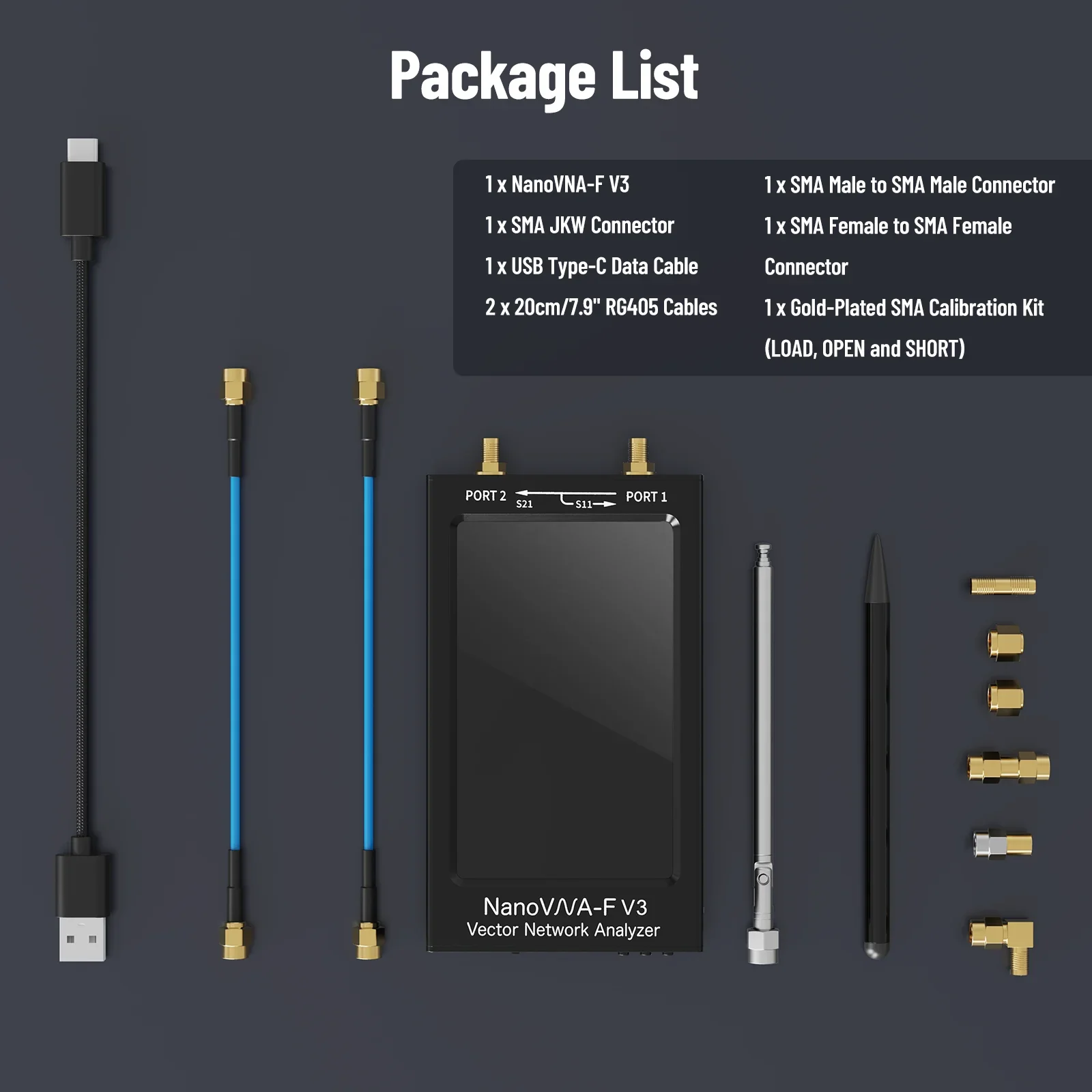

Packing List:

1 x NanoVNA-F V3,

1 x Gold-Plated SMA Calibration Kit (LOAD, OPEN and SHORT),

1 x SMA Female to SMA Female Connector,

1 x SMA Male to SMA Male Connector,

1 x SMA JKW Connector,2 x 20cm/7.9" RG405 Cables,

1 x USB Type-C Data Cable
