ATS25 ULTRA FM SW SSB MW LW AIR SDR Receiver Aviation Band Receiver Supports Bluetooth WiFi with 4-inch Touch Screen
ATS25 ULTRA FM SW SSB MW LW AIR SDR Receiver Aviation Band Receiver Supports Bluetooth WiFi with 4-inch Touch Screen
Description:
- HamGeek ATS25 ULTRA is an upgraded product based on ATS25PRO+. Both machines have many similarities, such as a frequency of VHF 118MHz-214MHz, without HIZ, and all the functions of 4.2 are complete. The main difference is that ATS25 ULTRA is handheld with a 4-inch touch screen and the performance has been optimized.
Features:
- Built in WiFi antenna, the detector is located on the side of the body, eliminating the need for bulky external antennas.
- Electronic button ignition (no need to use the easily worn and replaceable mini switch like the old ATS25).
- Equipped with a 4-inch display screen, not only does it improve the clarity and readability of screen control, but it is also extremely practical when decoding digital signals.
- Equipped with a 5000mAH battery (built-in charging circuit), its main function is to supply power to all functions of the receiver that require high current, preventing overload of the receiver, especially when decoding SSTV and Wefax images at high volume.
- The front of the body is equipped with high-quality speakers, providing excellent audio playback effects. Technical and structural measures have been taken to minimize interference and RF noise generated by inter chip I2C communication and data transmission with displays.
Brief Functions:
- Precaution: The firmware has been activated because the license and activation key have been inserted (so you do not need to purchase the cipher).
- The covered frequency bands include long wave (LW), medium wave (MW), and short wave (SW) (0-30MHz high frequency, divided into amateur radio frequency band and broadcast frequency band, all of which are continuously covered); Commercial frequency modulation (FM) band from 65 to 108MHz.
- The very high frequency (VHF) band (30.001 to 280.000MHz) distinguishes between amateur radio band, aviation band, maritime band, 6-meter band, and 2-meter band, and can continuously cover the entire frequency range.
- All receiving frequency bands can be demodulated, including AM, USB, LSB, CW, FM, NFM, and DIGI modes (CW to left, RTTY to left 45/50/75 baud, FT8/FT4, FELDHELL, PSK31/63, SSTV, WEFAX567-288, etc., 120-240 lines).
- It is equipped with a low-noise amplifier (LNA) that can be activated as needed, with extremely high efficiency.
- It is equipped with a Bluetooth circuit that can be used in conjunction with an external amplifier system and can be activated as needed.
Frequency Range:
- FM: 64MHz - 108MHz/RDS function
- LW: 153kHz - 500kHz
- Power: 520kHz - 1710kHz
- Shortwave: 1730kHz - 30000kHz
- Single sideband: 1730kHz - 30000kHz
- Air: 118MHz - 138MHz AM
- VHF: 118MHz - 214MHz

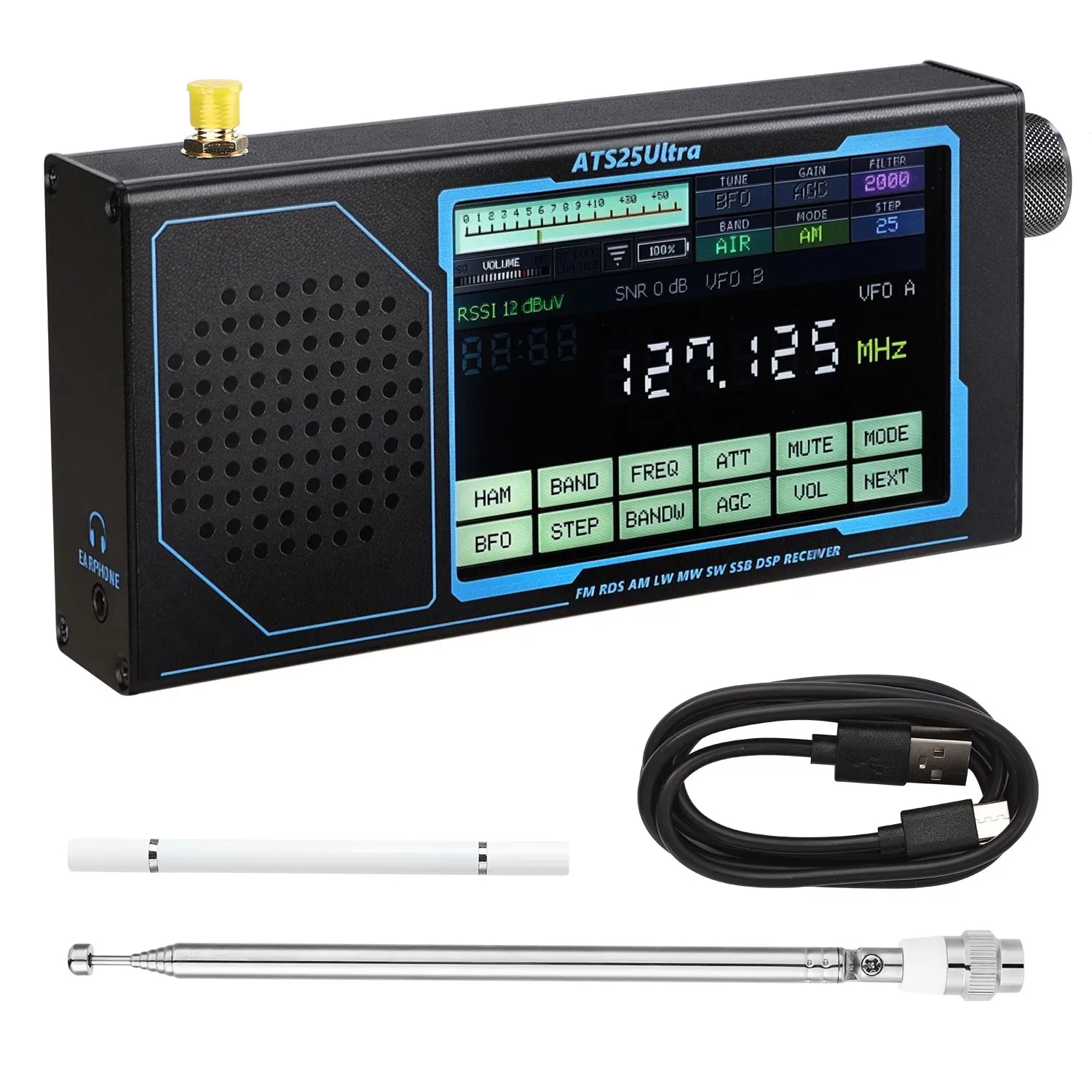

Package Included:
- 1 x HamGeek ATS25 ULTRA Receiver
- 1 x Telescopic Antenna
- 1 x USB Charging Cable
- 1 x Touch Pen（not include）
