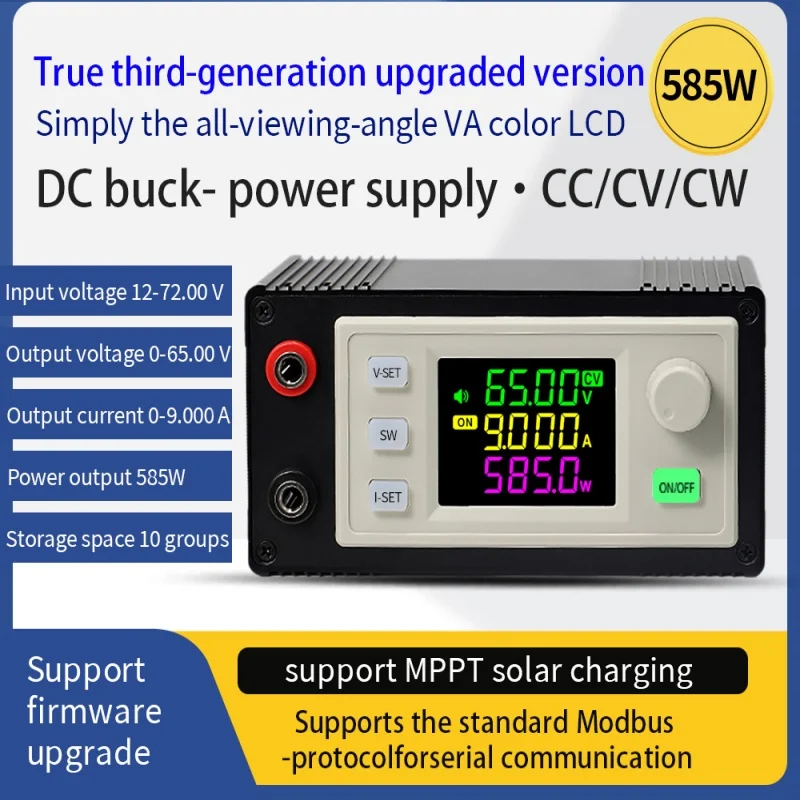

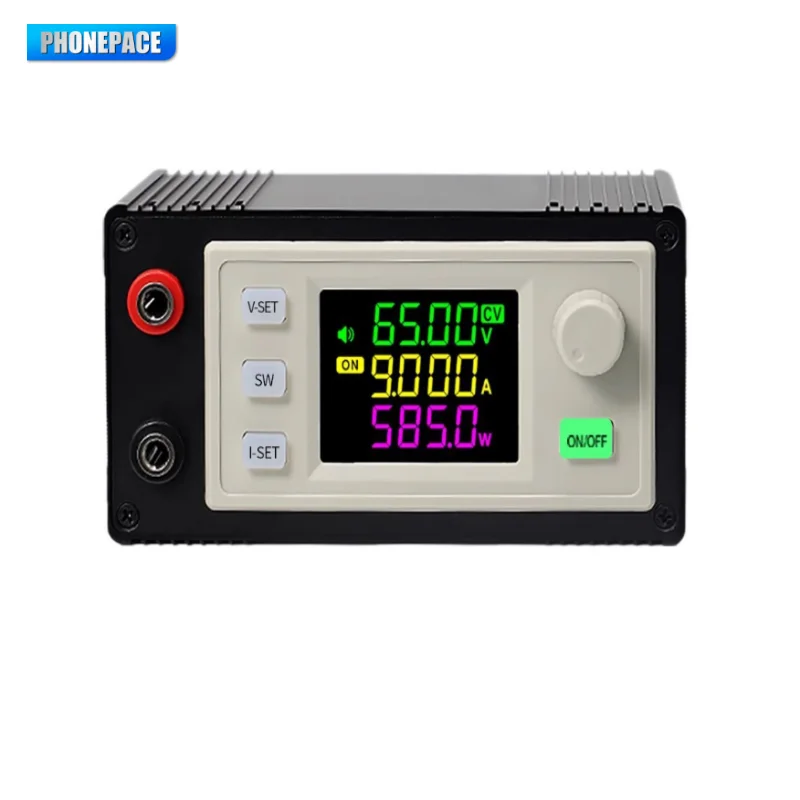

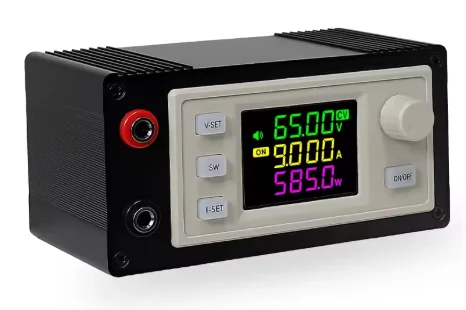

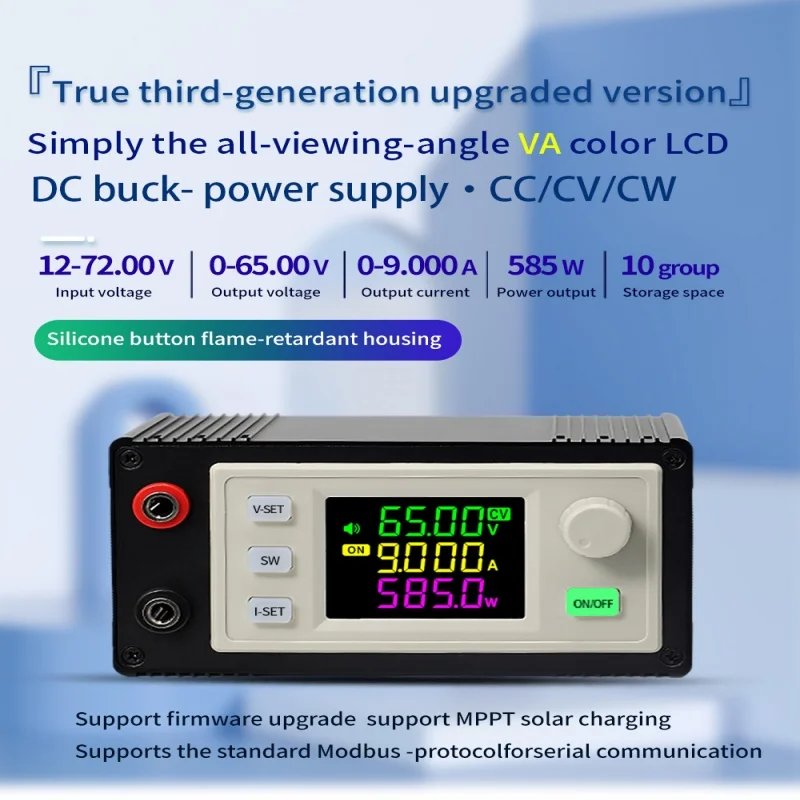

XY6509X DC Buck Converter 65V 9A 585W CNC Adjustable Regulator CC CV Lab Solar Charging Module

Features

Compatible with serial communication and standard MODBUS protocol, while enabling firmware updating and integrating MPPT solar charging functionality for versatile application scenarios.

2、Features a 38*29mm visible display area with an LCD screen exceeding 1.8 inches in size. The screen layout is rationally arranged with bold, plump and rounded fonts, serving as a professional display panel tailored for power supply equipment.

3、The display PCB adopts an immersion gold process, which enhances anti-oxidation performance, boosts conductivity and ensures longer service life. The casing is manufactured via one-piece injection molding with flame-retardant materials for heightened safety, and its double-layer buckle design secures the dual circuit boards more stably.

4、Comes with a high-precision external clock crystal that ensures accurate timekeeping, thus making capacity and energy statistics more reliable. It is driven by a 48-pin high-performance MCU controller with a 64M frequency, delivering quicker computing efficiency.

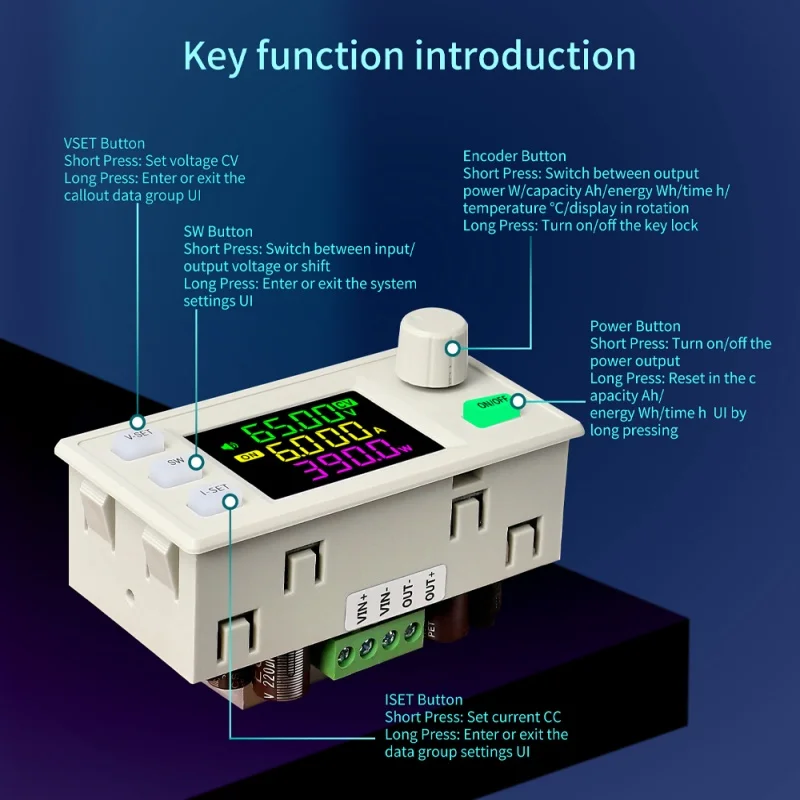

Integrated buzzer offers audible prompts for button operations and alarm alerts, providing clear and responsive feedback to users in real time.



Specification

Model: XY6509X

Input Voltage Range: 12.0–72V

Output Voltage Range: 0–65V

Output Current Range: 0–9.000A

Max Output Power: 585W

Voltage Accuracy: ±0.5% ±1 digit

Current Accuracy: ±0.5% ±3 digits

Voltage Resolution: 0.01V

Current Resolution: 0.001A

Conversion Efficiency: Approximately 95%

Soft Start Function: Available

Integrated Buzzer: Included

MPPT Solar Charging: Supported

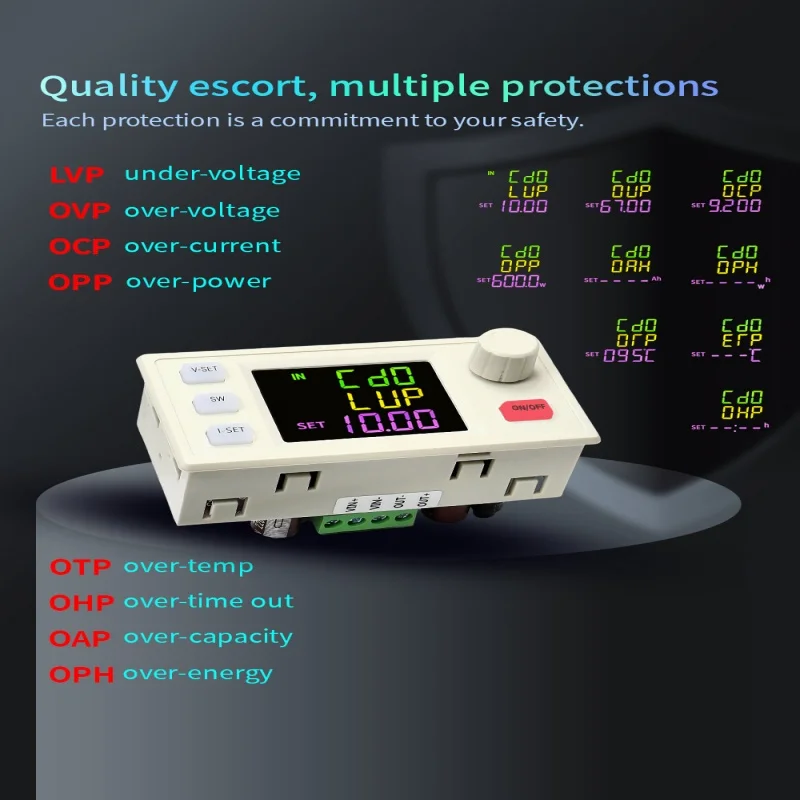

Protection Mechanisms

Input Reverse Polarity Protection: Equipped

Input Low Voltage Protection (LVP): Adjustable from 10–75V, default value 10V

Output Over-Voltage Protection (OVP): Adjustable from 0–67V, default value 67V

Over-Temperature Protection (OTP): Adjustable from 0–110°C, default value 95°C

Overtime Protection (OHP): Adjustable from 1 minute to 99 hours 59 minutes, default status: Disabled

Over-Capacity Protection (OAP): Adjustable from 0–9999Ah, default status: Disabled

Over-Energy Protection (OPH): Adjustable from 0–4200KWH, default status: Disabled

Output Over-Current Protection (OCP) (for XY6509): Adjustable from 0–9.2A, default value 9.2A

Output Over-Power Protection (OPP) (for XY6509): Adjustable from 0–650W, default value 650W
