UNI-T UT205A+ UT206A+ Digital Clamp Meter 1000V AC DC Current Pliers Clamps Voltage Tester Ammeter Resistance Temperature Test

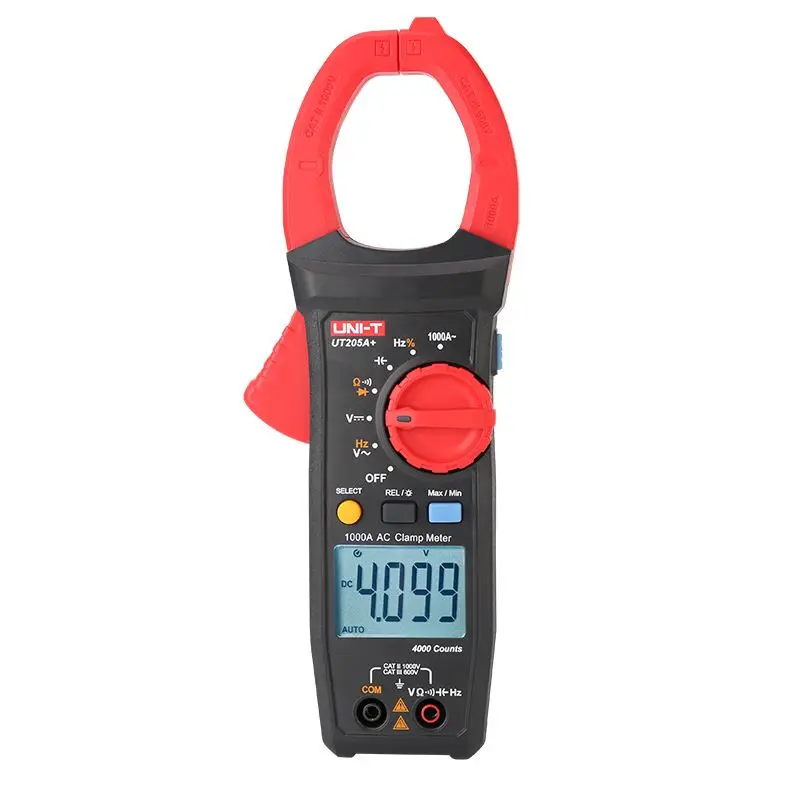

UT205A+/UT206A+ 1000A AC Clamp Meters
UT205A+/UT206A+ 1000A AC clamp meters are reliable and portable tools for electronics and electrical maintenance. Featuring a lightweight and slim design, and backlight for working in dark environments. These meters also feature duty cycle, NCV, MAX/MIN, and Inrush current measurement.

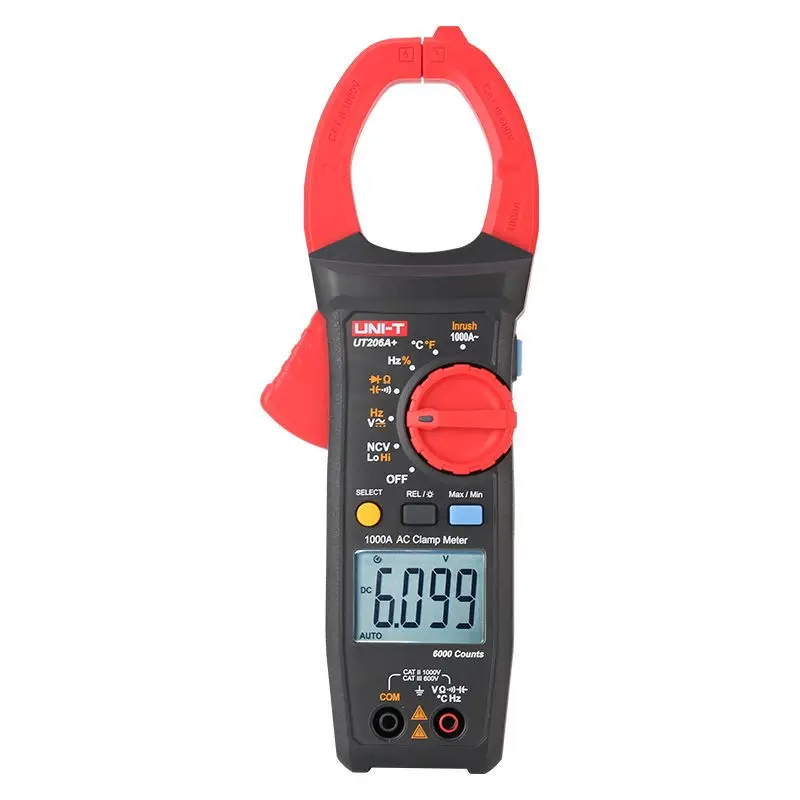

Models: UT205A+, UT206A+
Features of UT205A+/UT206A+ 1000A Digital Clamp Meters

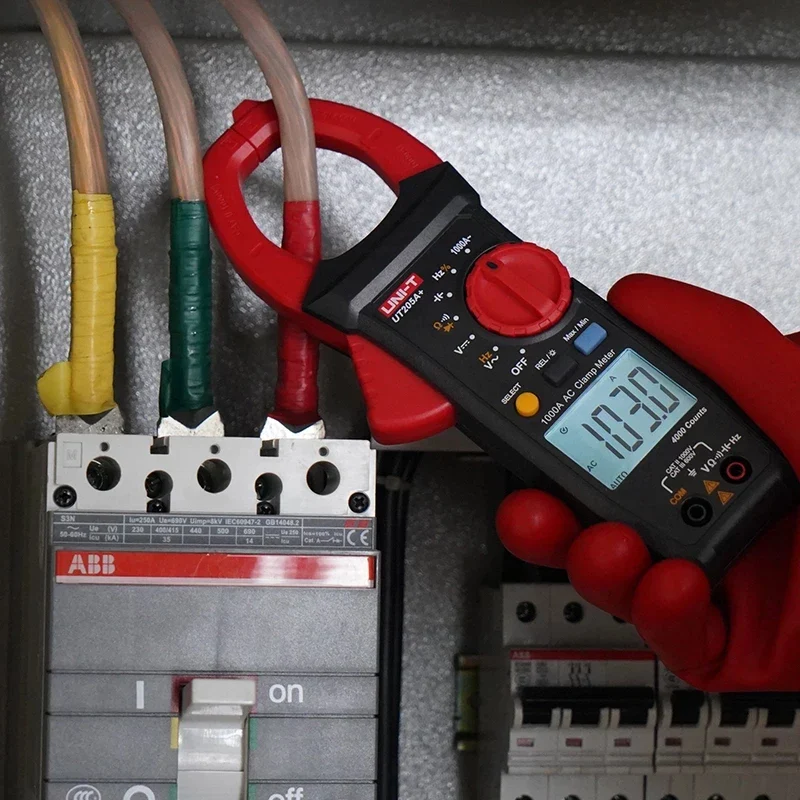

● 1000A AC current measurement
● 1000V AC/DC voltage measurement
● 600A inrush current measurement (UT206A+)
● Temperature (UT206A+)
● NCV (UT206A+)
● ACV frequency 10Hz～10kHz
● Jaw opening: 45mm
● Resistance / capacitance / frequency measurement
● Auto range / backlight / low battery indication
● Continuity / diode / duty cycle
● MAX/MIN
● Data hold / flashlight / relative mode
● Auto power off
● CAT II 1000V/CAT III 600V

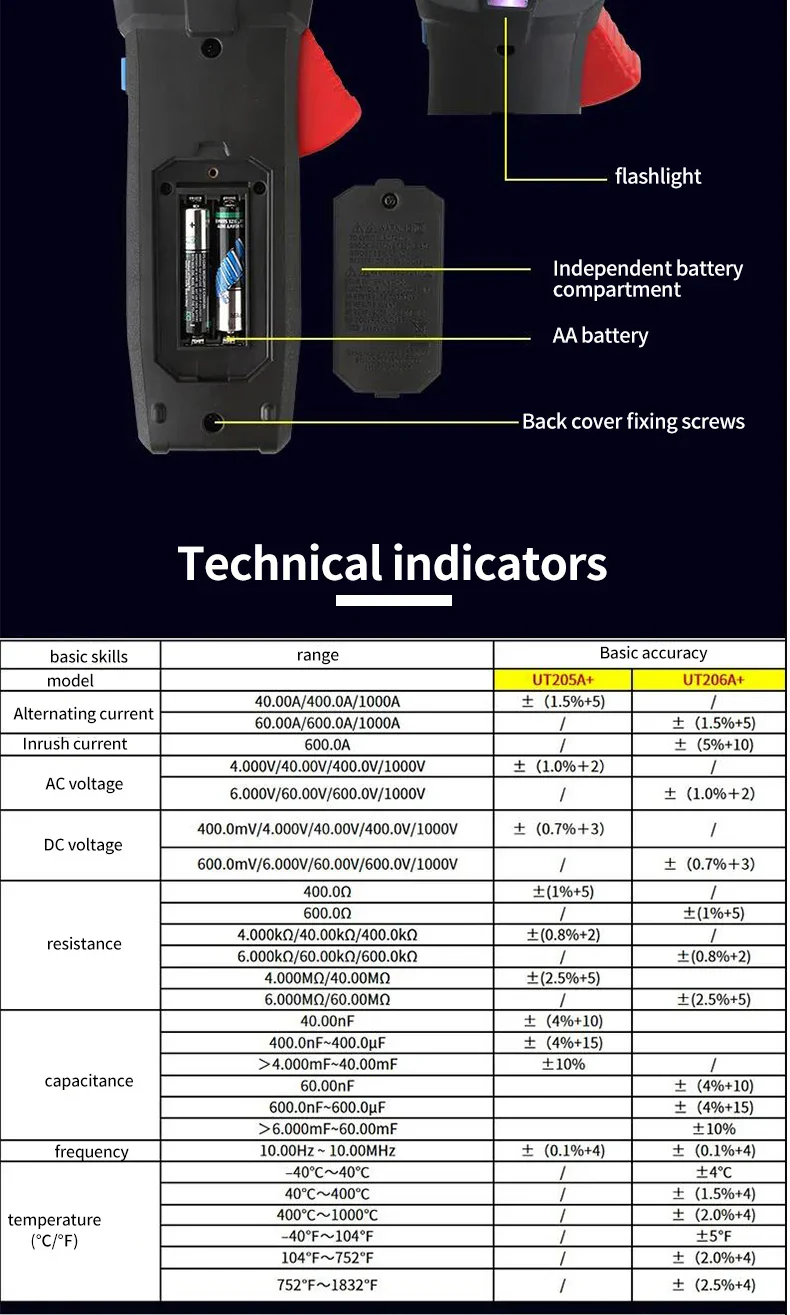

Specifications of UT205A+/UT206A+ 1000A Digital Clamp Meters
|
Specifications |
Range |
UT205A+ |
UT206A+ |
|
AC current (A) |
1000A |
±(1.5%+5) |
±(1.5%+5) |
|
Inrush current (A) |
600A |
±(5%+10) |
|
|
AC voltage (V) |
1000V |
±(1.0%＋2) |
±(1.0%＋2) |
|
ACV frequency (Hz) |
10Hz～10kHz |
±(1.0%＋5) |
±(1.0%＋5) |
|
DC voltage (V) |
1000V |
±(0.7%＋3) |
±(0.7%＋3) |
|
Resistance (Ω) |
40MΩ |
±(0.8%+2) |
|
|
60MΩ |
±(0.8%+2) |
||
|
Capacitance (F) |
40mF |
±(4%+5) |
|
|
60mF |
±(4%+5) |
||
|
Frequency (Hz) |
10.00Hz～10.00MHz |
±(0.1%+4) |
±(0.1%+4) |
|
Temperature (℃/℉) |
–40℃～1000℃/–40℉～1832℉ |
±4℃/±5℉ |
|
|

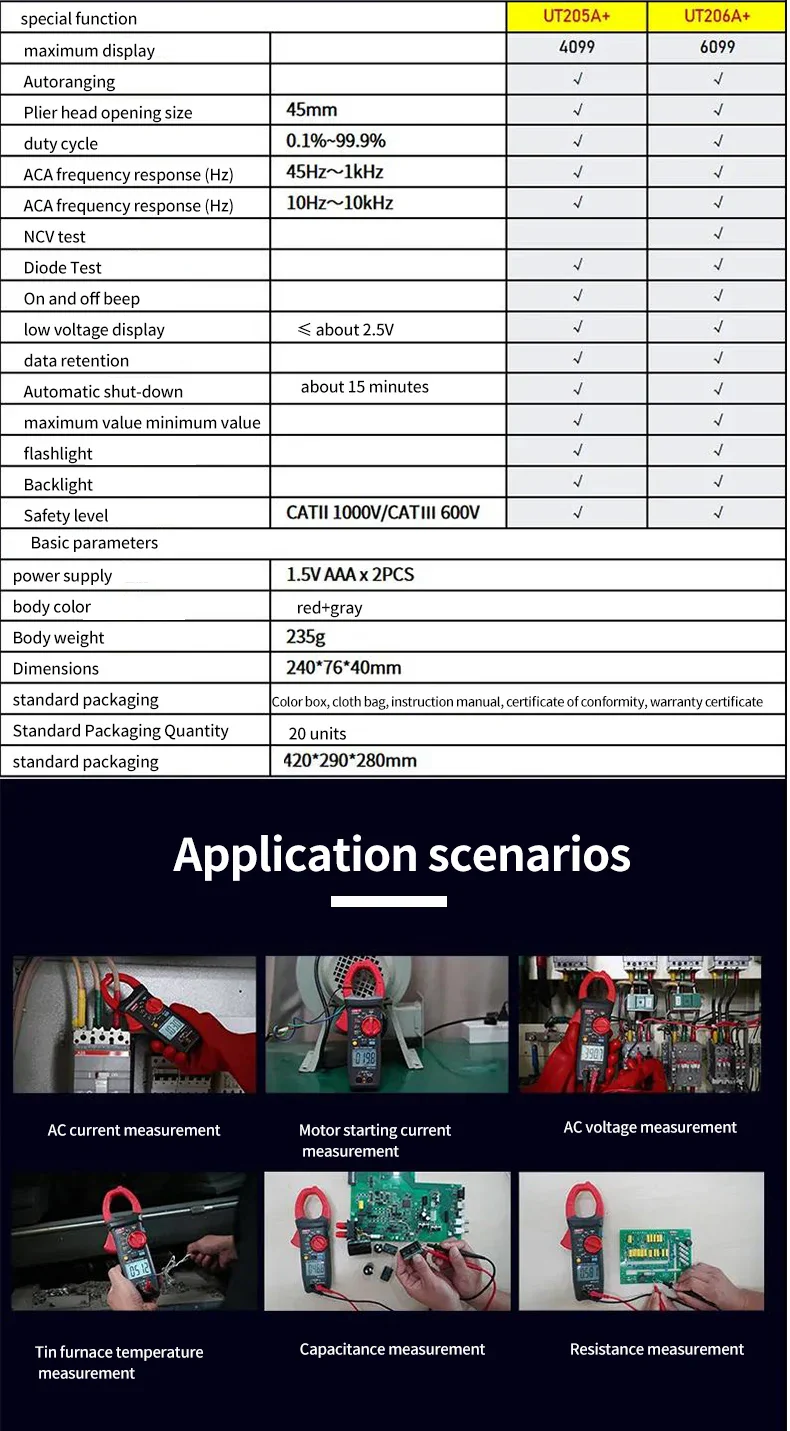

Features |
|||
|
Display count |
4099 |
6099 |
|
|
Jaw opening |
45mm |
45mm |
|
|
Auto range |
√ |
√ |
|
|
Duty cycle |
√ |
√ |
|
|
NCV |
√ |
||
|
Diode test |
√ |
√ |
|
|
Continuity |
√ |
√ |
|
|
Low battery indication |
＜2.5V approximately |
√ |
√ |
|
Data hold |
√ |
√ |
|
|
Auto power off |
Approximately 15 minutes |
√ |
√ |
|
Max/Min |
√ |
√ |
|
|
Flashlight |
√ |
√ |
|
|
Backlight |
√ |
√ |
|
|
Safety rating |
CAT II 1000V/CAT III 600V |
√ |
√ |
|
General Characteristics |
|||
|
Power |
AAA 1.5V x 2（Due to logistics reasons, the delivery does not include batteries） |
||
|

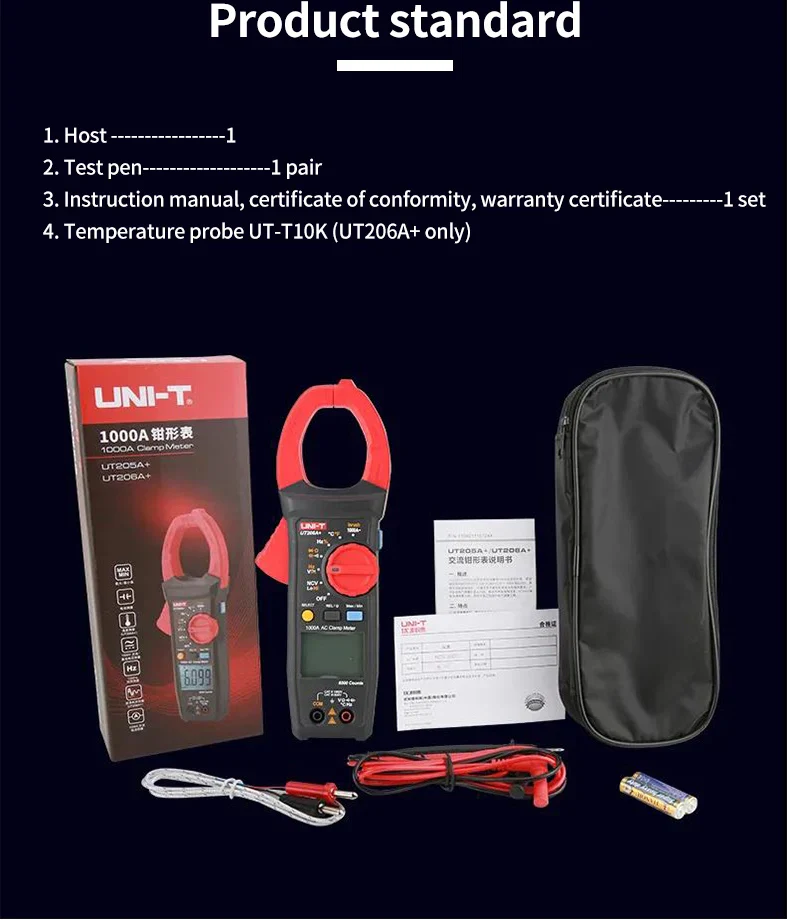

Standard accessories |

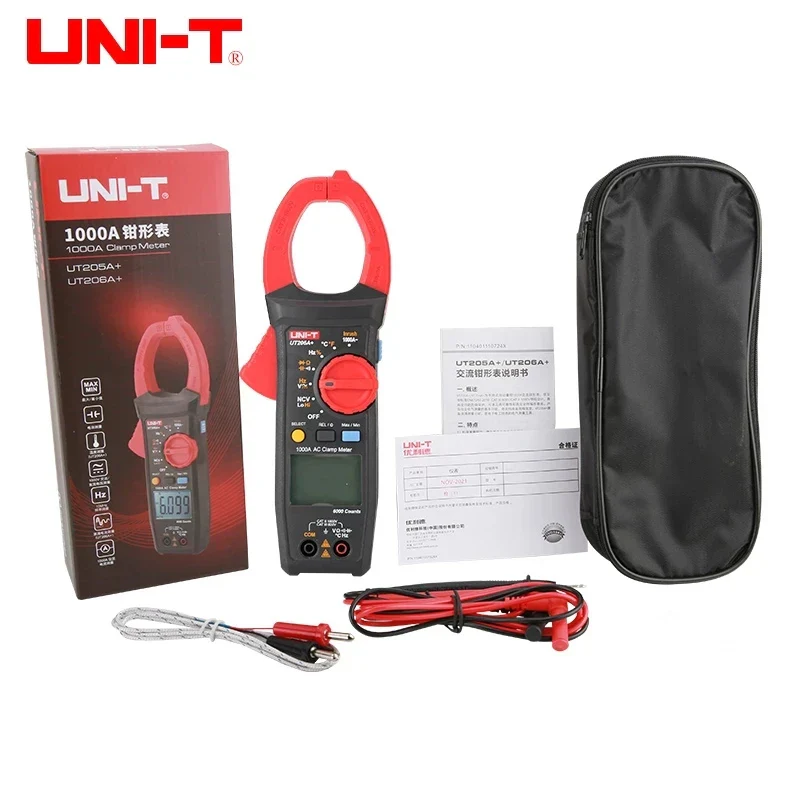

Test leads, batteries, temperature probe(UT206A+), Manual |
||
|
Product color |
Red+Gray |
||
|
Product net weight |
235g (Including batteries) |
||
|
Product size |
242×76.5x52mm |
||
|
Standard individual packing |
Gift box，carrying bag |
||
Original: $52.74
-70%$52.74
$15.82Product Information
