Home Store

UNI-T Solar MPPT Meter UT673PV 5~800W PV Module Maximum Power Tester Open Circuit Voltage Short Circuit Current Lmp Vmp Test

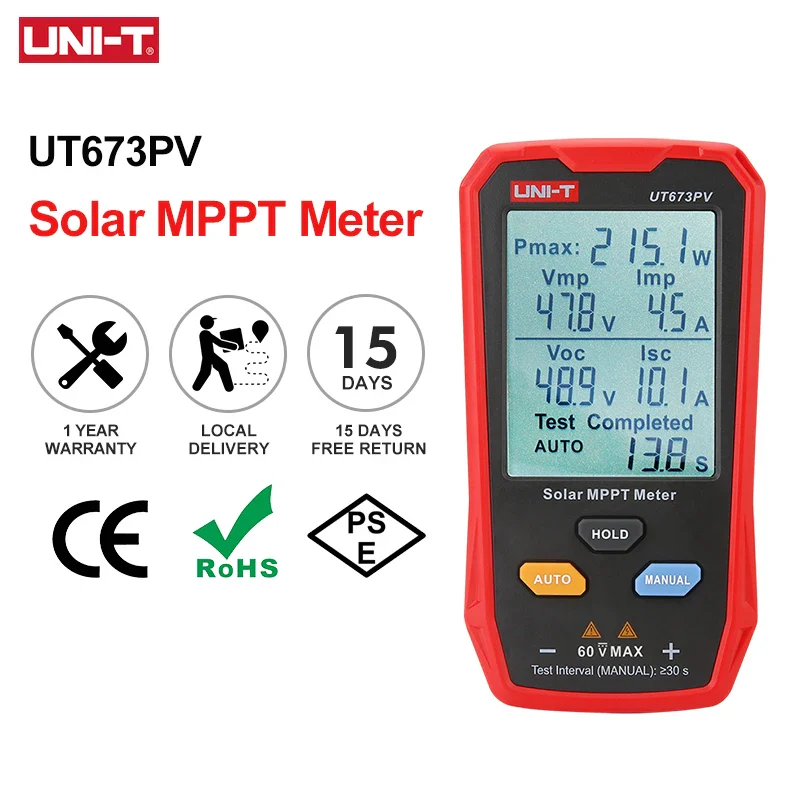

UT673PV Solar MPPT Meter

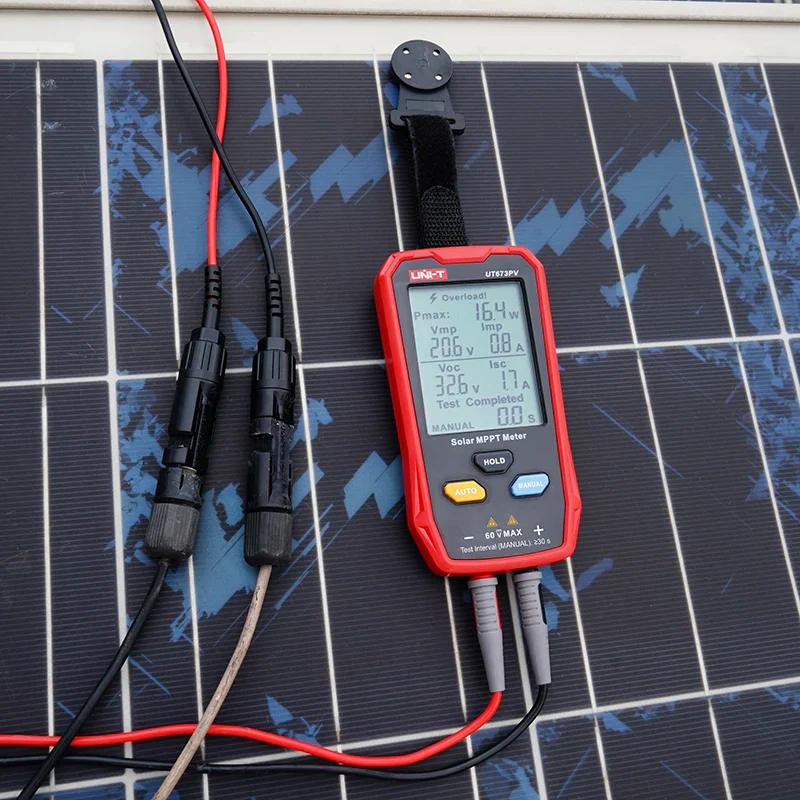

UT673PV solar MPPT meter can effectively identify any abnormalities in solar panels by testing their maximum power, peak power voltage, peak power current, open circuit voltage, and short circuit current.

Featuring a spacious screen and automatic measurement capabilities, this device conveniently displays all measurement results simultaneously. Its portable design enables easy carrying, greatly enhancing the operational and maintenance efficiency for photovoltaic manufacturers, installers, and end users.

Features of UT673PV Solar MPPT Meter

● Maximum power test (Pmax) 5～800W
● Peak power voltage (Vmp) 12～60V
● Peak power current (Imp) 0～35A
● Open circuit voltage (Voc) 12～60V
● Short circuit current (Isc) 0～35A

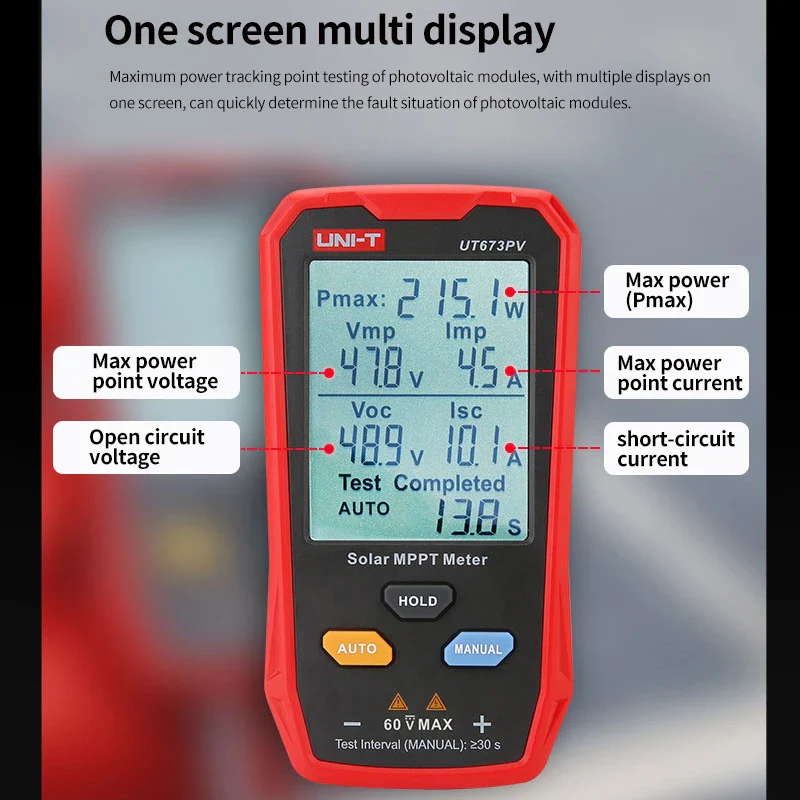

● Large screen and multiple result display
● No batteries needed, powered by the solar panel

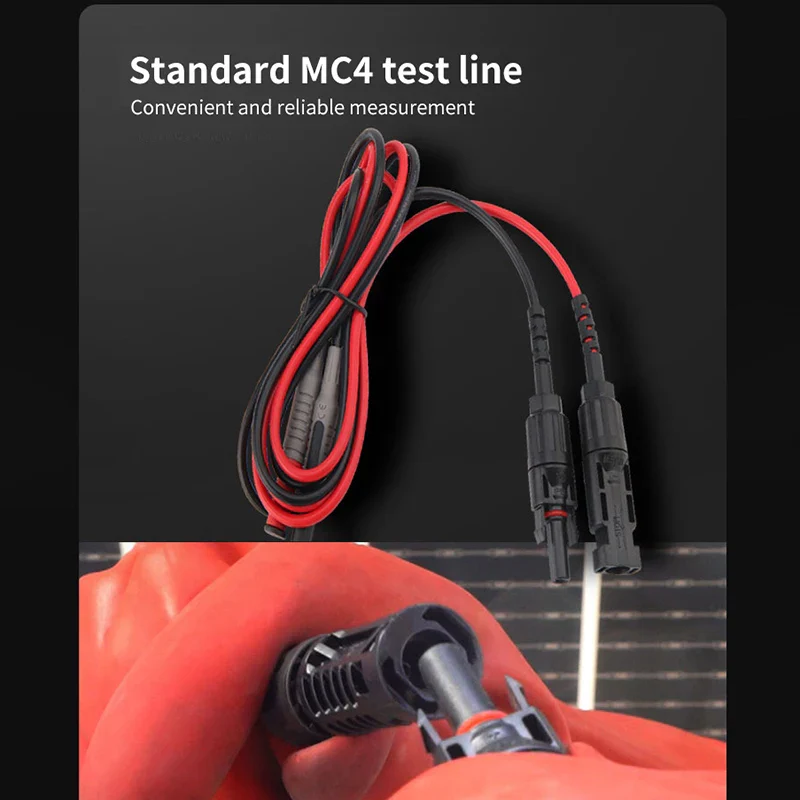

● Equipped with MC4 test lead

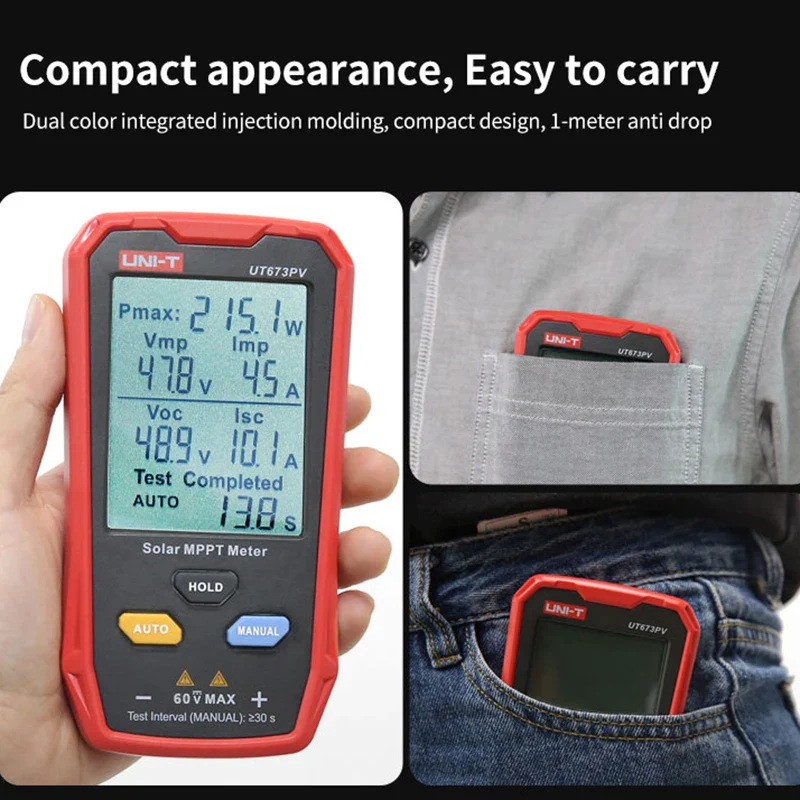

● Portable and convenient
