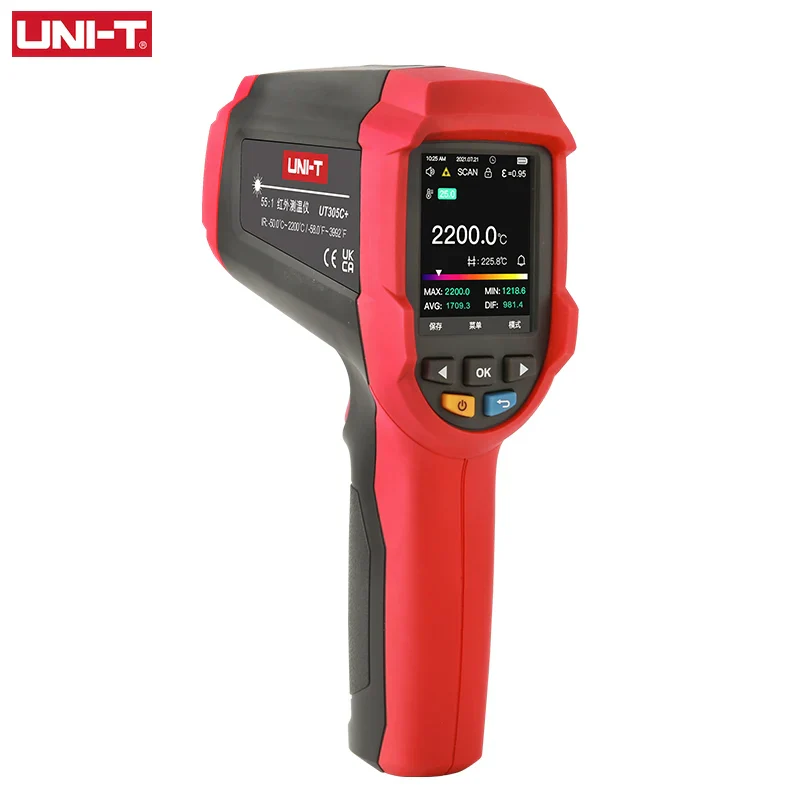

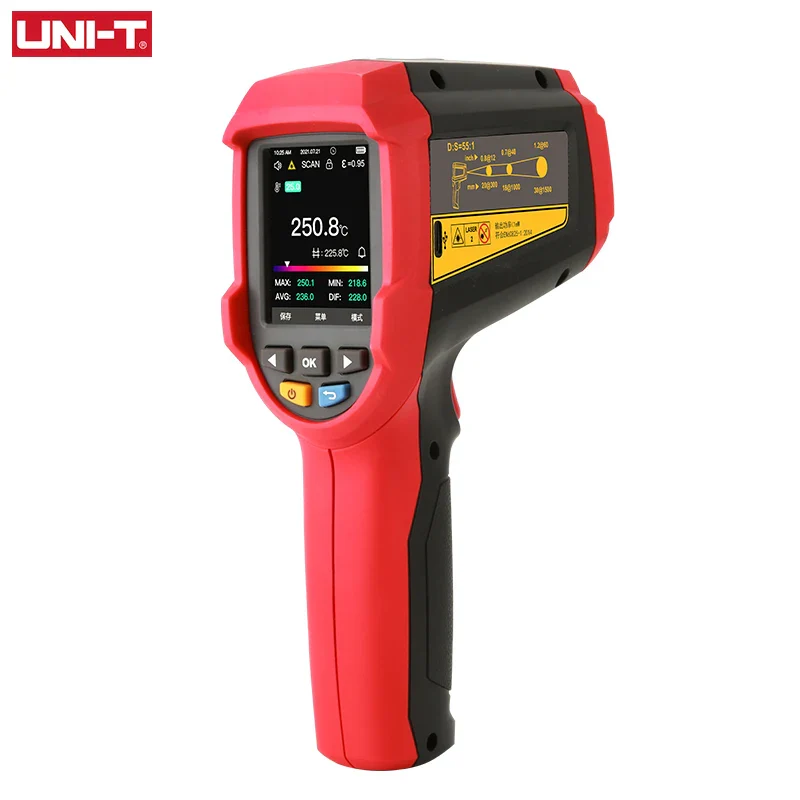

UNI-T Digital Infrared Thermometer UT305C+ UT305A+ Laser Temperature Meter Industrial Not Contact Pyrometer -50-2200
The UT305+ series is a high-precision, high-distance ratio (55:1), wide temperature range (-50°C~ 2200°C) non-contact infrared thermometer. It can detect the thermal insulation performance of various types of equipment, and is suitable for furnace kilns, heat transfer pipes, building thermal bridge effect, cold storage, greenhouses, floor heating and other fields.
Features
● Infrared professional mode
● Surface heat conduction detection mode
● Surface dew point detection mode
● Surface temperature comparison mode
● High resolution TFT color LCD
● Trigger lock function，Reservation measurement
● 999 groups of data storage, data output support PDF, CSV format
● High precision display of ambient temperature, relative humidity, dew point temperature and wet bulb temperature
● Type K thermocouple temperature measurement
Parameter
|
Specifications |
UT305A+ |
UT305C+ |
|
|
Measurement |
Infrared temperature measurement |
-50°C~1850°C (-58.0℉～3362℉) |
-50°C~2200°C |
|
The environment temperature measurement |
-10°C~50°C (14℉～122℉) |
||
|
Relative humidity |
10%RH~90%RH |
||
|
Type K thermocouple |
-50°C~1370°C (-58.0℉～2498℉) |
||
|
Accuracy |
Infrared temperature measurement |
-50°C~0°C ±（1.0℃+0.1℃/℃） -58℉~32℉ ±（2.0℉+0.1℉/℉） 0°C~2200°C±1.0℃or ±0.01×t℃（Which is greater） |
|
|
32℉~3992℉±2.0℉ or ±0.01×t℉ （Which is greater） |
|||
|
The environment temperature measurement |
-10°C~0°C (14℉~32℉)±1.0℃(±2.0℉) |
||
|
40°C~50°C (104℉~122℉)±1.0℃ (±2.0℉ ) |
|||
|
Relative humidity |
±5%RH |
||
|
Type K thermocouple |
±(0.005×t+1.5)℃ / ±(0.005×t+3.0)℉ |
||
|
Certification |
CE UKCA |
||
|

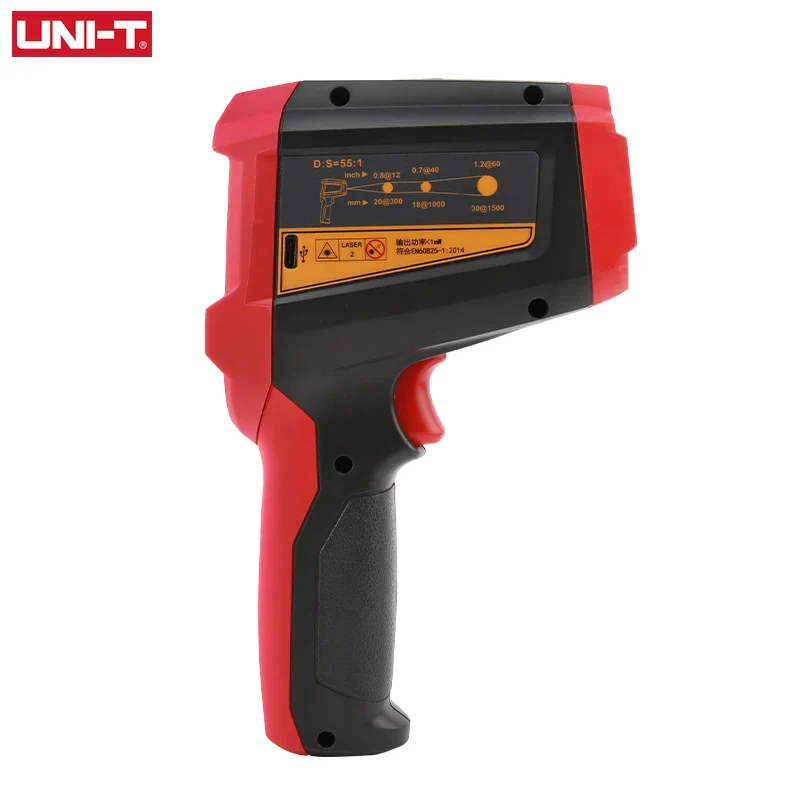

Diastance ratio（D:S) |
55:01 |
||
|
Emissivity |
0.1~1.0(adjustable) |
||
|
Spectral response |
8µm~14µm |
||
|
Repeatability of infrared temperature measurement |
±0.005×t℃（℉）or1℃（2℉） （Which is greater） |
||
|
Display |
0.1℃（0.1℉） |
||
|
Unit conversion |
℃ / ℉ |
||
|
Laser point |
Single laser, output < 1 mW, class II |
||
|
Data storage |
999groups |
||
|
Data output format |
PDF、CSV |
||
|
Data communication or charging interface |
Type-C USB |
||
|
Battery |
Li-ion 3.7V 2600mAh 18650 rechargeable lithium-ion battery |
||
|
Charging time |
No more than 3 hours |
||
|
Continuous working time |
Work continuously for no less than 20 hours on full charge |
||
|
Buzzer alarm |
√ |
||
|
Trigger lock function and reservation measurement |
√ |
||
|
Real time, date |
√ |
||
|
LCD type |
2.4 inch TFT LCD 320 * 240 pixels |
||
|
temperature coefficient |
±0.1℃/℃ or ±0.1%℃/℃, ±0.1℉/℉ or ±0.1%℉/℉（Which is greater） |
||
|
Work at an altitude of |
No more than 2000 meters |
||
|
Drop test |
1m |
||
|
Standard k-type thermocouple probe (bead type) |
|||
|
Measurement range |
-40°C to 260°C (-40°F to 500°F) |
||
|
Accuracy |
0.075× T(t is measured temperature) |
||
|
Lenth |
1 m (40 in) long K type thermocouple cable with standard micro thermocouple connector |
||
|
General Characteristics |
|||
|
Power |
Li-ion 3.7V 2600mAh 18650 rechargeable lithium-ion battery |
||
|
LCD screen size |
37mm x 49mm |
||
|
Product color |
red and gray |
||
|
Net weight |
375 g |
||
|
Product size |
205 x 65 x 124 mm |
||
|
Standard accessories |

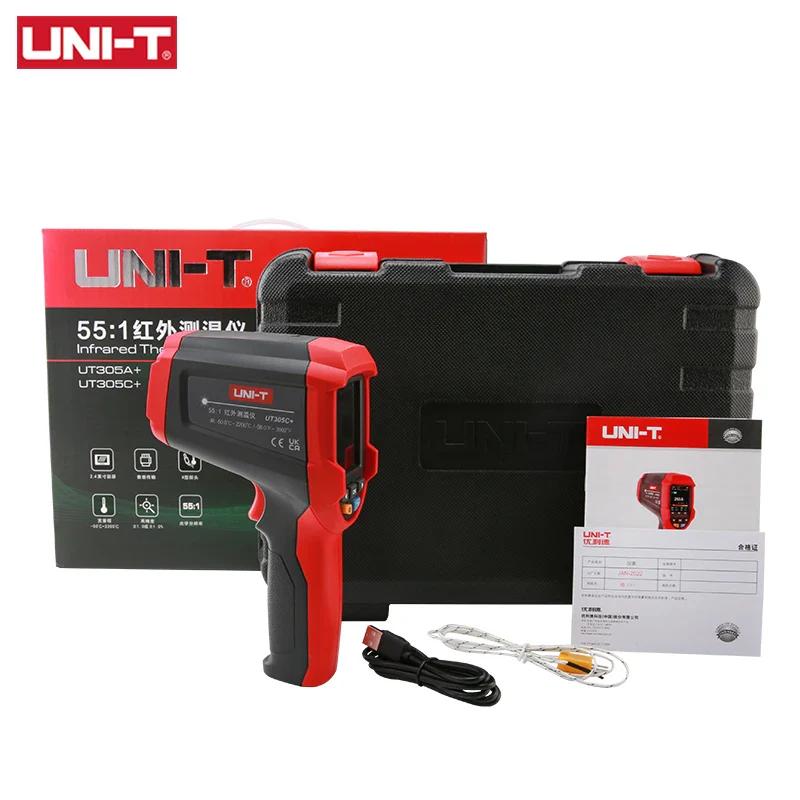

Type-C data cable, Type K thermocouple probe (bead Type) |
||
