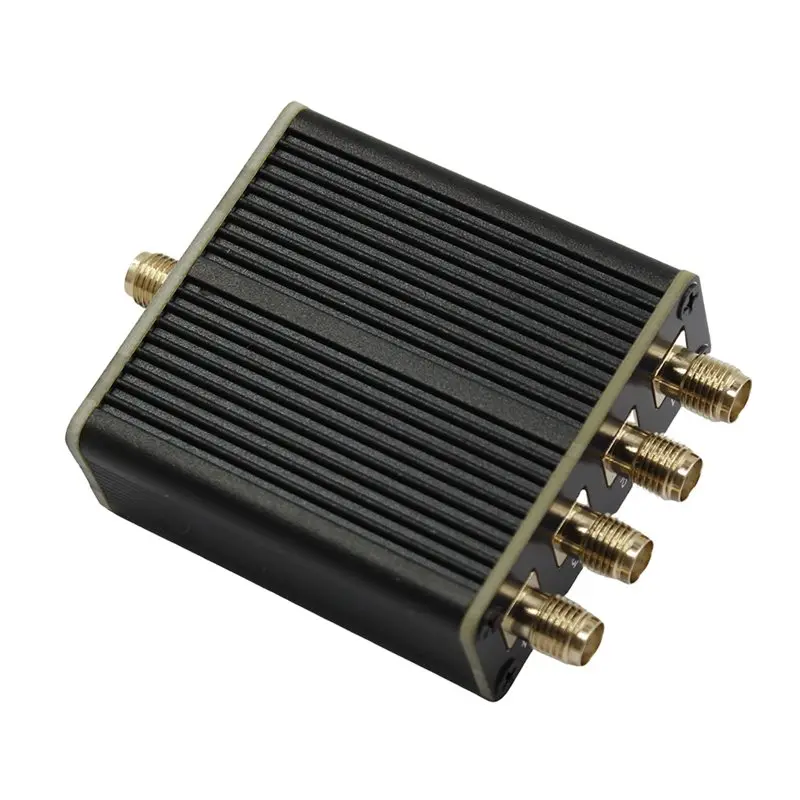

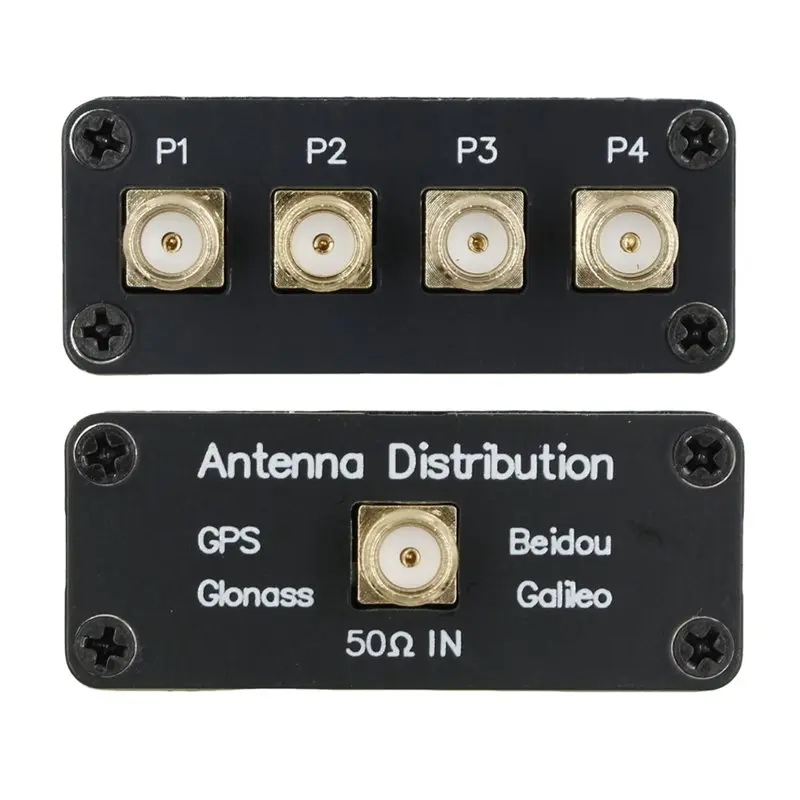

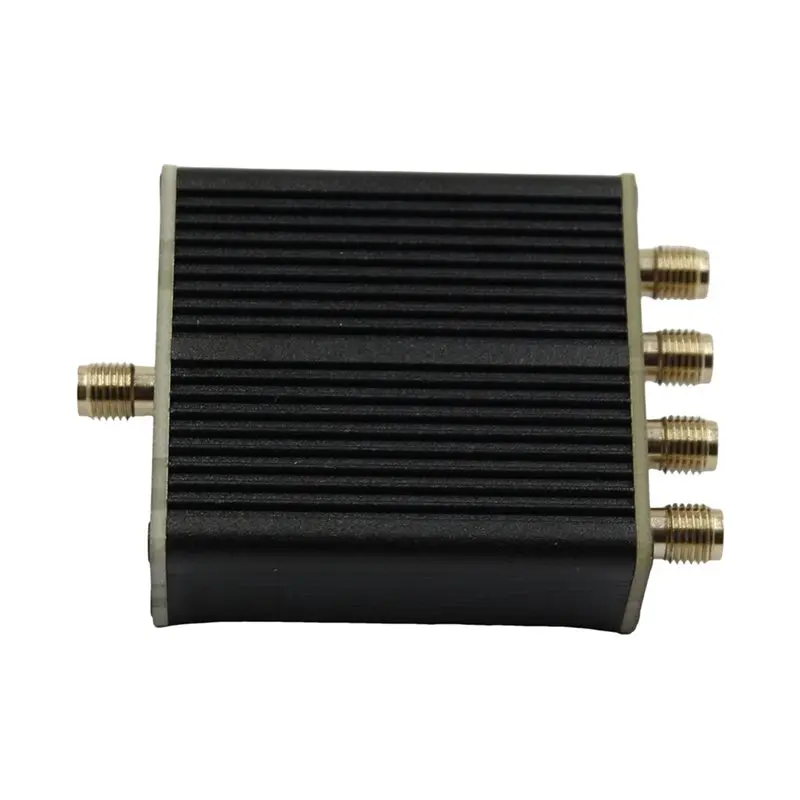

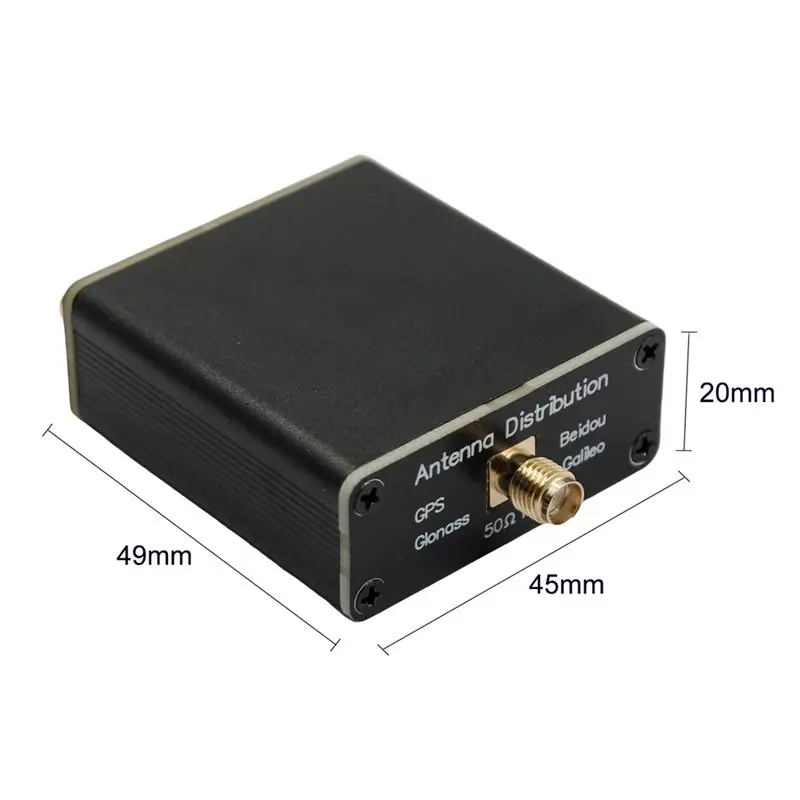

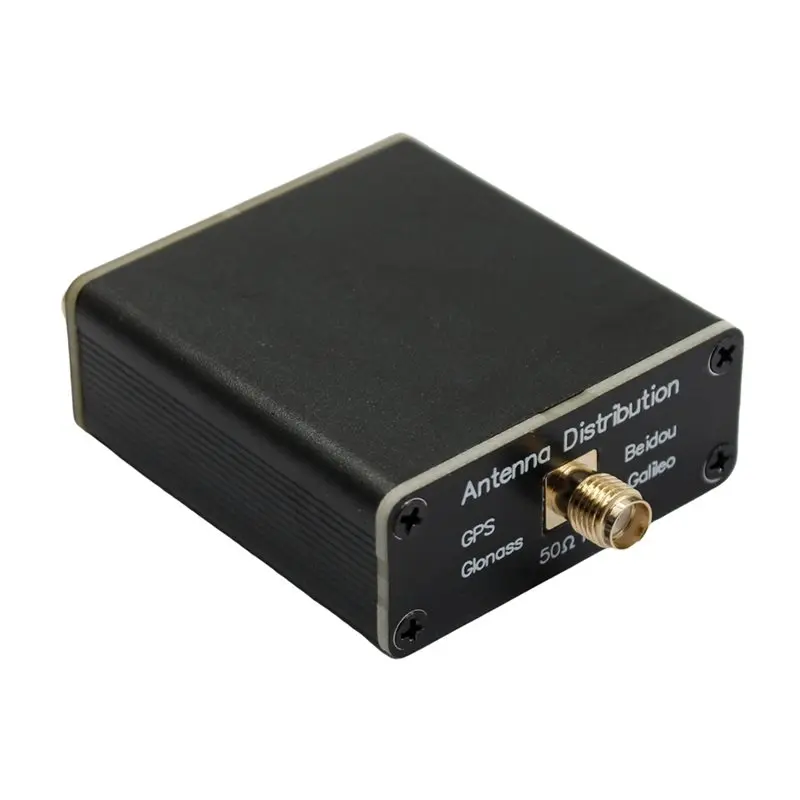

Stylish-Passive Active GPS GNSS Power Splitter Dividers SV1AFN 1-To-4 Navigation Signal Antenna Power Combiner
Stylish-Passive Active GPS GNSS Power Splitter Dividers SV1AFN 1-To-4 Navigation Signal Antenna Power Combiner
Support Dropshipping and Wholesaling.
A one-to-four navigation signal splitter, also known as a power splitter/combiner, is a device that splits one input signal into two or more outputs of equal or unequal energy. It can also combine multiple signals into a single output, also known as a combiner.
A power splitter's output ports must maintain a certain degree of isolation. It offers advantages such as a wide operating frequency, low insertion loss, high gain and isolation, and stable performance.
Applications:It has a wide range of applications, including GPS, BeiDou, GLONASS, Galileo, and L-band (1.0-2.0 GHz) signal distribution.
Frequency Range: 1.4-1.6 GHz
Insertion Loss: Less than 6.6 dB

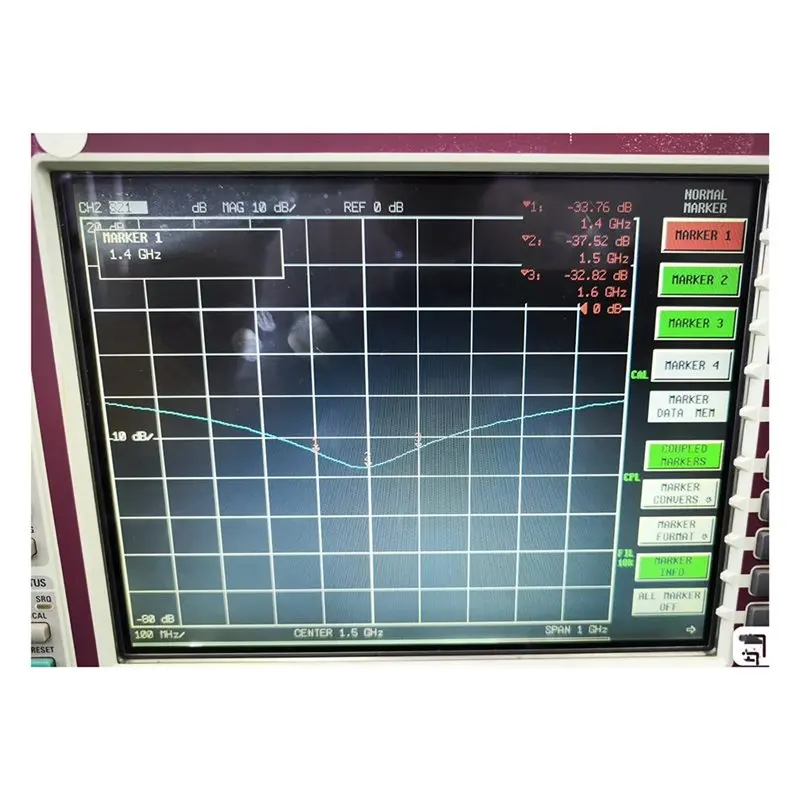

Return Loss: Less than -25 dB
Output Channel Isolation: Greater than 30 dB
RF Interface Impedance: 50 ohms
Inline Power Supported
Input and Output Interfaces: SMA Female
Color: Black
Material: Aluminum Alloy
Package Contents:
1 x Power Splitter
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
A power splitter's output ports must maintain a certain degree of isolation. It offers advantages such as a wide operating frequency, low insertion loss, high gain and isolation, and stable performance.
Applications:It has a wide range of applications, including GPS, BeiDou, GLONASS, Galileo, and L-band (1.0-2.0 GHz) signal distribution.
Frequency Range: 1.4-1.6 GHz
Insertion Loss: Less than 6.6 dB
Return Loss: Less than -25 dB
Output Channel Isolation: Greater than 30 dB
RF Interface Impedance: 50 ohms
Inline Power Supported
Input and Output Interfaces: SMA Female
Color: Black
Material: Aluminum Alloy
Package Contents:
1 x Power Splitter
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.

|
