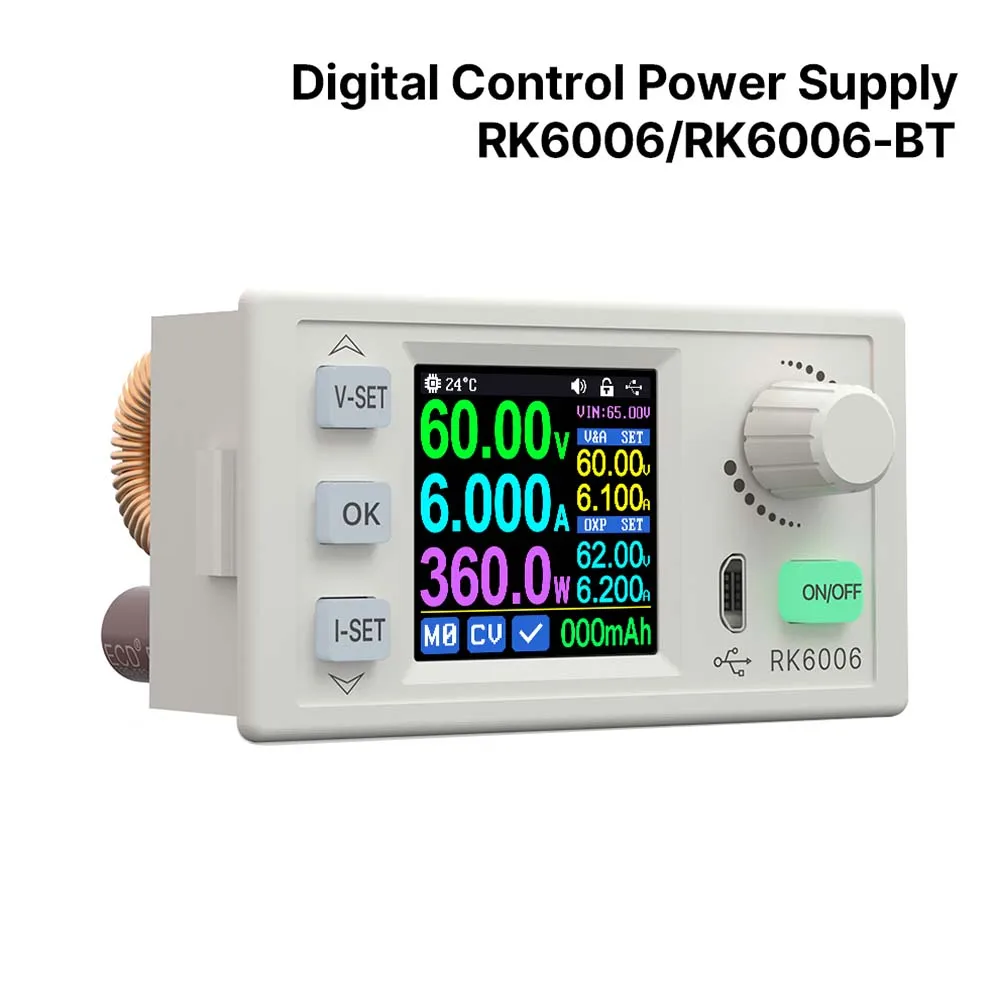

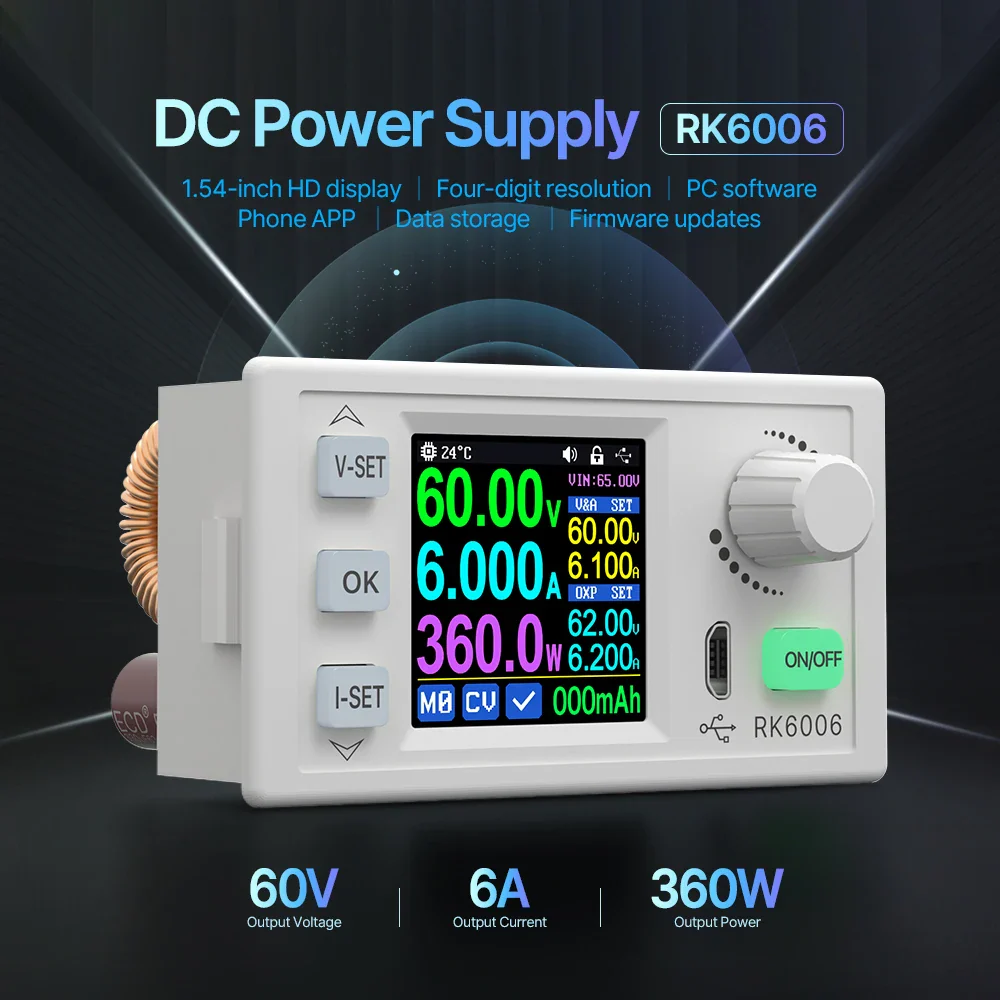

RK6006 DC Regulated Power Supply 6A 60V DC to DC Step Down Voltage Bench Firmware Upgrade USB Stabilized Voltage Buck Converter



RK6006 DC Regulated Power Supply 6A 60V DC to DC Step Down Voltage Bench Firmware Upgrade USB Stabilized Voltage Buck Converter

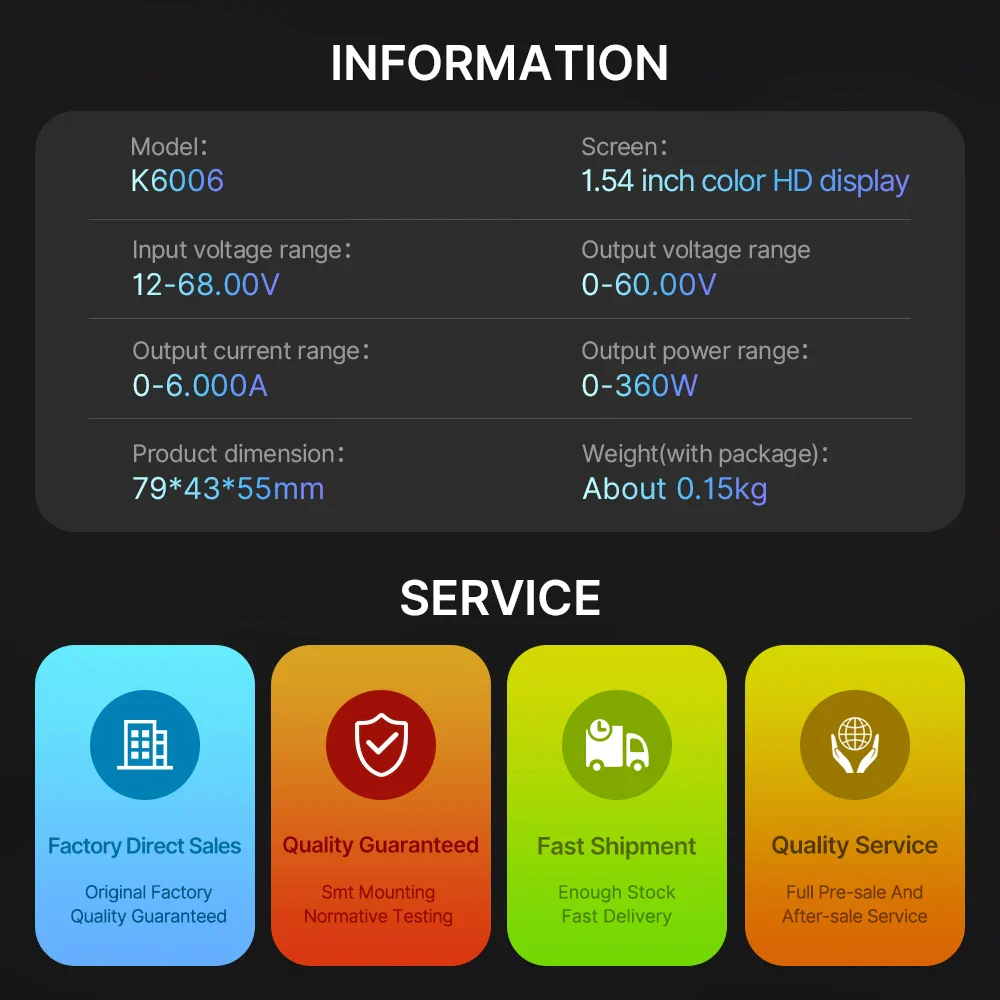

Specifications:

Model: RK6006/RK6006-BT

Input voltage range: 12-68.00V

Output voltage range: 0-60.00V

Output current range: 0-6.000A

Output power range: 0-360W

Input voltage measurement resolution: 0.01V

Output voltagesetting measurement resolution: 0.01V

Output current setting measurement resolution: 0.001A

Input voltage measurement accuracy: ±(1%+5 digits)

Output voltage accuracy between setting and measurement: ±(0.3%+3 digits)

Output currentaccuracybetween setting and measurement:±(0.5%+5 digits)

Output ripple typical:100mV VPP①

Working temperature range: -10℃~40℃

External sensor Temperature detection range:-10℃~100℃/0℉~200℉

External sensor Temperature detection accuracy:±3℃/±6℉

Constant voltage moderesponse time: 2ms（0.1A-5A Load）

Constant voltage mode load regulation: ±(0.1%+2 digits)

Constant current mode load regulation: ±(0.1%+3 digits)

Capacity measurement range: 0-9999.99Ah

Energy measurement range: 0-9999.99Wh

Capacity and energy statistical error: ±2％

Buck working mode: （input voltage÷1.1）-1②

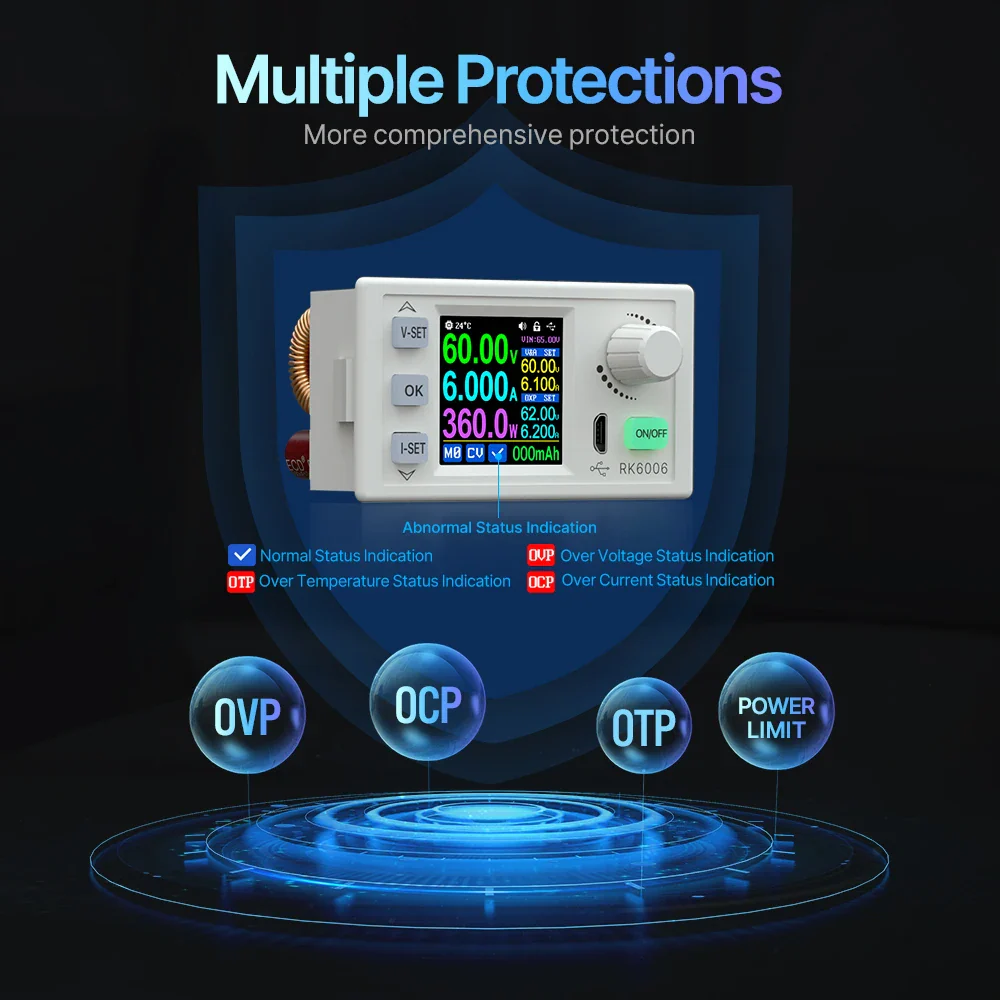

Over temperature protection: System temperature>80℃

Screen brightness setting: 0-5(6 level in total)

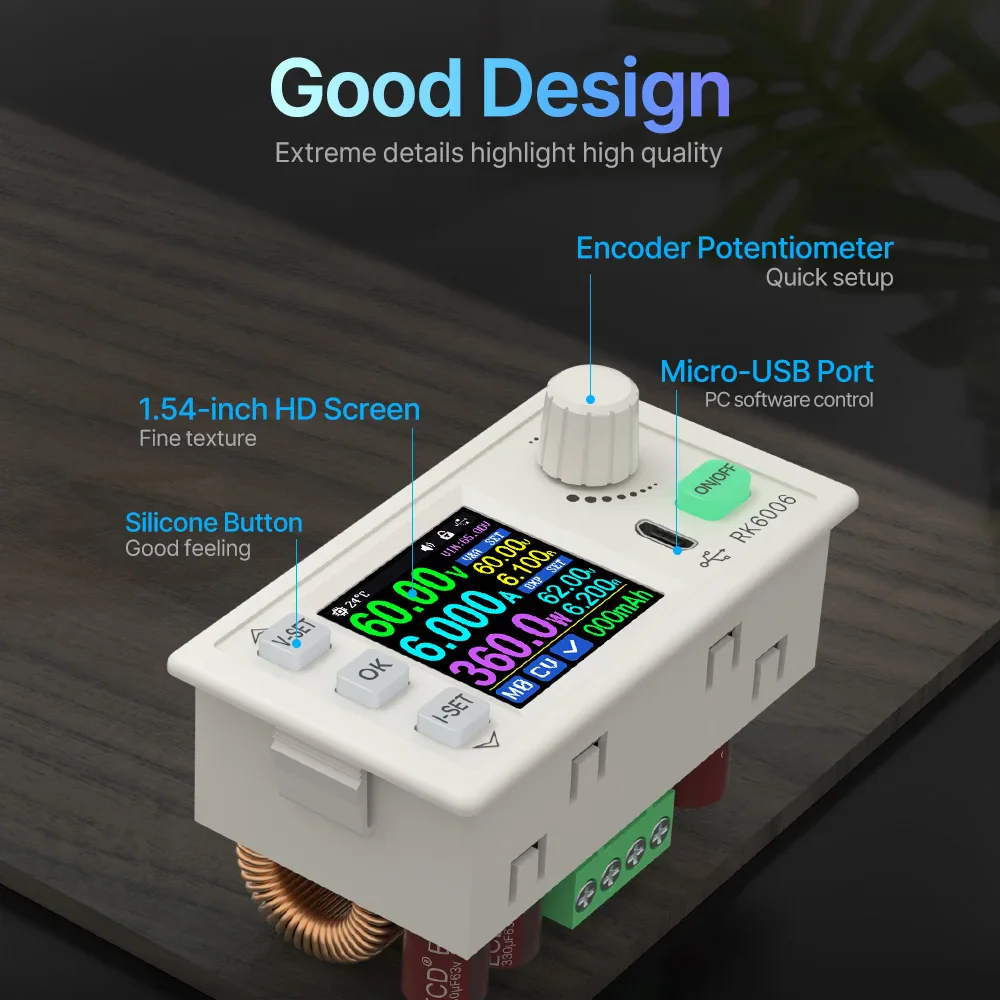

Screen: 1.54 inch 240*240 color HD display

Cooling fan start condition：Output current>4Aor System temperature>45℃

Cooling fan shut down condition：Output current<3.9Aand System temperature<45℃

Weight(with package):About 0.15kg

Product dimension: 79*43*54mm

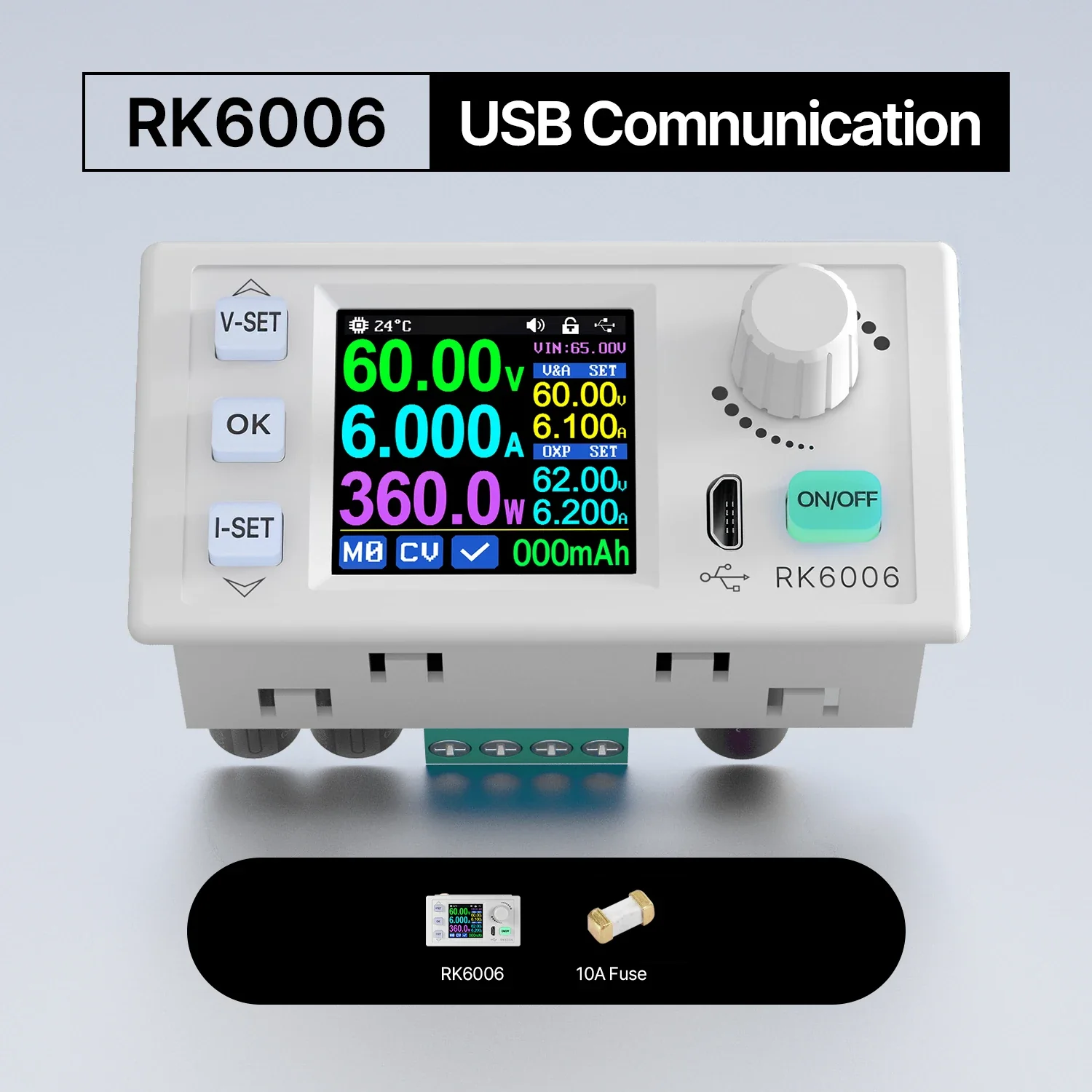

Support USB communication: yes

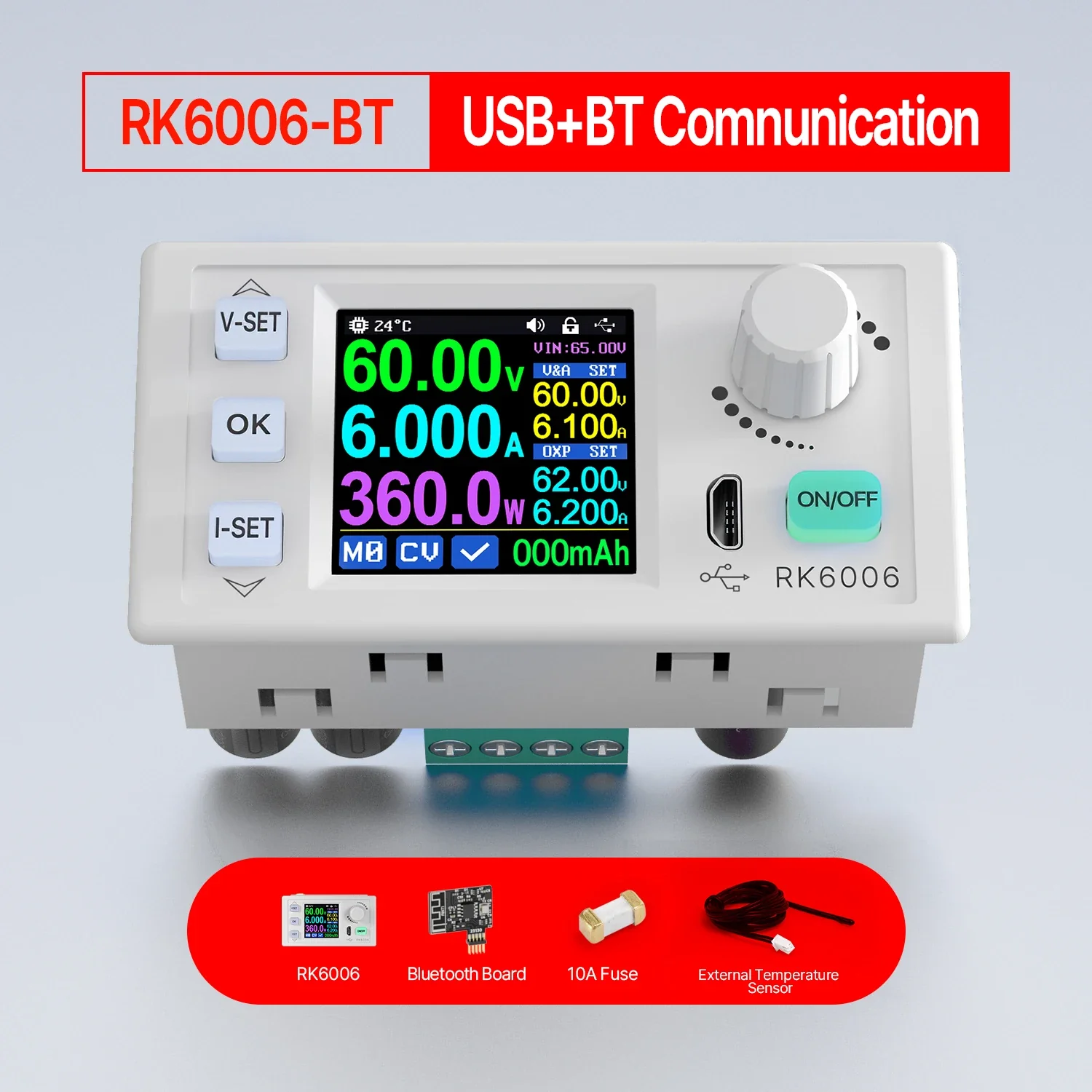

Support Bluetooth communication: Only RK6006-BT supports

①:Ripple measurement method:  noise and ripple are measured at X1 range, AC coupling, 20MHz of bandwidth on your oscilloscope with a 0.1uF parallel capacitor at the output terminals

②for example: input voltage is 24V，the max output voltage is 20.8V。



Installation

1. RK6006 manual, PC software, APP download link: https://drive.google.com/drive/folders/1U1g45_d_W2IXQIo4-s5pp4lnu72SbYW6?usp=share_link

2. IOS APP download: search  "RUIDENG" in APP STORE

Android app download link: http://www.ruidengkeji.com/apk/Ruideng_V1.0.14.apk
