LCR-MF9 1.8" TFT LCD Display Multi-meter Transistor Tester Diode Triode Capacitor Resistor Test Meter MOSFET NPN PNP Triac MOS
If the quality problem of the product is found after receiving the express, please do not open the dispute at will. Please contact our after-sales customer service to solve it in a timely manner. Thank you for your support and understanding!
2024 New Transistor Tester
Functions than the previous version, increased the shutdown time countdown display
KAA zone needs to be opened manually, which reduces the damage of the instrument.
Optimize some parameters
Video demonstration in English, and precautions
http://www.mcustart.cn/zl/MF9N/MF9.html
Function

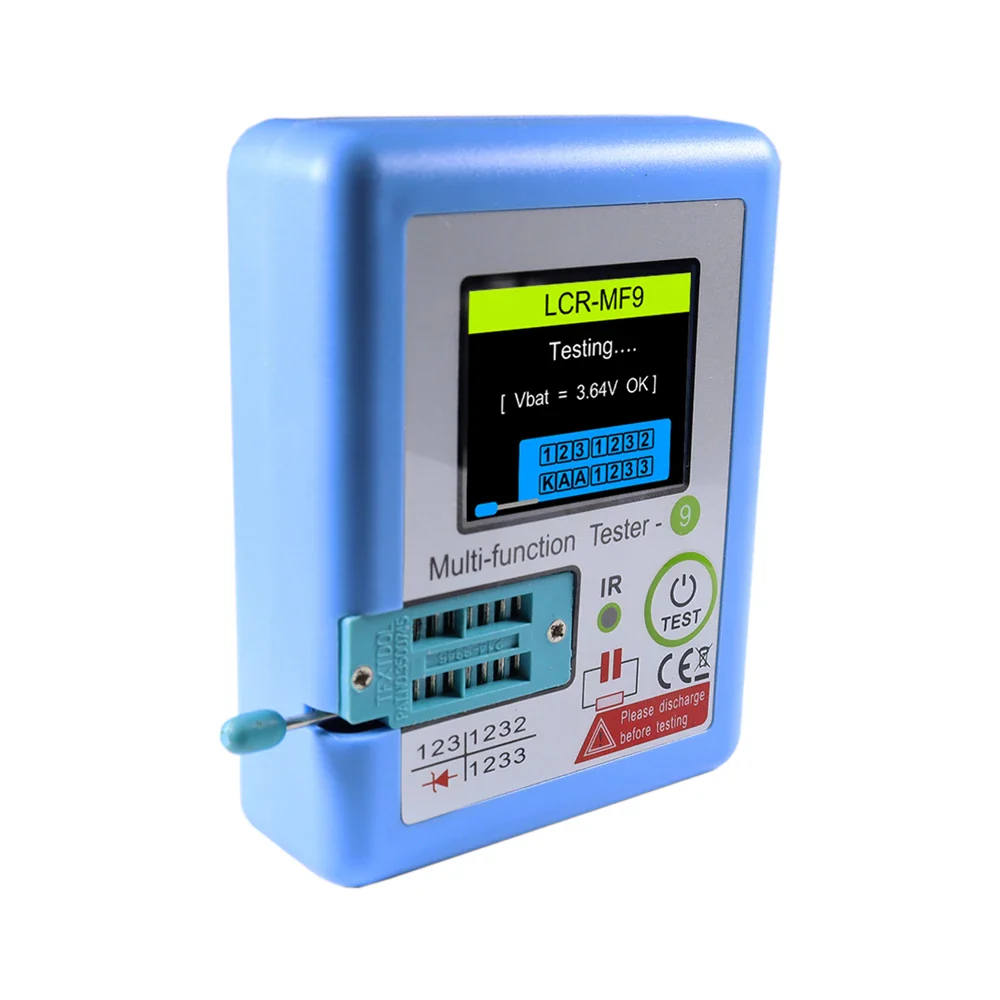

*Built-in 300MAH 4.2V lithium battery, rechargeable.
*TFT 1.8-inch color screen display, graphical display of various parameters
*Automatically detects NPN and PNP transistors, N-channel and P-channel MOSFETs, IGBTs, diodes (including double diodes), thyristors, transistors, resistors and capacitors.
*Automatically detects the pinouts of components and graphically displays them on a color screen.

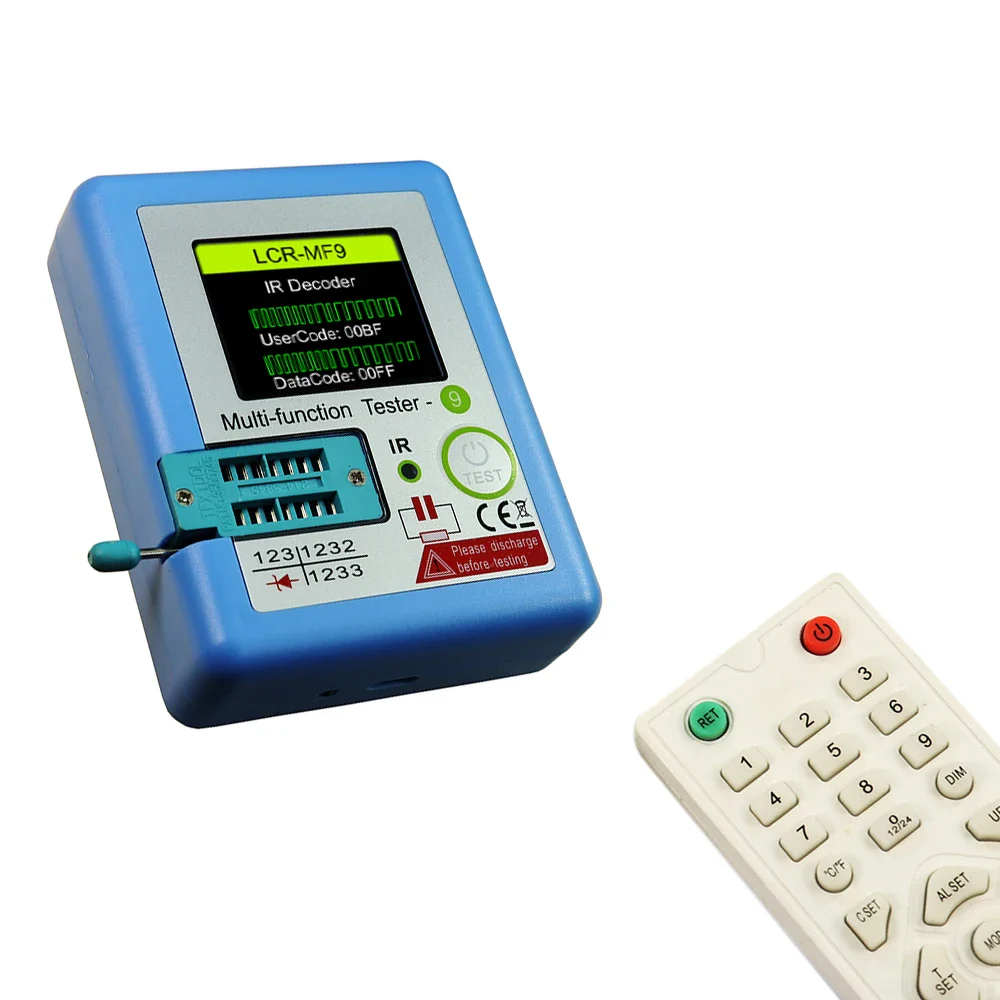

* Can detect infrared code (support NEC format infrared remote control)
*Transistors, MOSFET protection diodes, etc. can be detected amplification coefficient and the base of the determination of the forward bias voltage of the emitter transistor
*Depletion type and enhancement type MOSFETs can be distinguished.

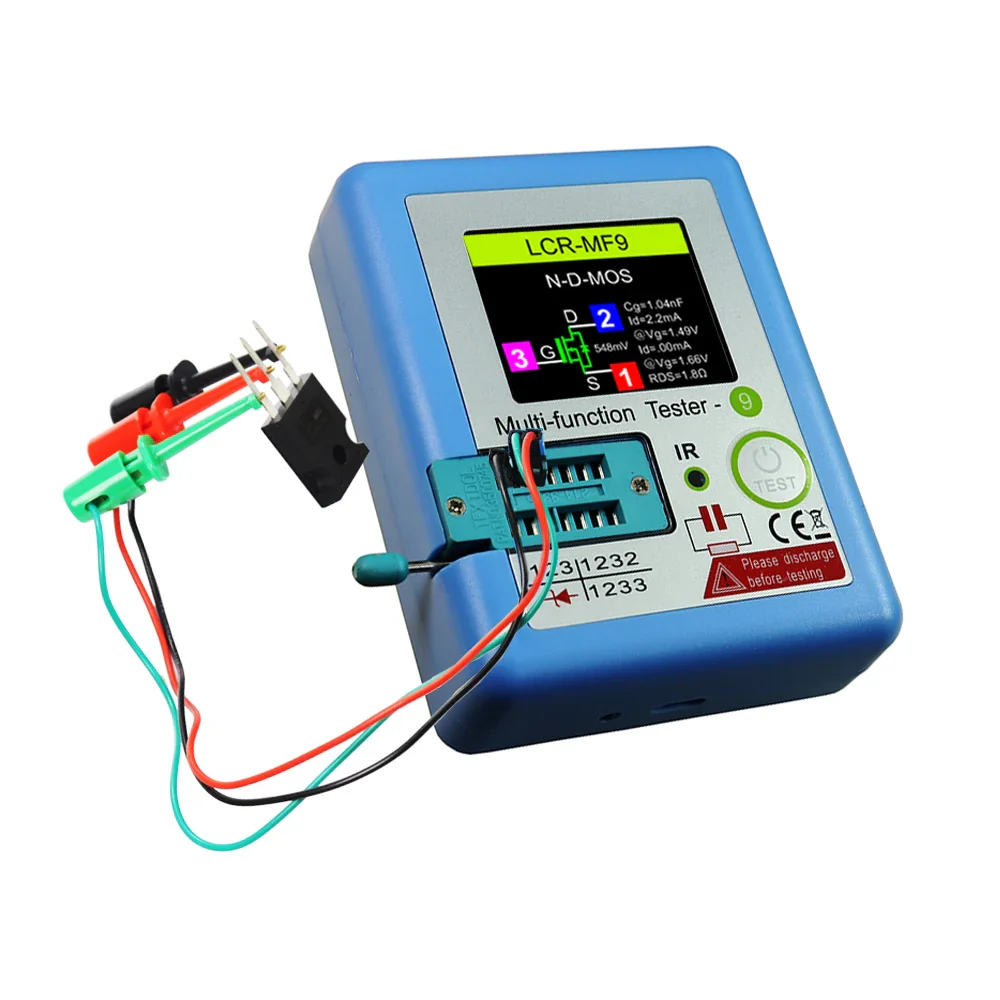

*MOSFETs with gate threshold voltage and gate capacitance can be measured.
*Supports measurement and symbol display of two resistors with a resolution of 0.1 Ohm and a maximum measurement value of 50M Ohm.
*VOSS and ESR can be displayed for capacitors higher than 10UF.
*Measures inductance for resistances below 2100 ohms and DC resistance for inductances below 10UH.
*Higher test speed, expiration date component test: in 2 seconds (except in the larger capacitors, large capacitance measurement also need a longer time)
* Equipped with a calibration needle, calibrated to test small resistors more accurately
*One button operation, power on test
*Power consumption off mode: less than 20 nA
*Automatic shutdown function, saving battery energy, improve the duration.
Product Accessories:
Tester main unit X1
Test cable X3
USB cable X1
