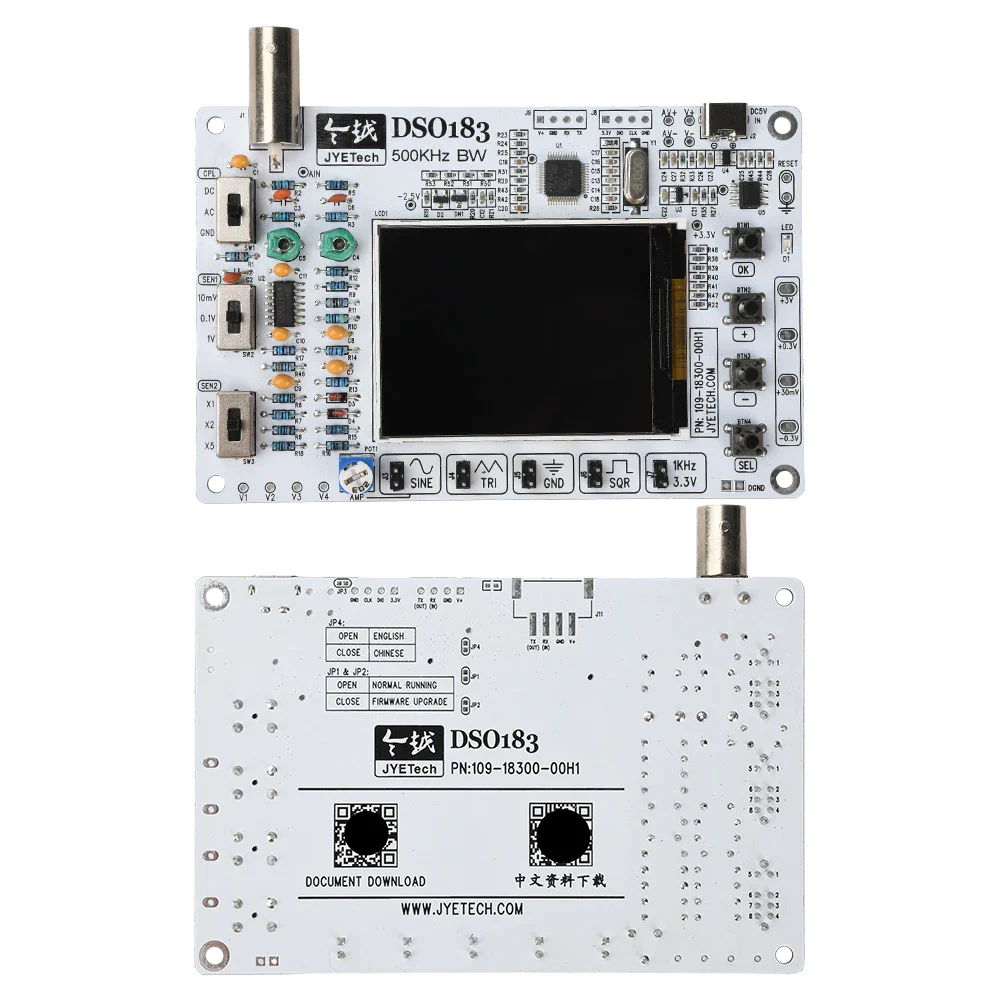

DSO183 DC 5V DIY Digital Oscilloscope Kit 0-500kHz Oscilloscope Soldering Kit Type-C Interface For Electronics Enthusiasts
Product Features:
1. Single-board design: Compact integrated structure for straightforward installation and high stability, suitable for diverse experimental environments
2. Built-in signal generator: Integrates multiple waveform outputs including sine and triangle waves to meet varied testing requirements

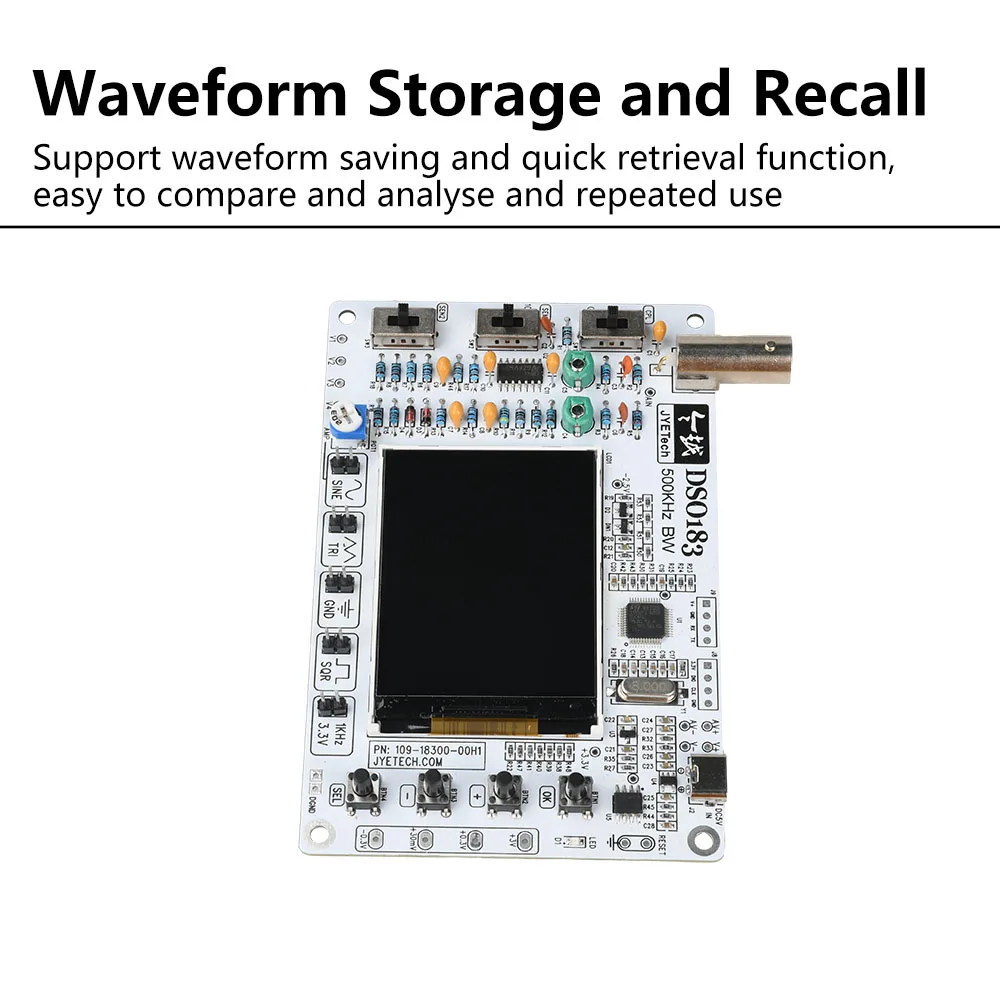

3. Waveform storage and recall: Supports waveform saving and rapid retrieval for comparative analysis and reuse

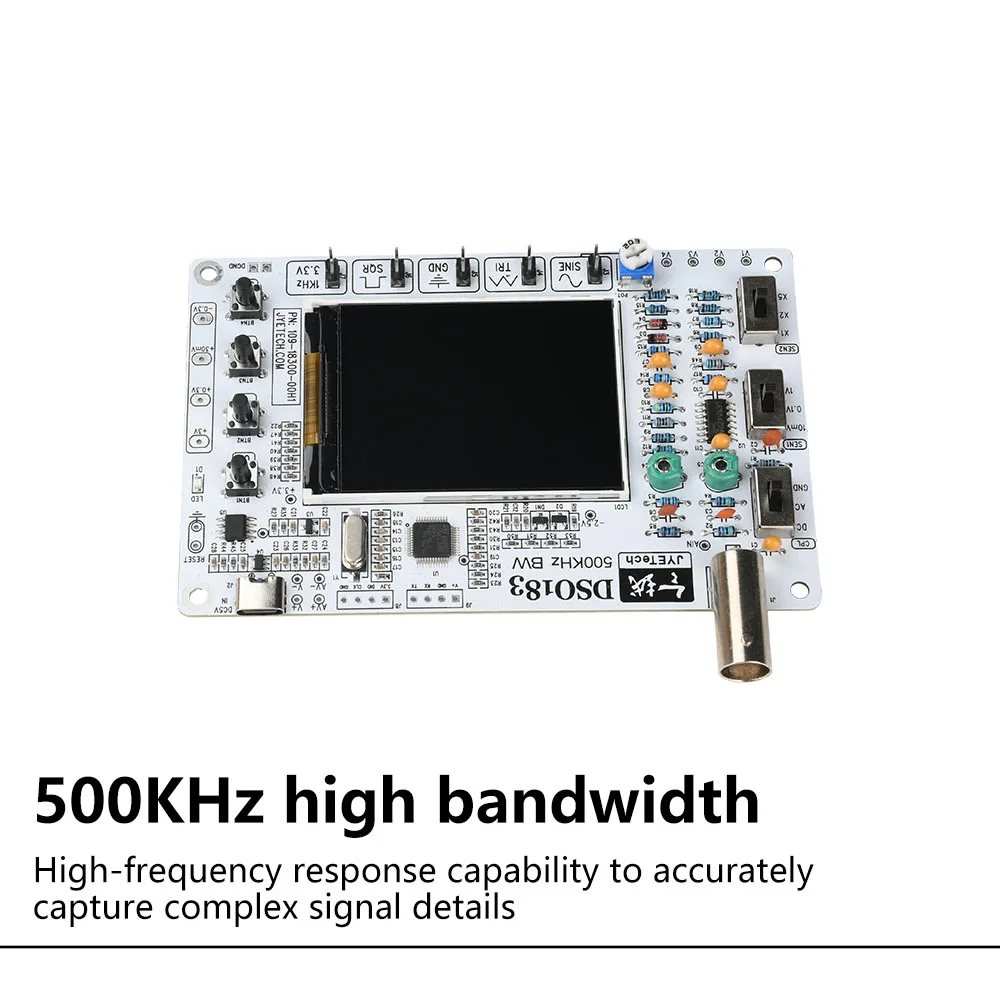

4. 500kHz High Bandwidth: Capable of high-frequency response, accurately capturing intricate signal details

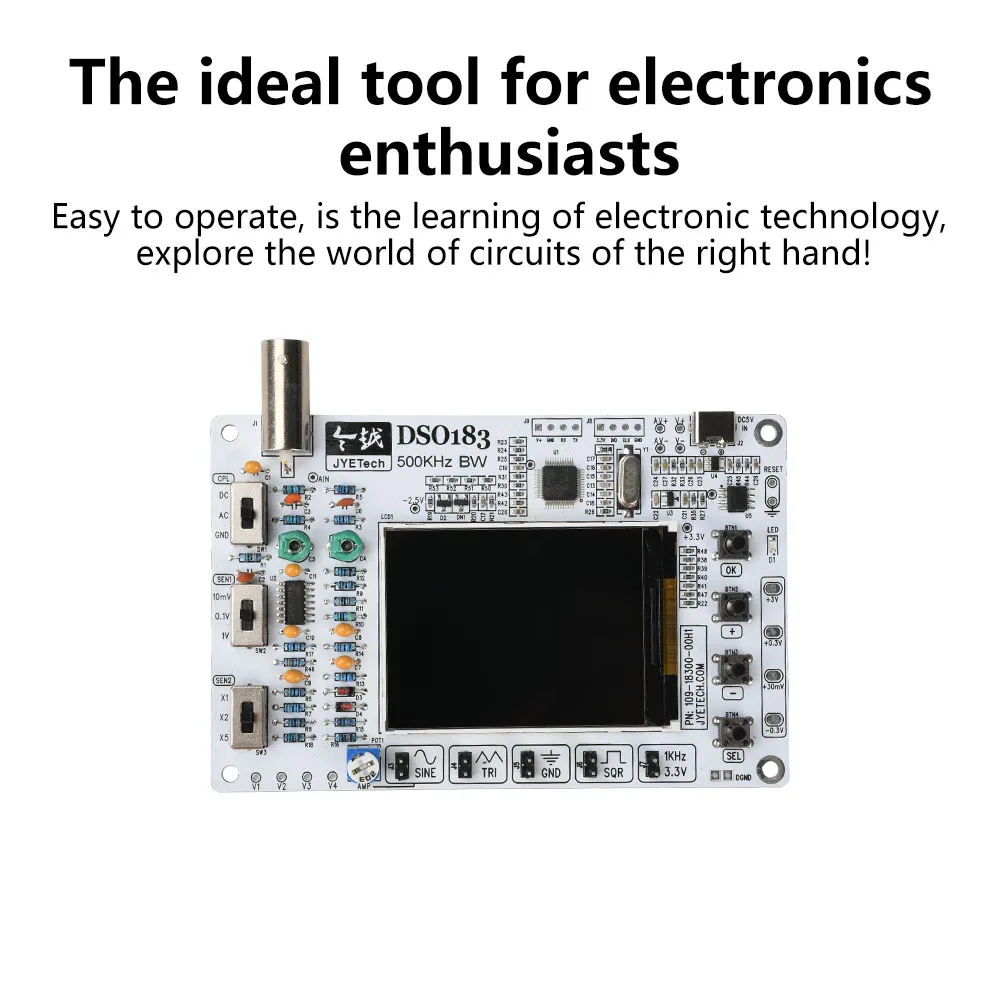

5. Ideal Tool for Electronics Enthusiasts: Simple operation with robust functionality, serving as a capable assistant for learning electronics and exploring circuitry
Product Specifications:
Bandwidth: 500kHz
ADC Resolution: 12-bit
Real-time Sampling Rate: 1.5Msps
Waveform Buffer Length: 1024 points
Vertical sensitivity range: 10mV/div - 5V/div
Input impedance: 1MΩ
Maximum input voltage: 50Vpk
Coupling modes: DC, AC, GND
Horizontal time base range: 1μs/div - 500s/div
Trigger modes: Auto, Normal, Single
Trigger edge: 1μs/div - 500s/div
Power supply: DC 5V (supplied via USB [Type C interface])
Current consumption: <100mA
Product dimensions: 118 × 76 × 12mm

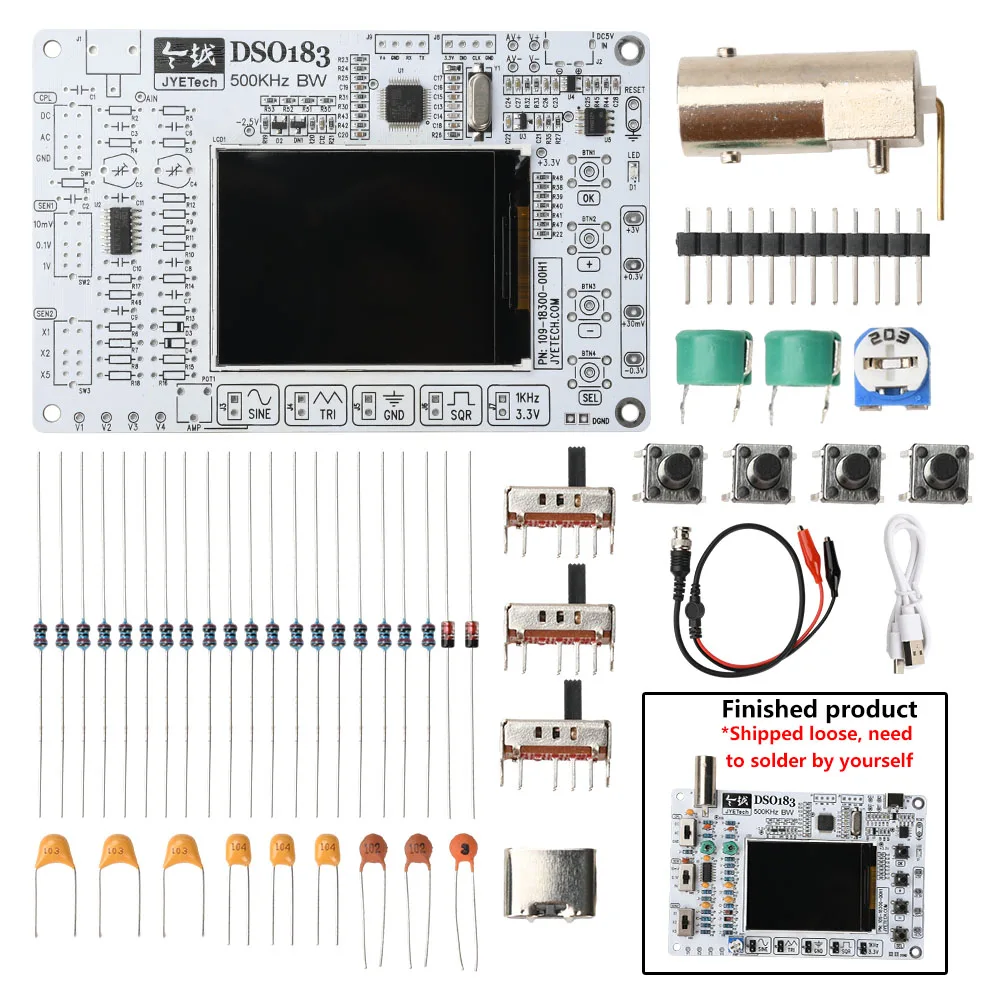

Packing list:
DIY kit components ×1 (without enclosure)
