DC 9-55V 40A 2000W PWM DC Motor Speed Regulator High Power Linear Speed Control 9V 12V 24V 36V 48V





DC 9-55V 40A 2000W PWM DC Motor Speed Regulator High Power Linear Speed Control 9V 12V 24V 36V 48V



Specifications:
Input voltage: DC9-55V
Output Voltage: Linear under load
Output current: 0-40A
Continuous power: 2000W
Speed regulation type: flow regulation
Speed regulation mode: potentiometer (linear)
Speed range: 0-100%
Control frequency: 25KHZ

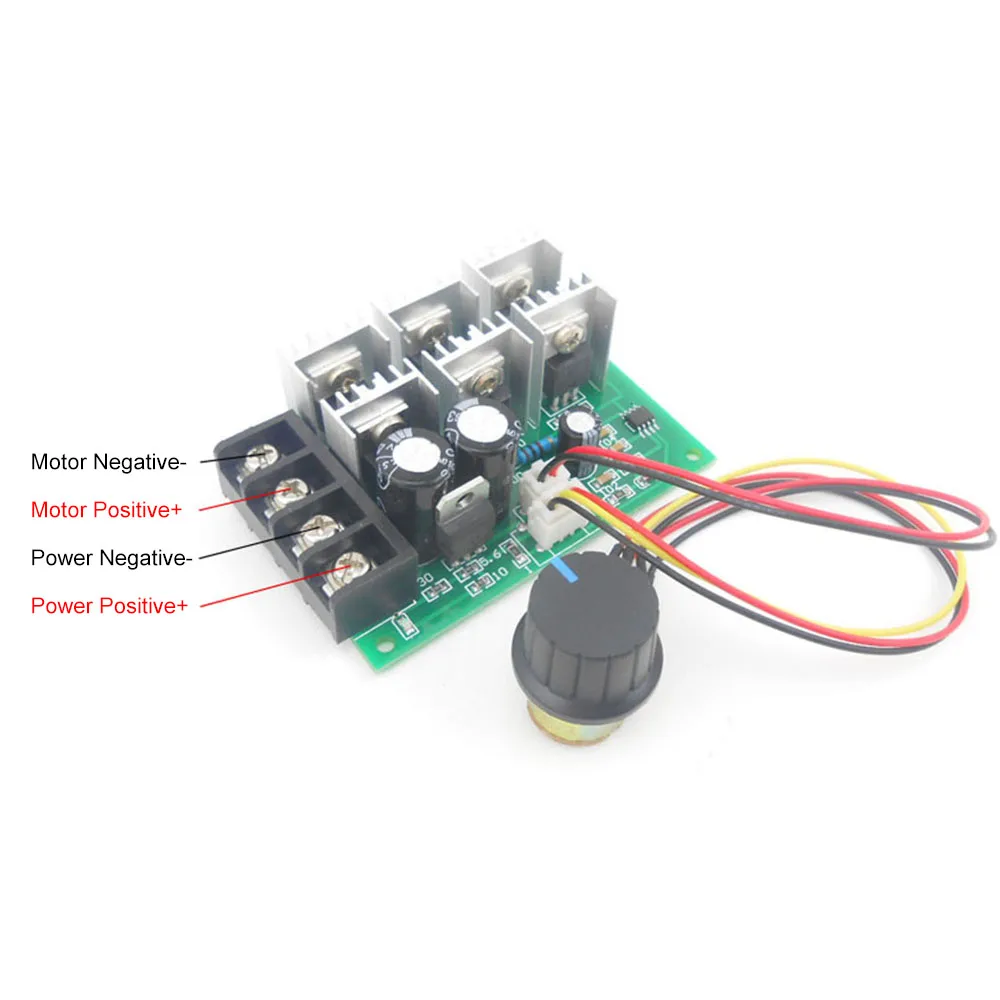

Wiring Type: Barrier Terminal Block
Knob Specifications: 100K (148)

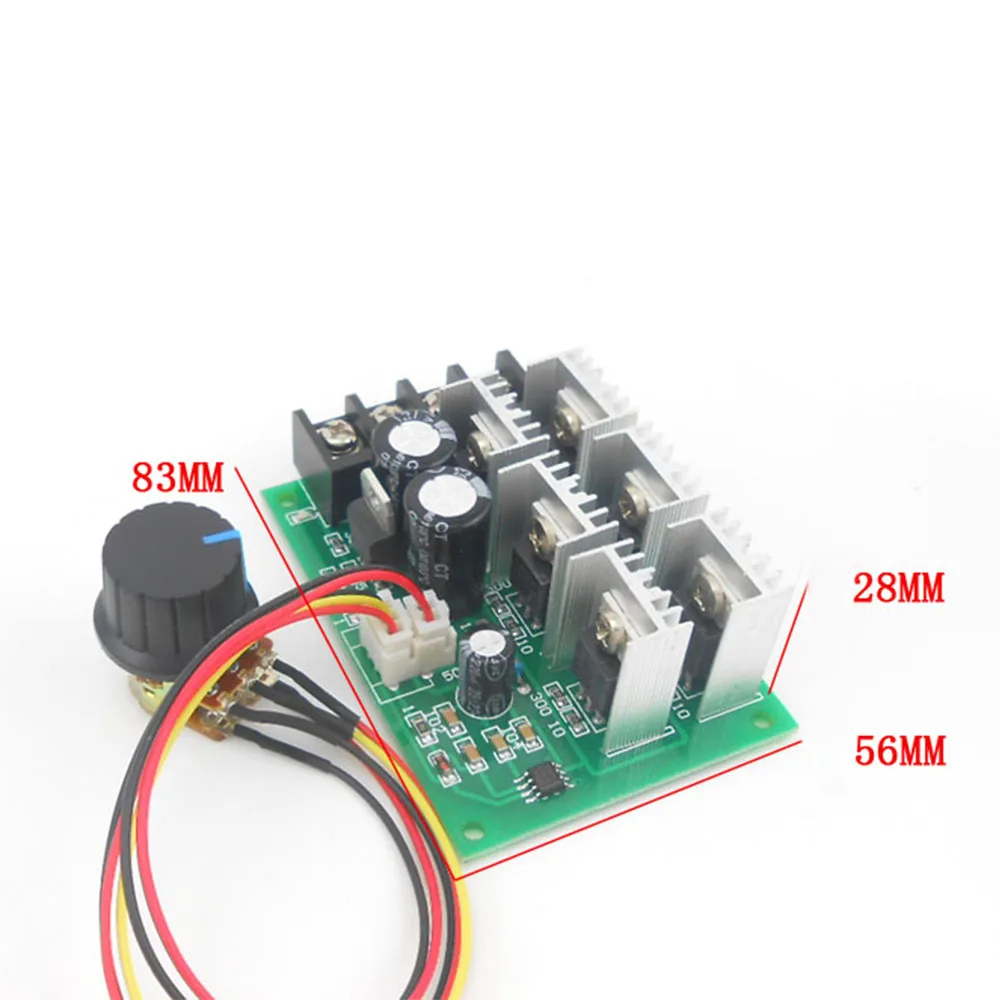

Module size: length*width*height 83MM*56MM*28MM
Motherboard installation size: length * width 72MM * 48MM
Potentiometer according to the installation hole: 7MM

Package Included:
Motor governor X1
