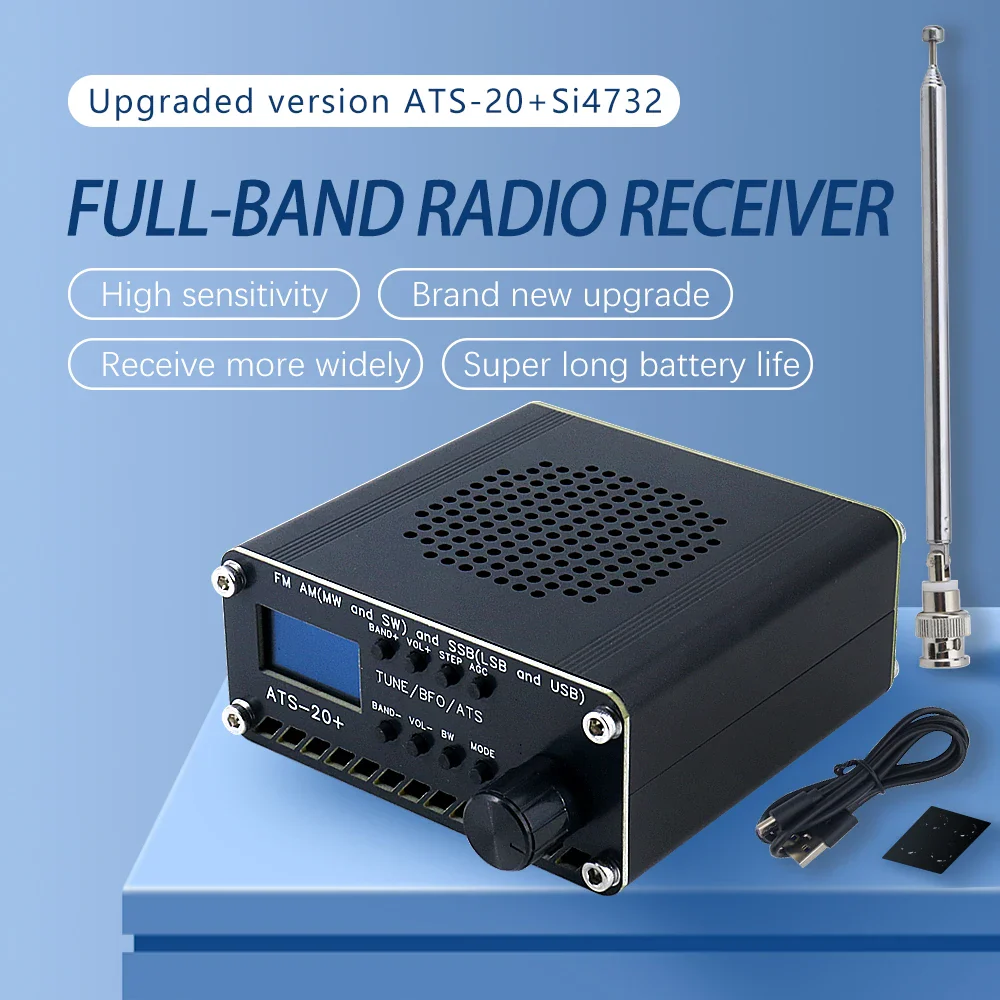

ATS-20+ Si4732 Full Band DSP Radio Receiver With SSB/FM/AM/LW/SW Portable Shortwave SDR Tuner with Antenna/Type-C

【Product Features】

• Upgraded DSP Receiver – Powered by Si4732 chip and ATS-25 encoder, offering stable performance, high sensitivity, and long lifespan.

• Full Band Coverage – Supports FM, AM (MW), LW, SW, and SSB (USB/LSB), preloaded with 22 commercial & amateur radio bands.

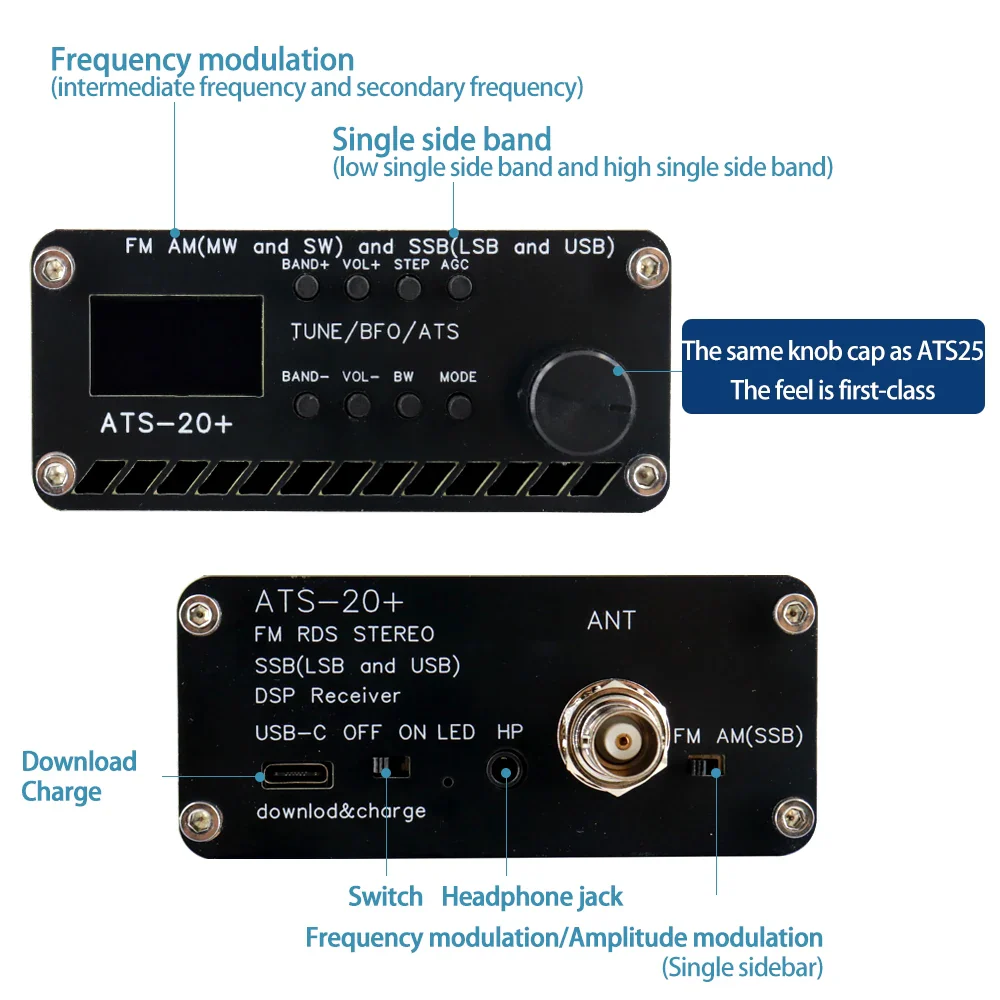

• OLED Display & Rotary Tuner – 0.96 inch OLED screen with smooth tuning knob for precise frequency control.

• USB Type-C Interface – Easy charging and data connection with modern devices.

• Built-in Battery – Rechargeable lithium battery with long standby time.

• Compact & Portable – Lightweight aluminum alloy shell, ideal for outdoor DXing, hobby radio fans, and SDR learners.

【Technical Specs】

• Model: ATS-20+ Si4732

• Display: 0.96" OLED

• Audio Output: 3.5mm headphone jack

• Charging Port: USB Type-C

• Battery: ≤1000mAh lithium battery

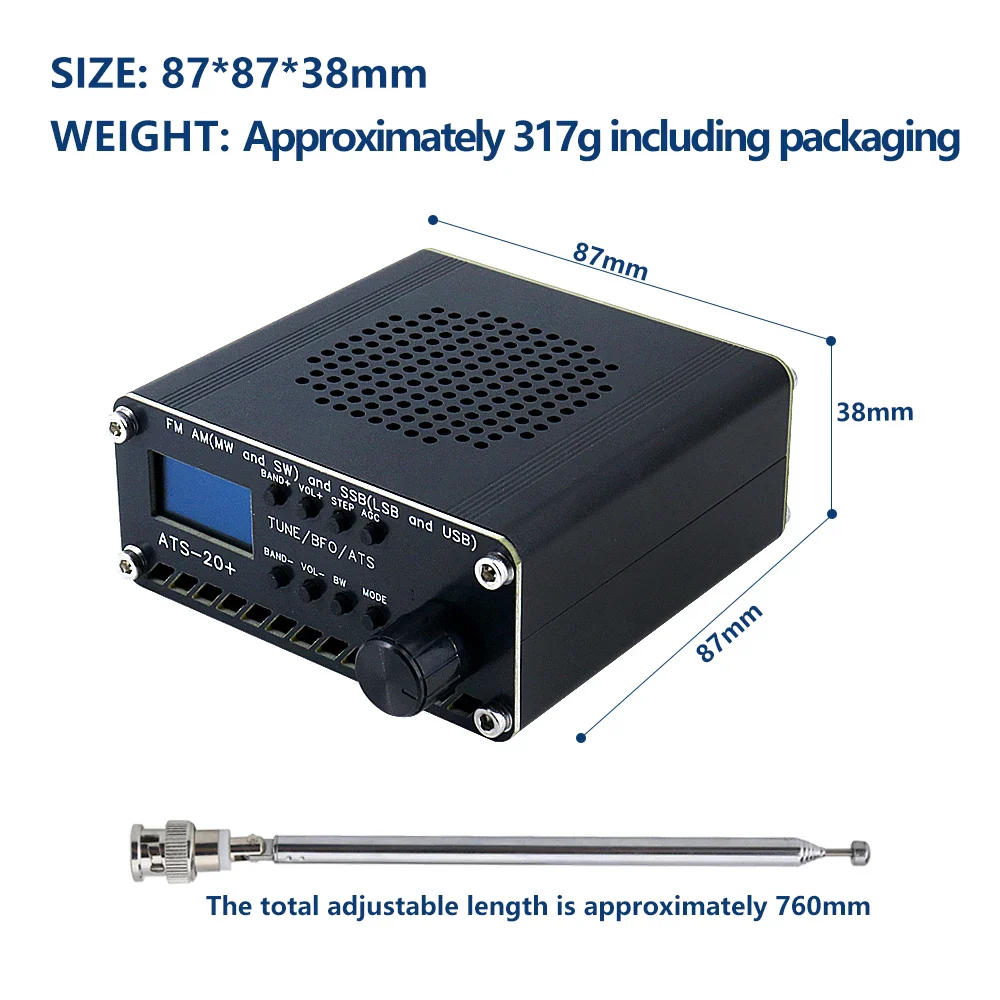

• Dimensions: 87 × 87 × 38 mm

• Antenna Length: up to 760 mm

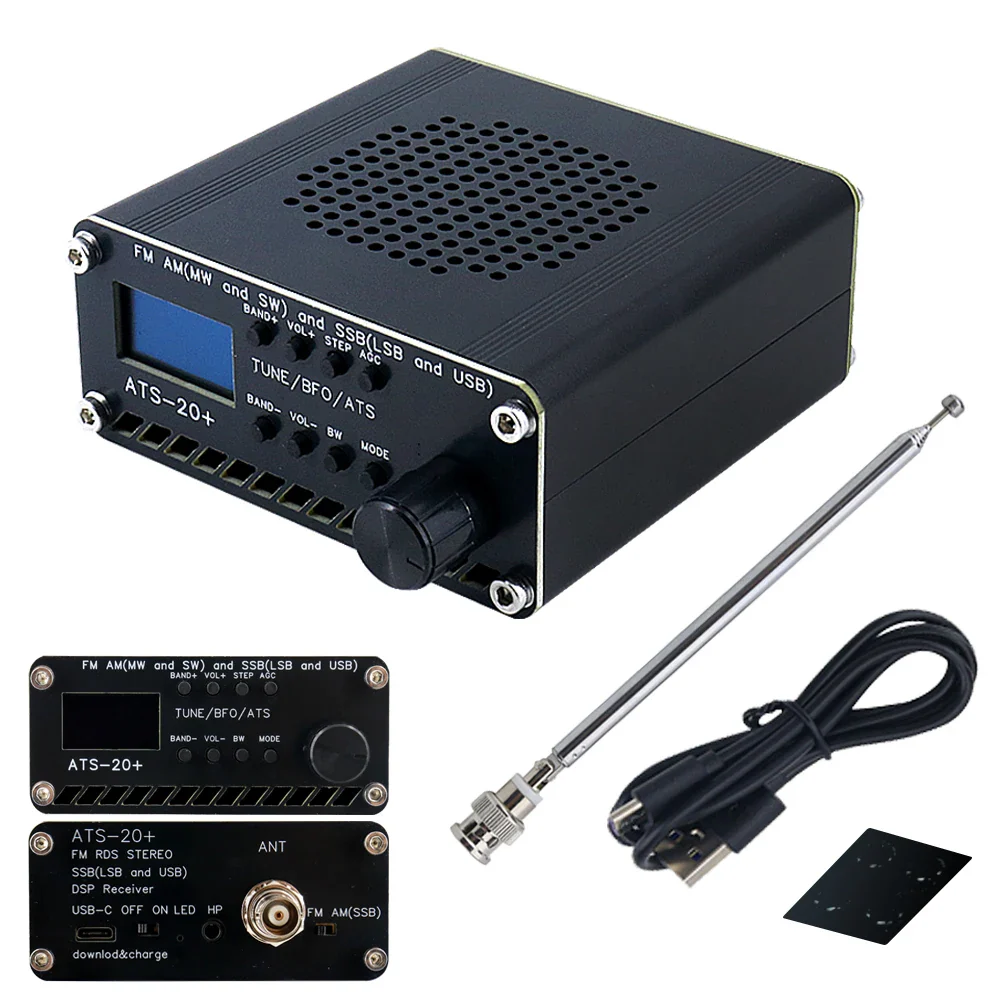

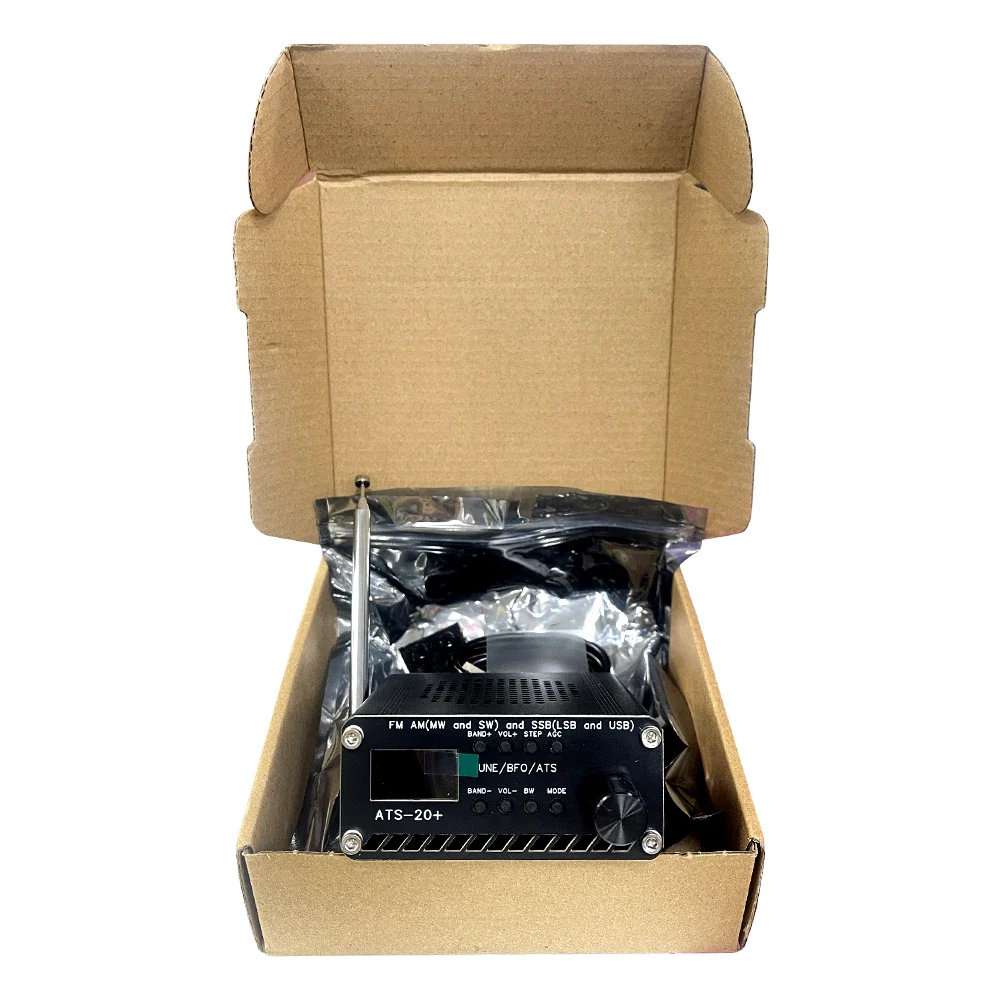

【Package Includes】

• 1 × ATS-20+ Receiver

• 1 × Type-C Charging Cable

• 1 × Telescopic Antenna

• 1 × Anti-slip Pad

• 1 × User Manual

【Application Scenarios】

• Ham radio listening & scanning

• Outdoor signal tracking / DXing

• Radio engineering education

• Ideal gift for hobbyists & collectors
