AT16 Six-Channel Coaxial Remote Antenna Switching Kit - High Power / Base Station / Handheld Radio Universal
Core feature：
1. Wide compatibility:
Designed specifically for base station radio equipment and portable as well as handheld radio devices, it caters to the diverse needs of both amateur enthusiasts and
professional users.
2. Standard SO-239 interface:
Equipped with the universal SO-239 interface, it enables easy connection of various antennas, ensuring seamless integration with most radio devices on the market.
3. One-click switching, convenient operation:
Supports quick switching among 1 to 6 antennas. No complex settings required, allowing you to easily select the best antenna and optimize signal reception.
4. Compact design, saving space:
The overall size of the machine is only 15×15×5 centimeters (excluding protrusions), with a compact structure. It can be flexibly placed in various working areas without occupying extra space.
5. High power handling and high temperature resistance:
- Power handling capacity: 800 watts PEP, suitable for high-power transmission requirements.
- Frequency range: Covers 1.8 to 55 MHz, widely applicable to shortwave and medium-high frequency bands.
- Temperature tolerance: Capable of withstanding a working environment of up to 105°C, ensuring stability and reliability even in harsh conditions.
Product Specifications:
- Product Model: AT-16
- Frequency Range: 1.8 MHz – 55 MHz
- Maximum Power: 800W PEP
- Operating Voltage: 12V ± 25%
- Interface Configuration: 1 input, 6 outputs (SO-239 interface)
- Applicable Devices: Base station radio equipment / Portable / Handheld radio equipment
- Dimensions: 15 × 15 × 5 cm (excluding protruding parts)
- Maximum Operating Temperature: 105°C

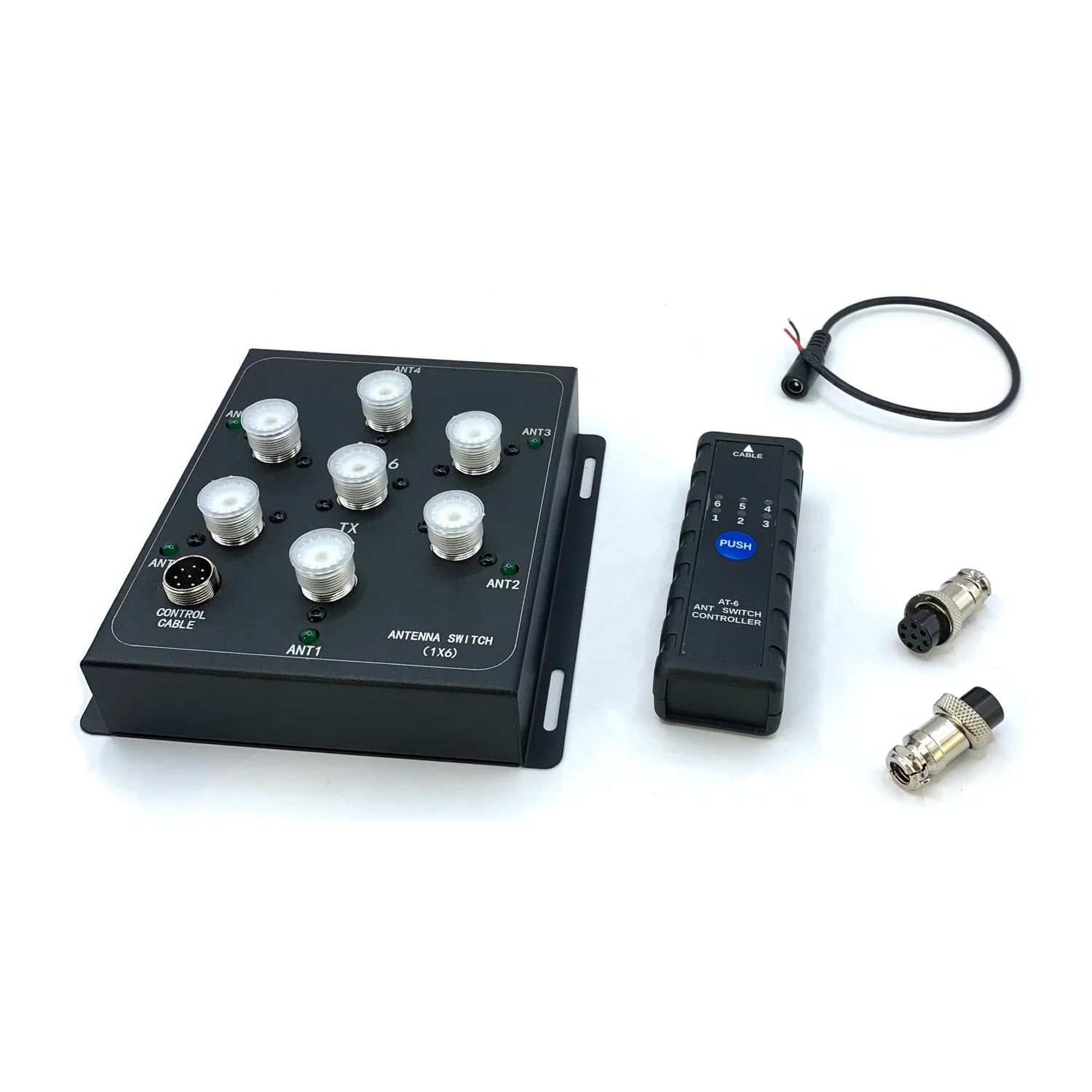

Package List:
- AT16 Switcher Kit × 1
- Controller Device × 1
- GX16 Connectors × 2
- DC5525 Female Short Cable (25cm) × 1
