Features:

️ REMOTE SWITCHING CONVENIENCE – Operates on +12V control voltage for effortless antenna switching from a distance. Perfect for antennas mounted in high or hard-to-access locations like roofs or towers.



️ VERSATILE CONNECTIVITY – Connect up to 4 different antennas to 1 transceiver. Ideal for multi-band and multi-directional setups, offering greater operational flexibility.



️ HIGH POWER HANDLING – Supports up to 500W PEP, making it suitable for high-power transmission applications including amateur radio, broadcasting, and more.



️ LOW INSERTION LOSS – Advanced circuitry minimizes signal loss, ensuring maximum transmission efficiency and clearer signal quality.



️ ROBUST CONSTRUCTION – Built with premium materials and engineered for reliability, even during extended high-power operation.



️ UNIVERSAL COMPATIBILITY – Equipped with standard SO-239 connectors for easy integration with most coaxial cables.



Specifications:

- Antenna Inputs: 4

- Output: 1 (to radio)

- Frequency Range: 1.8–60 MHz

- Impedance: 50 Ohm

- Max Power: 500W PEP

- Control Voltage: +12V DC

- Connector: SO-239 (UHF)

- Size: 10 x 11.5 x 3.5 cm

Package List:

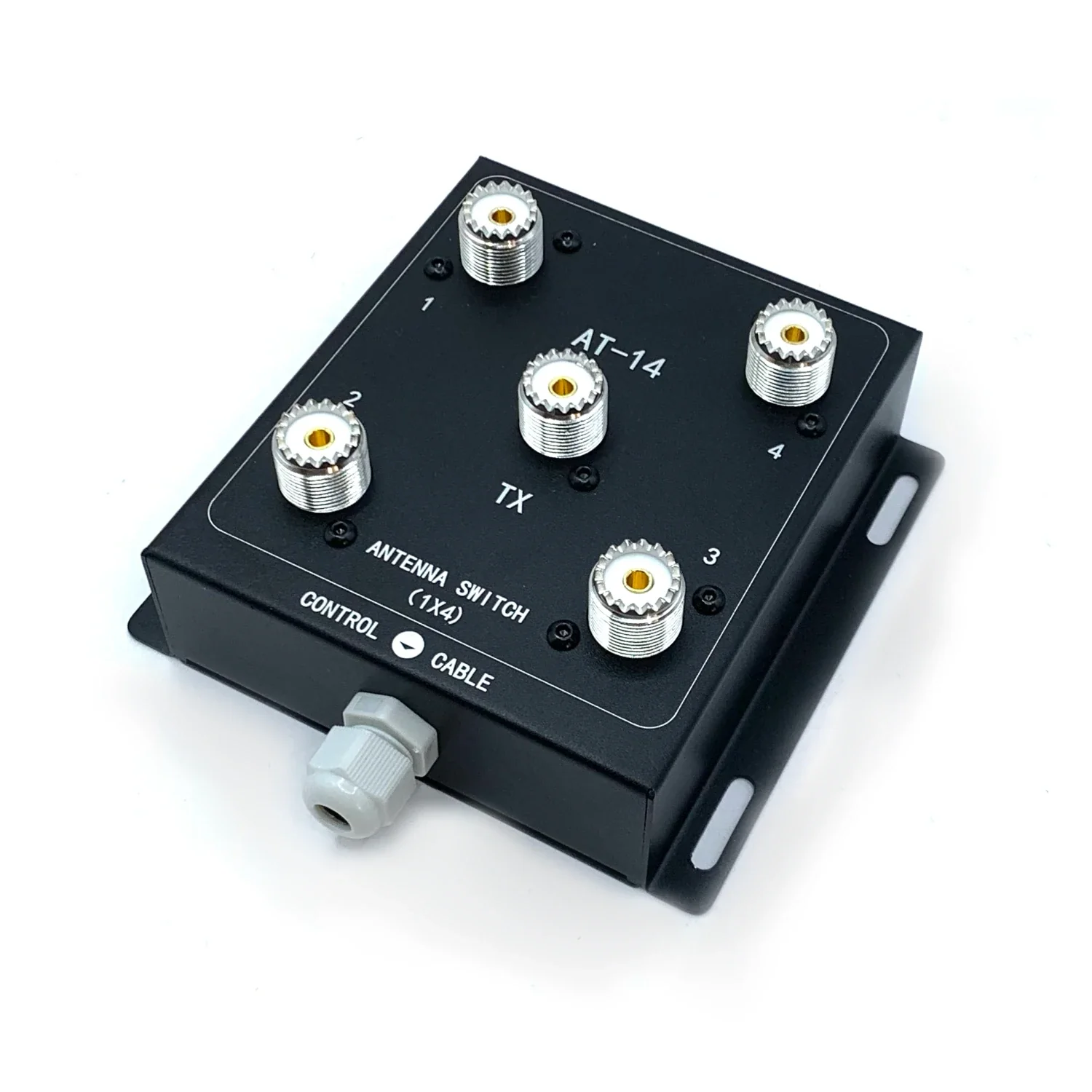

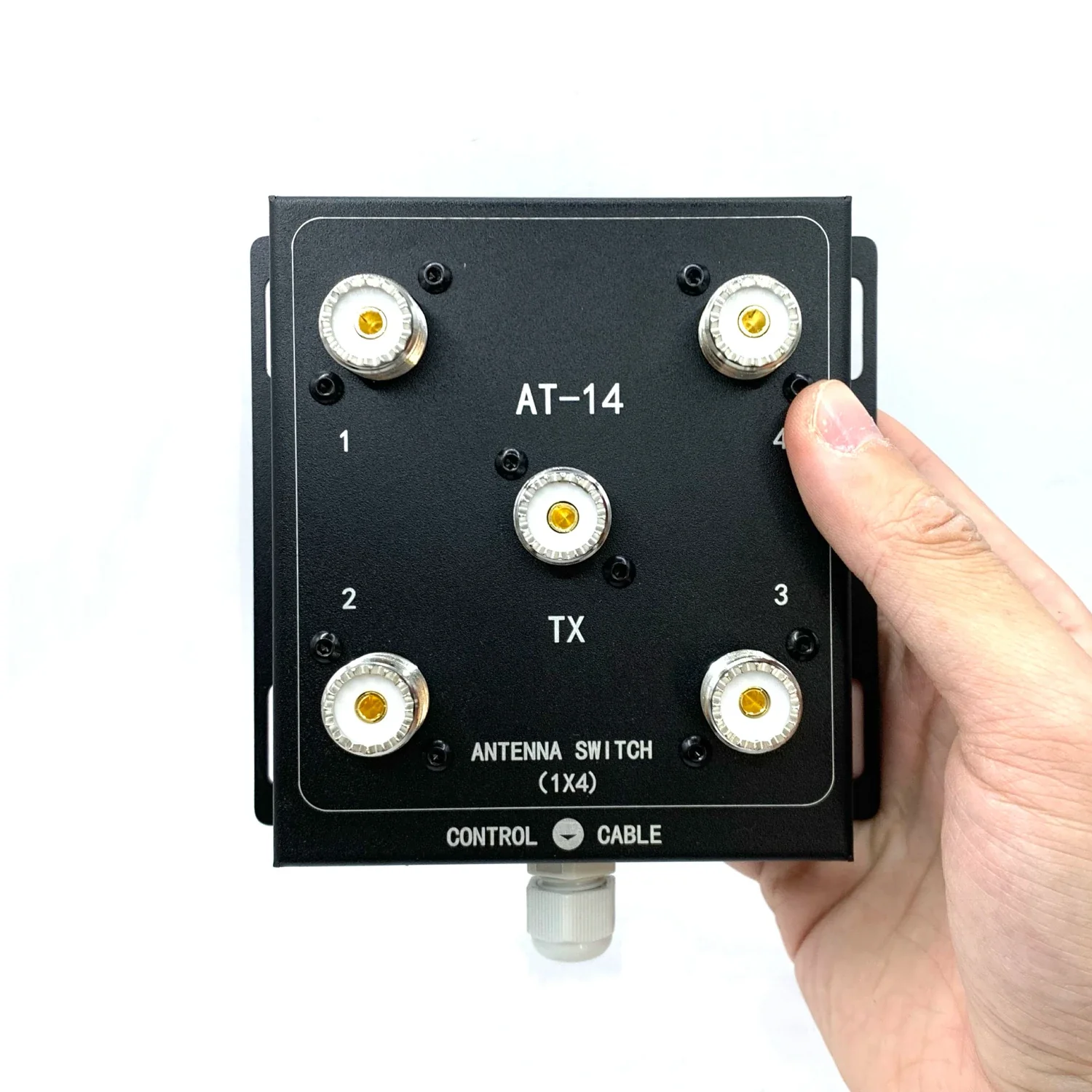

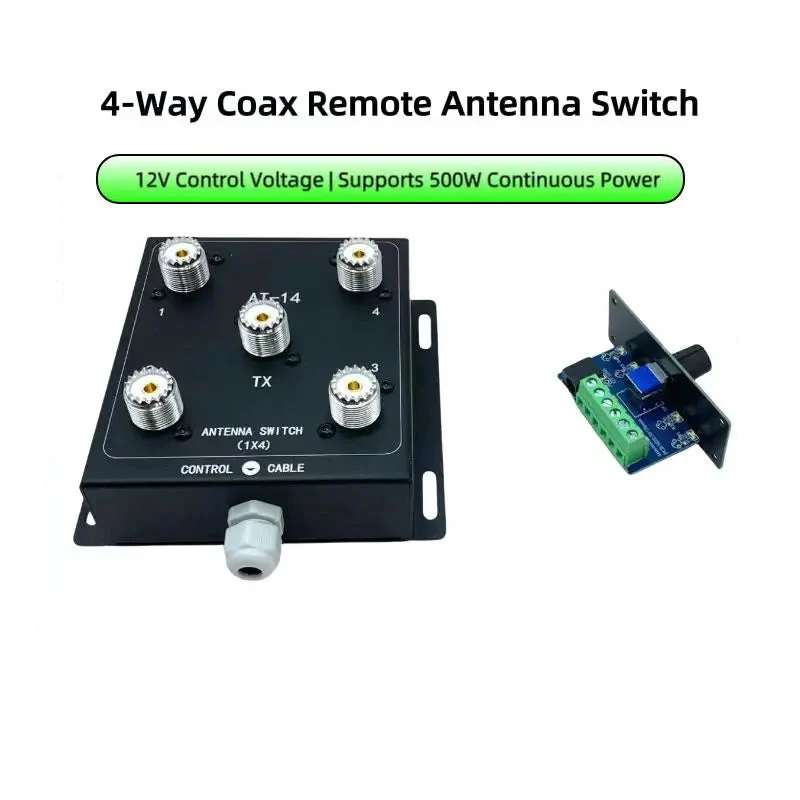

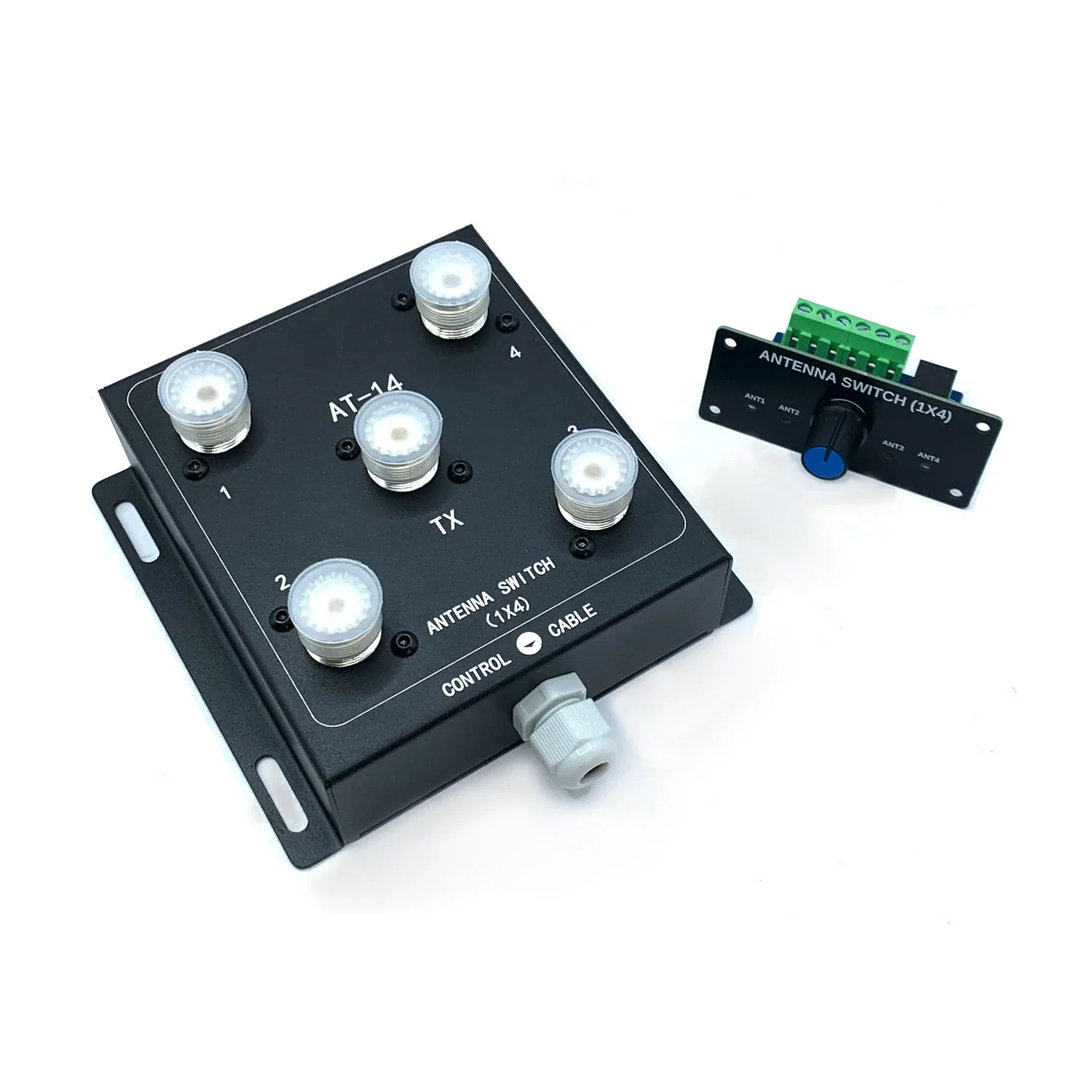

1 x AT-14 Antenna Switch

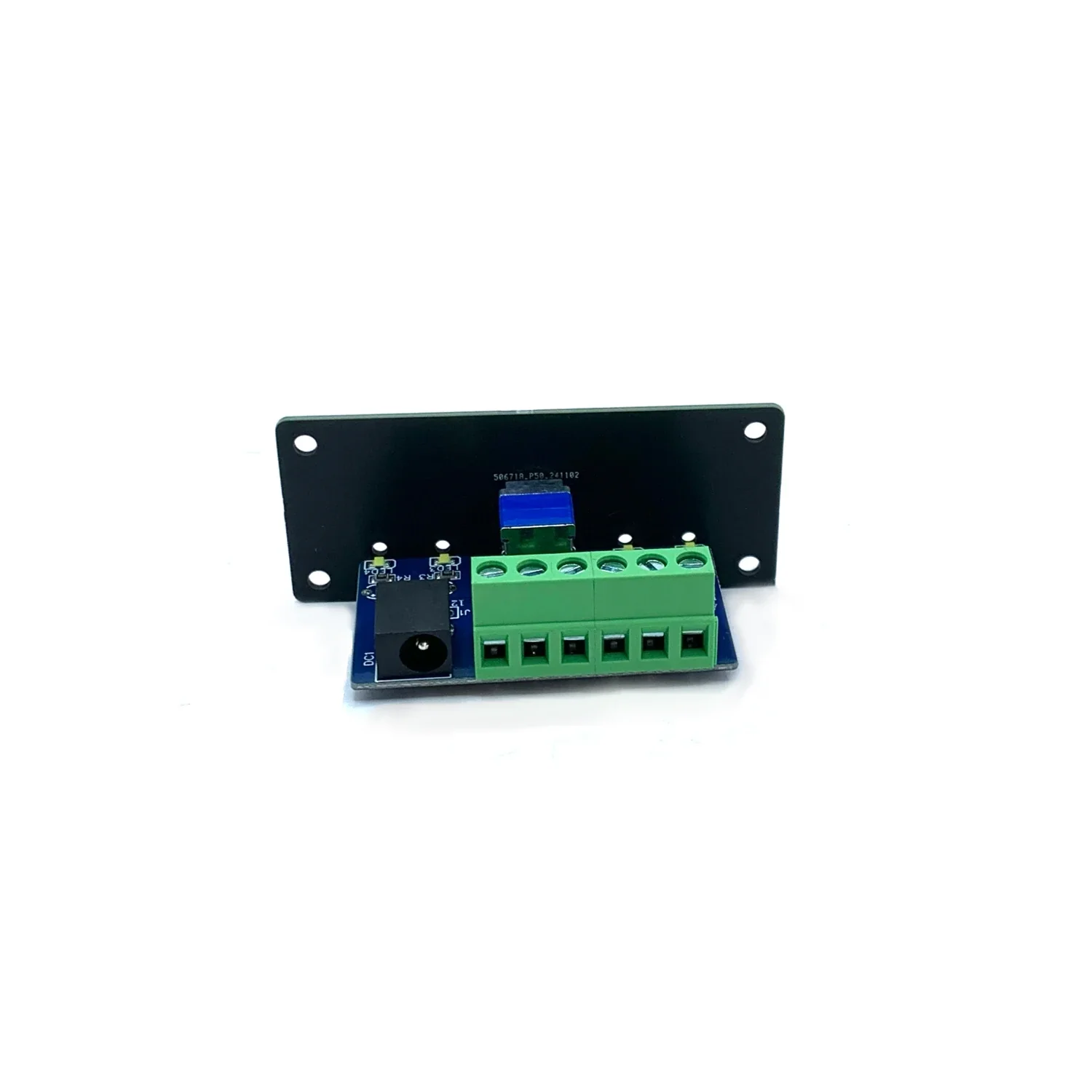

1 x Controller Kit
