433Mhz Wireless Remote Control EV1527 Learning Code Transmitter 2 bottons DC 12V 10A RF Relay Receiver

433Mhz Wireless Remote Control EV1527 Learning Code Transmitter 2 bottons DC 12V 10A RF Relay Receiver

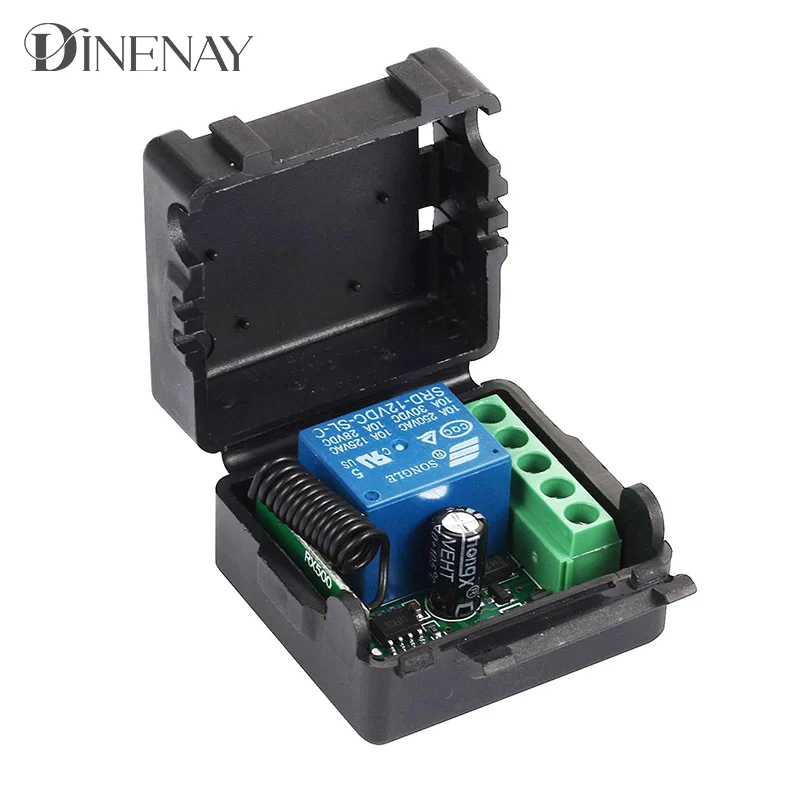

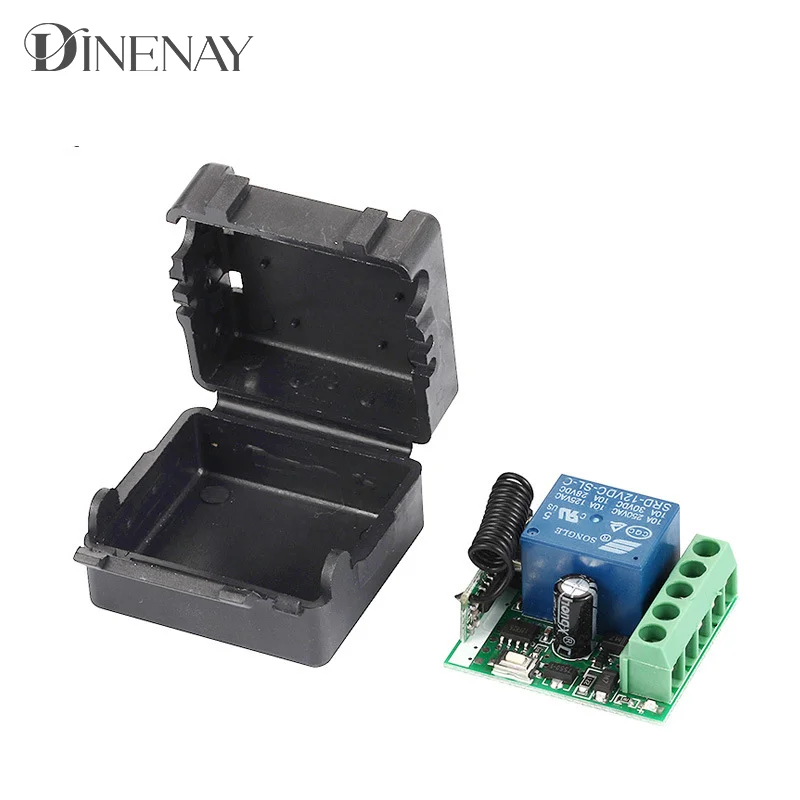

12V single channel receiving 433 frequency one [with shell]





Single-channel controller technical parameters:



1. Working voltage: 12V

2. Standby current: 8mA

3. Working frequency: 433Mhz

4. Coding type: fixed code, learning code

5. Receiving sensitivity -105dbm

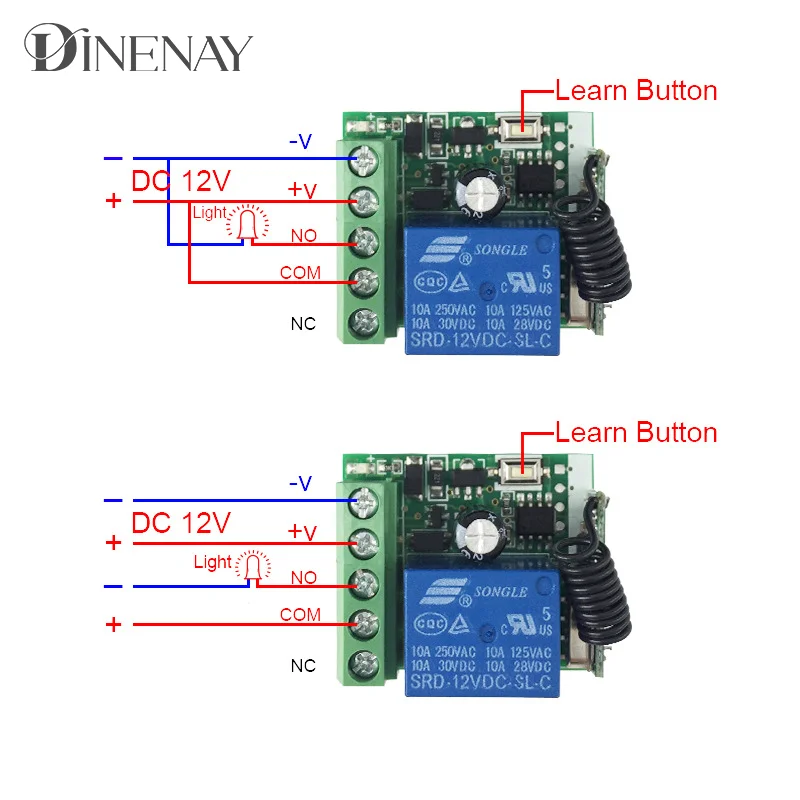

6. Output: 1-way unconnected switch (jog/self-lock/interlock can be set by yourself)

7. Load recommendation: 10A relay (reservation should be reserved in use) recommended load < 90w, inductive load < 50w and not suitable for frequent start and stop

8. Output mode: electric shock output (can control AC, DC)

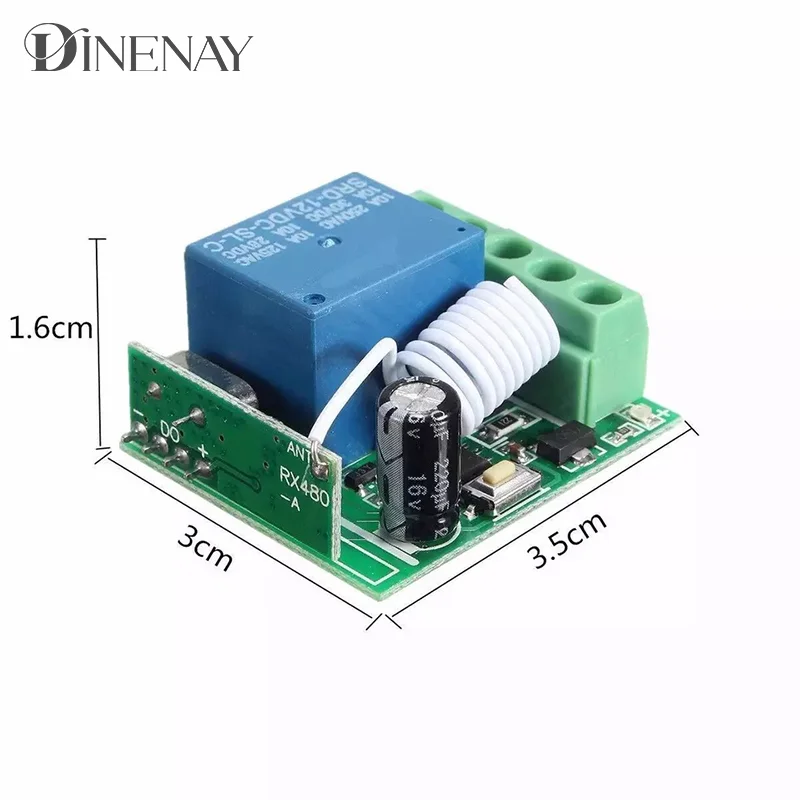

9. Circuit board size: 34*31*16MM

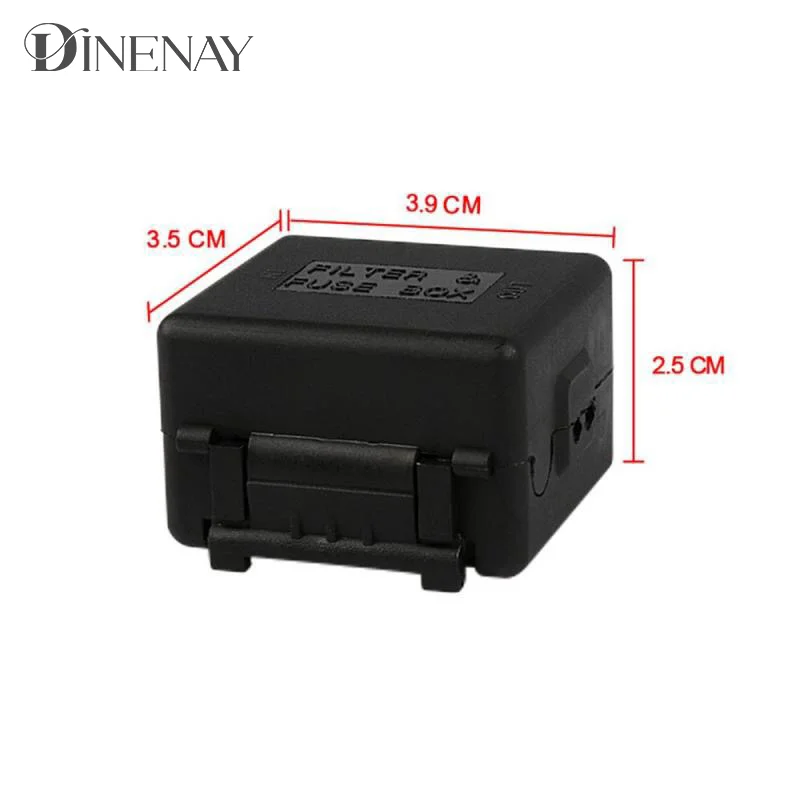

10. Shell size: 42*39*26MM
