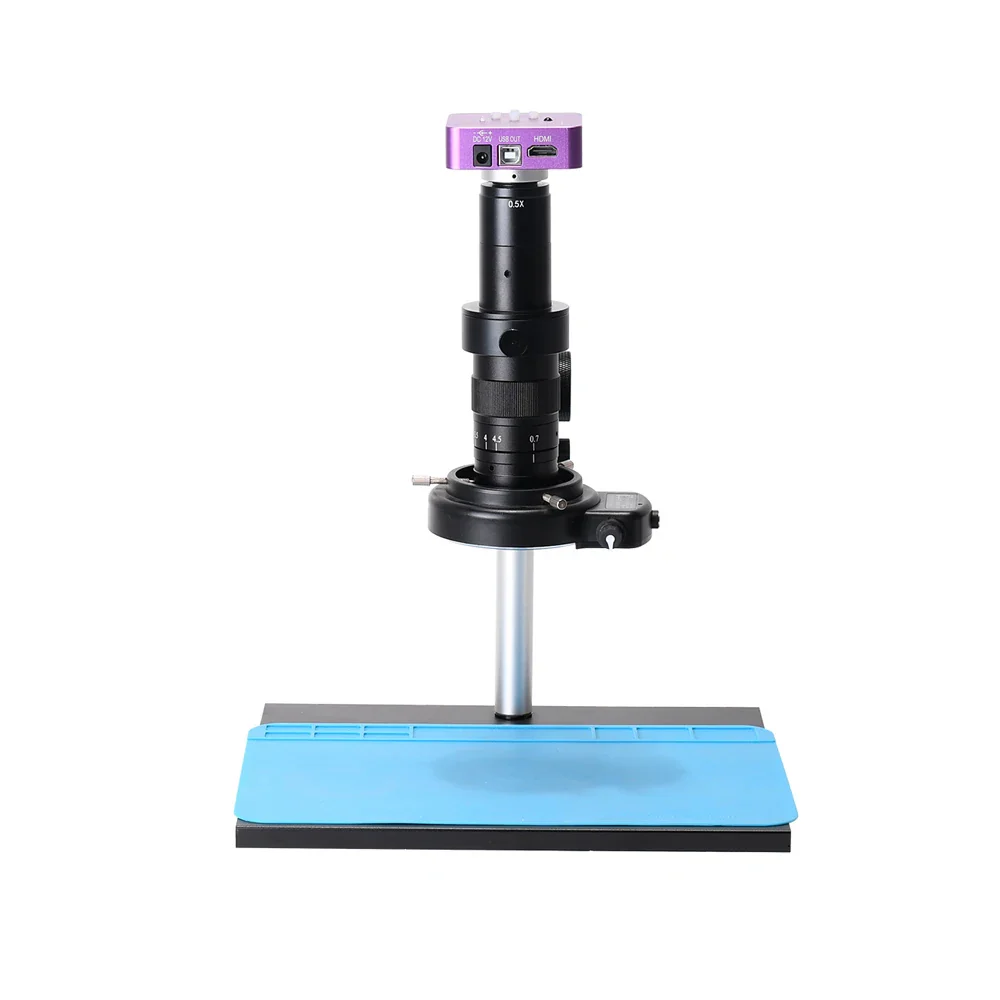

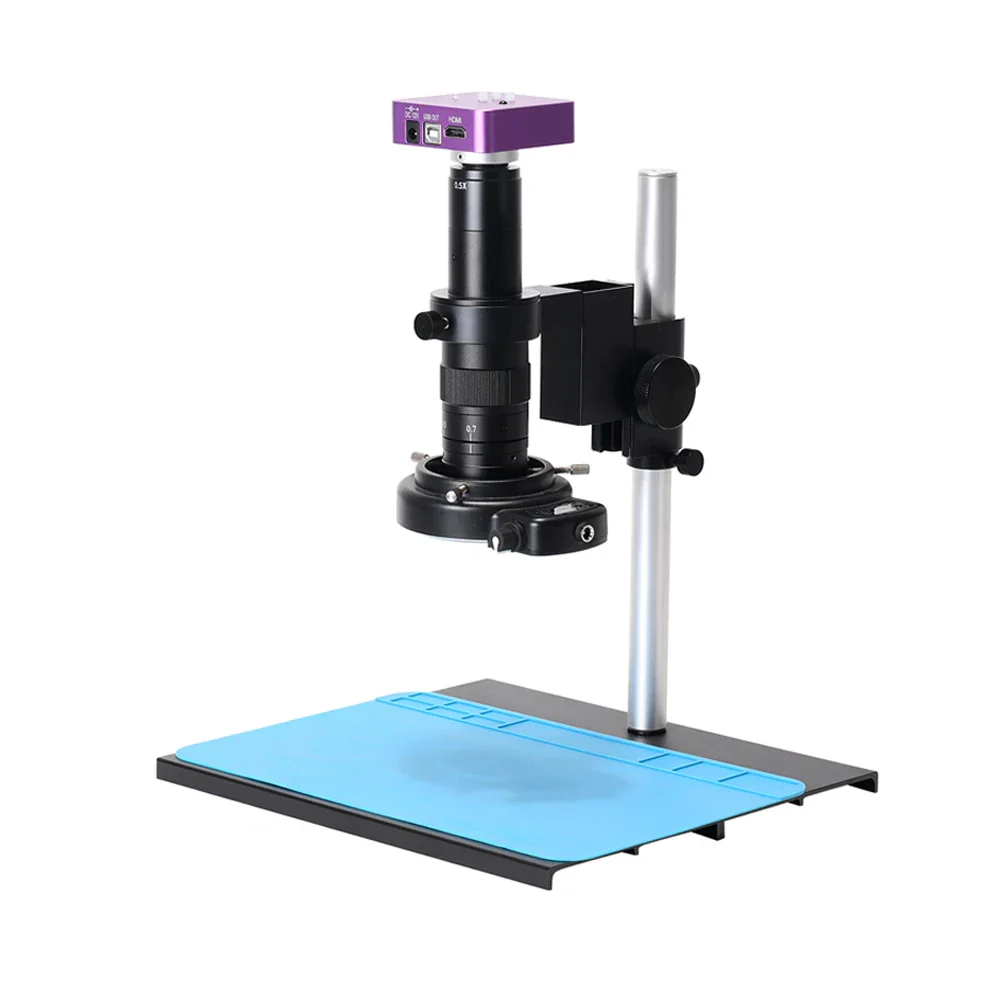

4K 51MP HDMI USB Industrial Digital Video Microscope Camera Monocular180X Zoom C-Mount Lens For PCB Phone Repair Soldering

Feature:

1. PC supports for multiple system, supports for Windows XP/7/8/10 system.

2. Comes with a 180X C-mount zoom lens for industrial microscope camera.

3. This 51MP industrial microscope camera is suitable for repairing industry.

4. Adopts high quality metal housing, sturdy, durable and has long life.

5. High resolution and dual output, which makes it more convenient to use.

Specification:

Condition: 100% Brand New

Item Type: Microscope Camera

Model: High Definition Multimedia Interface USB2.0 Dual Output Camera

Image Format: jpg

Image Resolution: 51MP

Video Format: MP4 (for Memory Card)

Video Recorder: 1080P at 60FPS

High Definition Multimedia Interface Video Resolution: 1920x1080 at 60FPS （For HDMI）

USB Video Resolution: 1920x1080 at 30FPS; 1280x720 at 30FPS; 640x480 at 30FPS; 320x240 at 30FPS

White Balance: Automatic / Manual

Light: Automatic / Manual

Exposure: Automatic / Manual, Value Adjustable

Direction: Left / Right, Up / Down

Freeze: Support

OSD: English / Chinese / French / Spanish / Japanese / German

Lines: Different colors, 5 horizontal lines, 5 vertical lines, any position

Image Sensor: 51MP CMOS Sensor 1/2.33 Inches

Effective Pixels: 51MP

Pixels Size: 1.335μm x 1.335μm

Frame Rate: 60fps

Definition: Full High Definition

Housing: Metal

Lens: C/CS

Video Format: MOV

Digital Zoom: Support

Brightness Control: Automatic / Manual

Color: R / G / B Adjustable

Film and Records: Support

Cross Cursor: Support multi-color, adjustable size

Horizontal and Vertical Lines:

Support multi-color, 5 horizontal / vertical lines, movable

Different colors, 5 horizontal lines, 5 vertical lines, any position

Memory Card Interface: up to128G (Not Included)

High Definition Multimedia Interface: Standard High Definition Multimedia Interface Output (Type A)

USB Interface: Standard USB2.0 Interface (Type B)

Input Voltage: DC 12V

180X C-MOUNT Lens

Working distance: 95mm

Zoom c-mount Lens

0.5X C-mount adapter

Zoom ratios: 6.5:1

Objective Magnification Power by 0.7 - 4.5X(about 10 - 180X on the display)

Size: 180mm(L) * 50mm(DIA)

Working distance: 11cm

56 LED Adjustable Compact Microscope Ring Light

Provides intense and focused shadow-free illumination

56 bright white LED bulbs

Lighting direction changeable

Variable intensity control

Intense and focused shadow-free illumination

100,000 hours of life

Power input: 100-240V, 50-60HZ, auto switching

Inside diameter of the ring light: 1.0" (27mm)

Overall outside diameter: 1.77" (45mm)

Working Distance: 27mm-45mm

Package Includes:

1 x51MP Microscope Camera

1 x Power Supply

1 x USB Cable

1 x High Definition Multimedia Interface Cable

1 x Software CD

1 x Remote Control (Battery Not Included)

1 x180X Lens

1 x Microscope light source

1 x Camera Stand

1x High temperature resistant working pad

Note:

1. PC Support: Support for Windows XP/7/8/10 system.

2. For USB output, Software operating white balance, exposure and color adjustment can adjusted. （The camera keys are not available Remote control cannot operate ）

3. For high-definition multimedia interface output, the function can adjusted when connected to the monitor.（Camera keys available The remote control can be operated wirelessly）

4. When using USB connection, please make sure that there is no memory card in the camera, memory card storage is just used for high-definition multimedia interface output. The USB output will be stored in the PC.

5. When connecting the camera to the computer, just plug in the USB cable (no need to use power).

Instrumentation

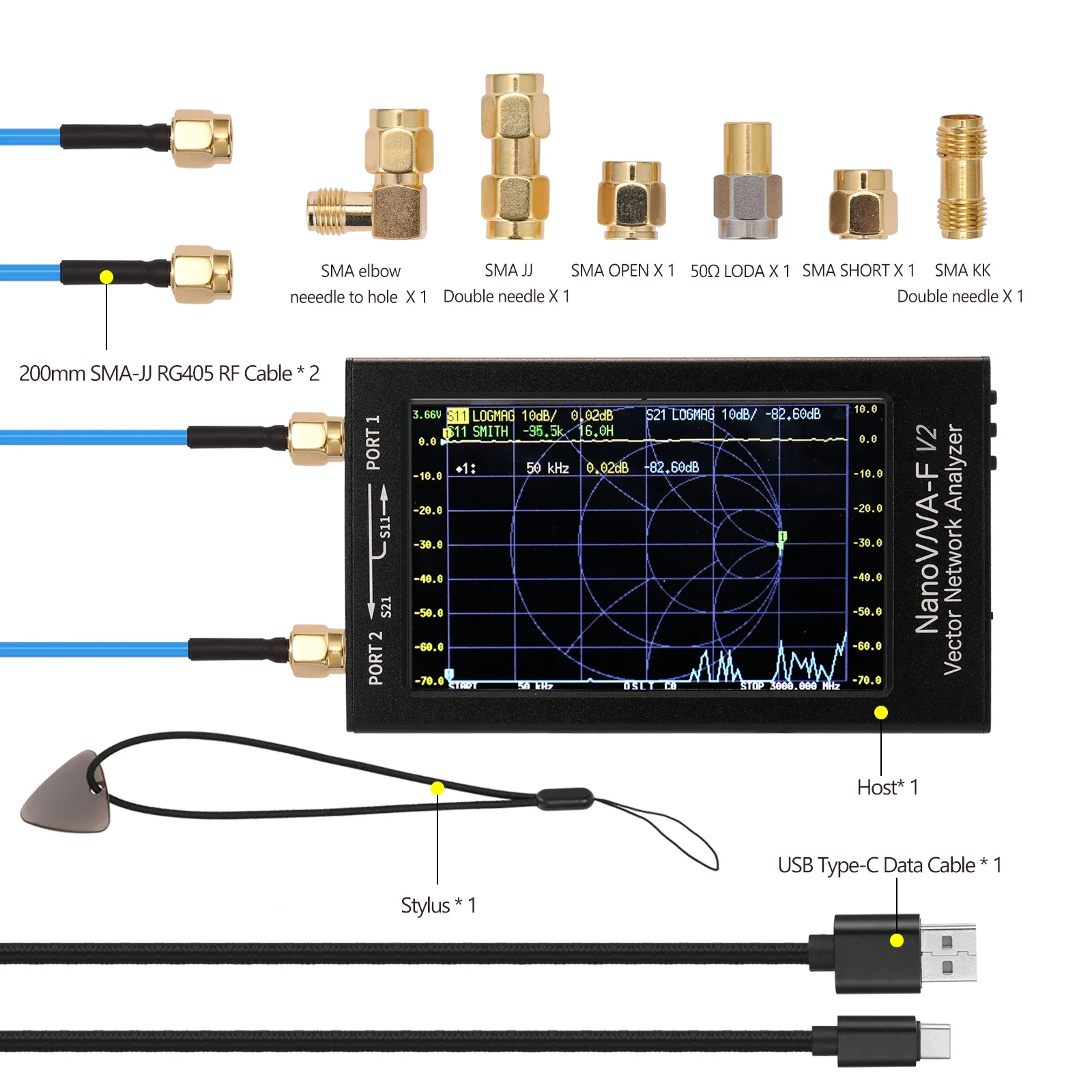

NanoVNA-F V2 4.3 Inch IPS LCD Display Vector Network Analyzer S-A-A-2 Antenna Analyzer Short Wave HF VHF UHF
